MN-E00372EDW-XX_B(1).pdf - 第27页
CS DWG NO. OF REV DESCRIPTION SHEET DESCRIPTION NO. PART NO. PART INFORMATION AND IS NOT TO BE USED OR DO NOT SCALE REPRODUCED WITH OUT PERMISSION OF THIS DRAWING CON TAINS PROPRIETARY ALL CAPACITORS ARE IN µ F ALL RESIS…
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(MI) UPPER GRIPPER ASSY
01-E33272
CS-01-E33272
11
FROM: 01-E33272_C_2012.09.05
C1
C
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 02-E14608 (MI) LE. MAG. SECURE SENSOR 1
2 19-40192-2 E RING (SHAFT DIA 4MM) 2
3 24-01028 LINEAR BUSH LM8LUU 2
4 24-11036 FLANGED BEARING 4X8X3 4
5 26-D39276 UPPER PIVOT 2
6 26-G22381 (MI) MAGAZINE UPPER STOPPER L 1
7 26-G22382 (MI) MAGAZINE UPPER STOPPER R 1
8 26-G22402 (MI) LEADSCREW NUT LOCKER 1
9 75-10044 COMPRESSION SPRING D12500 1
10 75-10144 COMP SPRING 0.8X4.8X14 D21620 2
Assembly View
2
3
4
5
6
7
9
10
8
1
1-14
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

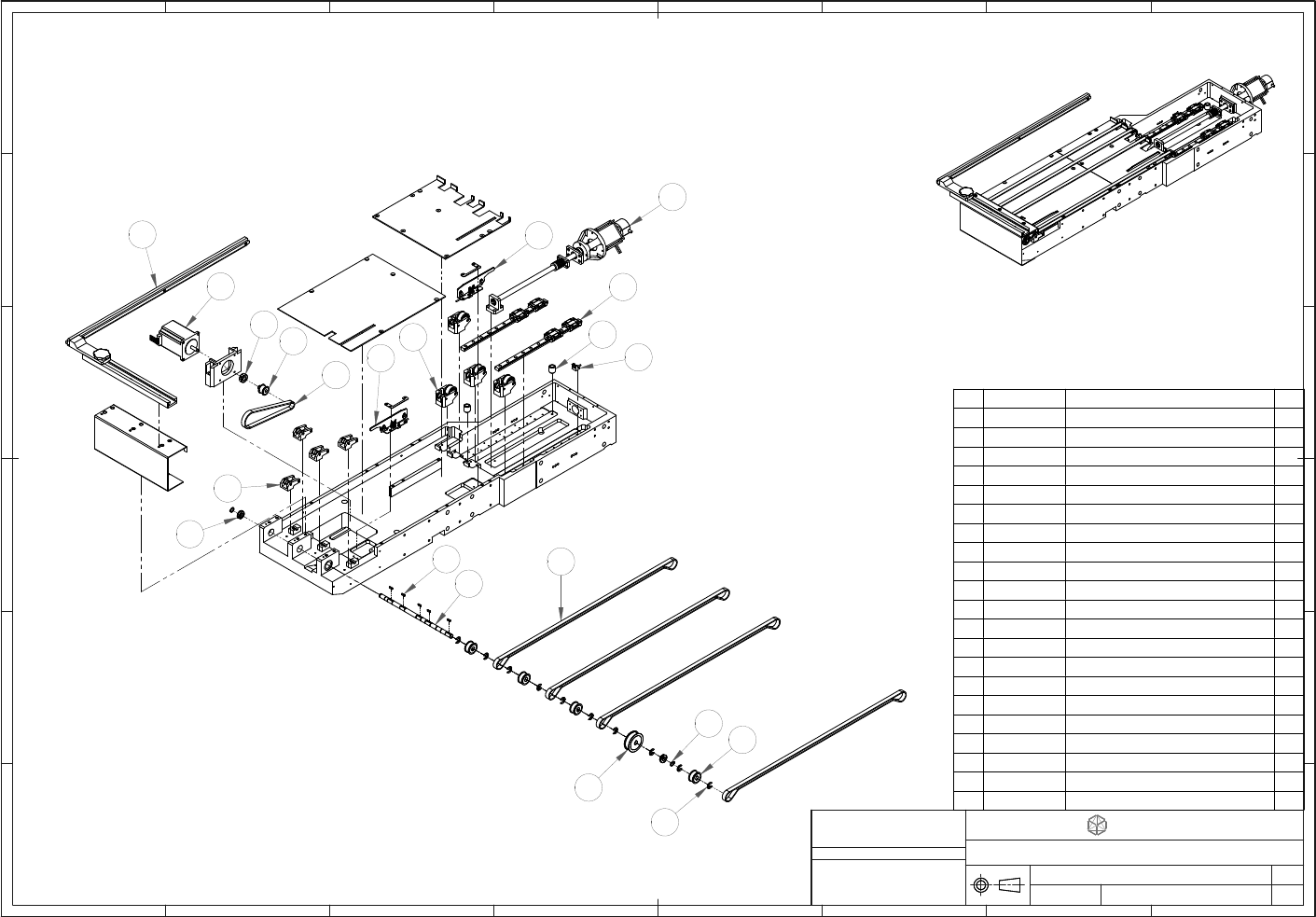

(MI) G2 MAG. CONVEY ASSY.
01-E66724
CS-01-E66724
11
FROM: 01-E66724_B_2015.06.24
B1
B
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
10
13
2
20
17
ITEM PART NO. DESCRIPTION QTY.
1 01-E18570 (MI) CONVEYER DRIVEN PULLEY ASSY 4
2 01-E18573 (MI) CONVEYER MAG. GUIDE ASSY. 1
3 01-E18577 (MI) CONVEYER BELT TENSIONER 4
4 01-E18695 (MI) DRIVING PULLEY-B ASSY, 16T 4
5 01-E33262 (MI) CONVEYER Y DRIVING ASSY. 1
6 02-E01675 (MI) MAG CONVEY MOTOR ASSY 1
7 02-E14603 (MI) MAG Y MOTOR HOME SNR 1
8 19-40196 RETAINING EXT. RING FOR SHAFT 9 2
9 19-40196-1 E-RING FOR GROOVE DIA 8 10
10 23-60005 PARALLEL KEY KESS3-10 5
11 24-11031 FLANGED BEARING DIA9 X DIA 17 X 5 2
12 26-35493 PULLEY CLAMP RING 1
13 26-F74190 (MI) CONVEYER DRIVEN PULLEY-A, 27T 1
14 26-G22272 (MI) DRIVING PULLEY SHAFT 1
15 26-G22277 (MI) ELEVATOR Y STOPPER 2
16 26-G22399 (MI) ELEVATOR Y LM GUIDE 1
17 73-10470 TIMING BELT 10 T5/1100 4
18 73-10476 TIMING BELT T5-10-73 1
19 S01-E47120 (MI) CONVEYER MAG. EXISTING SNR ASSY. 1
20 S01-E47121 (MI) CONVEYER MAG. READY SNR ASSY. 1
21 S27-60344 (IN) DRIVING PULLEY 1
11
16
18
1
19
3
5
6
7
15
21
12
Assembly View
9
14
4
8
1-15
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

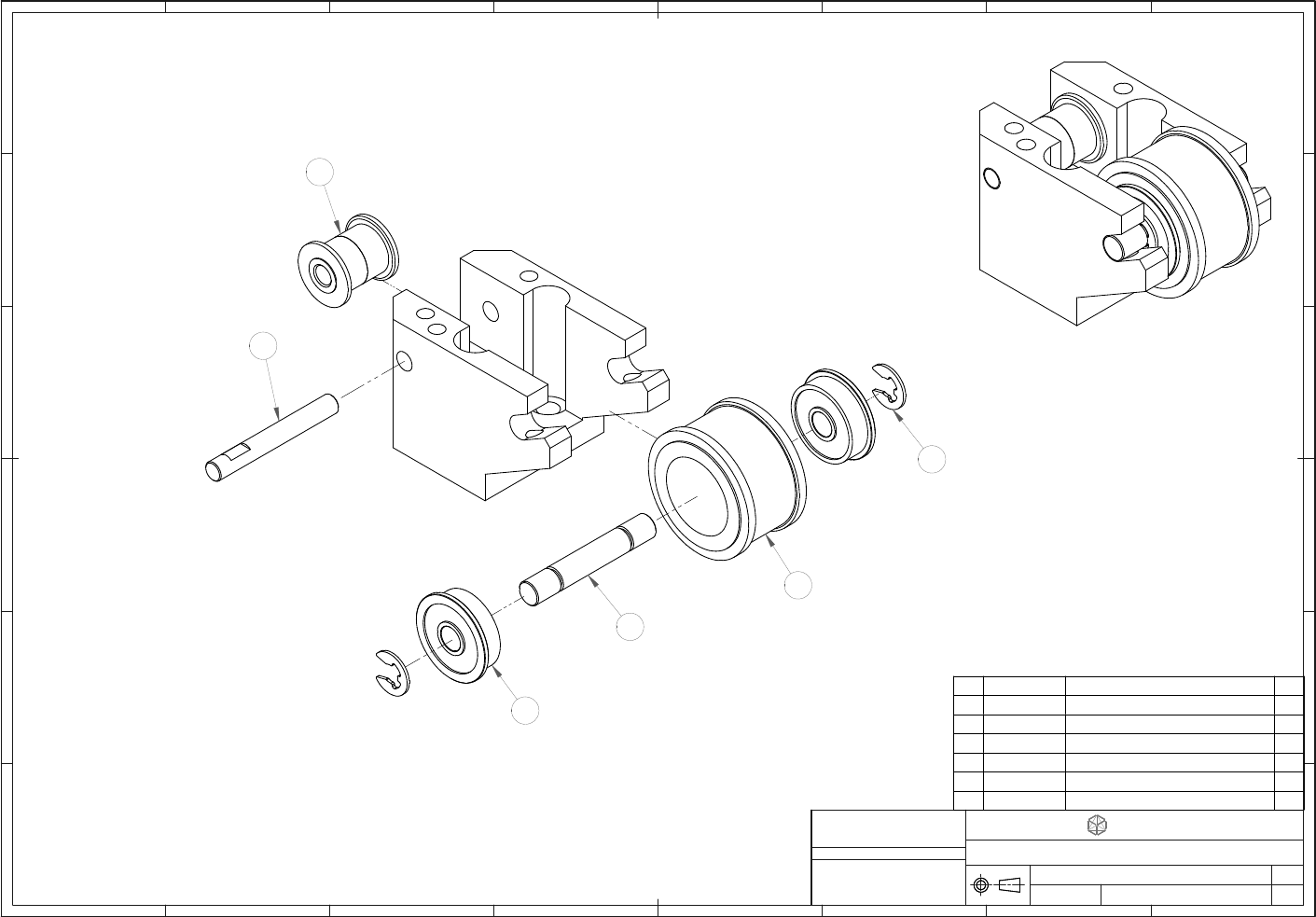

(MI) CONVEYER DRIVEN PULLEY ASSY
01-E18570
CS-01-E18570
11
FROM: 01-E18570_B_2012.06.01
B3
B
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 19-40207 E-RING ETW-4 2
2 24-11100 FLANGE BALL BEARING 5X16X5 2
3 26-F99108 TENSIONER SHAFT 1
4 S26-E05906 (MI) TENSIONER 1
5 S26-E05907 (MI) TENSION PULLEY 16G 1
6 S26-E05909 (MI) PULLEY SHAFT 1
Assembly View
1
2
3
4
5
6
1-16
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
