(MO) MAGAZINE CLAMPER ASSY
01-E33726
CS-01-E33726
11
FROM: 01-E33726_C_2015.03.21
C1
C
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E33729 (MO) UPPER GRIPPER ASSY 1
2 01-E63368 (M0) CLAMPING LEAD SCREW ASSY 1
3 02-E01882 (MO) LE. MAG. CLAMP HOME SENSOR 1
4 02-E01884 (MO) LE. MAG. SECURE SENSOR 1
5 02-E01885 (MO) LE. MAG. EXIST IN CLAMP 1
6 02-E10962 (MO) CLAMP UPPER HOME SENSOR 1
7 02-E14950 (MO) LE. MAG. CLAMP MOTOR 1
8 19-40190 RETAINER RING FOR 8MM SHAFT 1
9 20-75469 SOC SILVER GRIP SET SCREW M3X3 1
10 24-01027 LINEAR BUSH LM10UU 4
11 24-11010 FLANGED BEARING 8 X 16 X 5 2
12 24-11010-2 MINIATURE BALL BEARING 8X16X5 688ZZ 1
13 26-D39255 NUT LOCKER 1
14 26-D49880 BUSHING SPACER 2
15 26-D53765 LOCK NUT M8 1
16 26-D64779 SLIDE SHAFT 8 X 215 (G6) 2
17 26-G22291 (MI) MAGAZINE CLAMPING DRIVING PULLEY 2
18 73-00287 TIMING BELT 85MXL6.4 1
19 75-10044 COMPRESSION SPRING D12500 1
8
10
12
16
17
2
1
4
7
18
11
15
19
3
B
DETAIL B
13
Assembly View
D
DETAIL D
9
14
A
DETAIL A
6
5
14-5
(MO83) OUTPUT MAGAZINE ELEVATOR G2
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

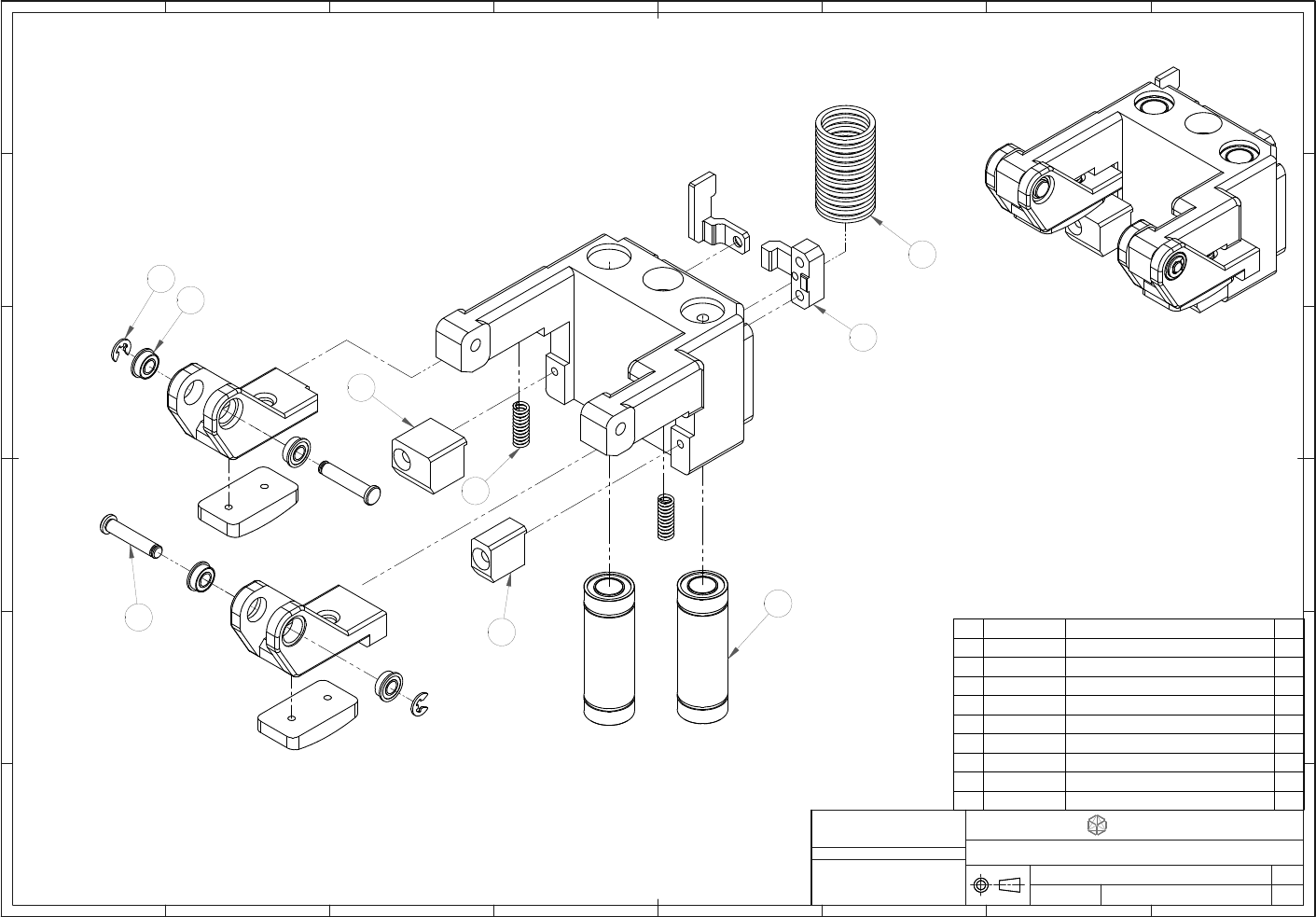

(MO) UPPER GRIPPER ASSY
01-E33729
CS-01-E33729
11
FROM: 01-E33729_A_2013.01.11
A2
A
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 19-40192-2 E RING (SHAFT DIA 4MM) 2
2 24-01028 LINEAR BUSH LM8LUU 2
3 24-11036 FLANGED BEARING 4X8X3 4
4 26-D39276 UPPER PIVOT 2
5 26-G22382 (MI) MAGAZINE UPPER STOPPER R 1
6 26-G22402 (MI) LEADSCREW NUT LOCKER 1
7 26-G24000 (MO) MAGAZINE UPPER STOPPER L 1
8 75-10044 COMPRESSION SPRING D12500 1
9 75-10144 COMP SPRING 0.8X4.8X14 D21620 2
Assembly View
1
2
3
4
5
7
9
8
6
14-6
(MO83) OUTPUT MAGAZINE ELEVATOR G2
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

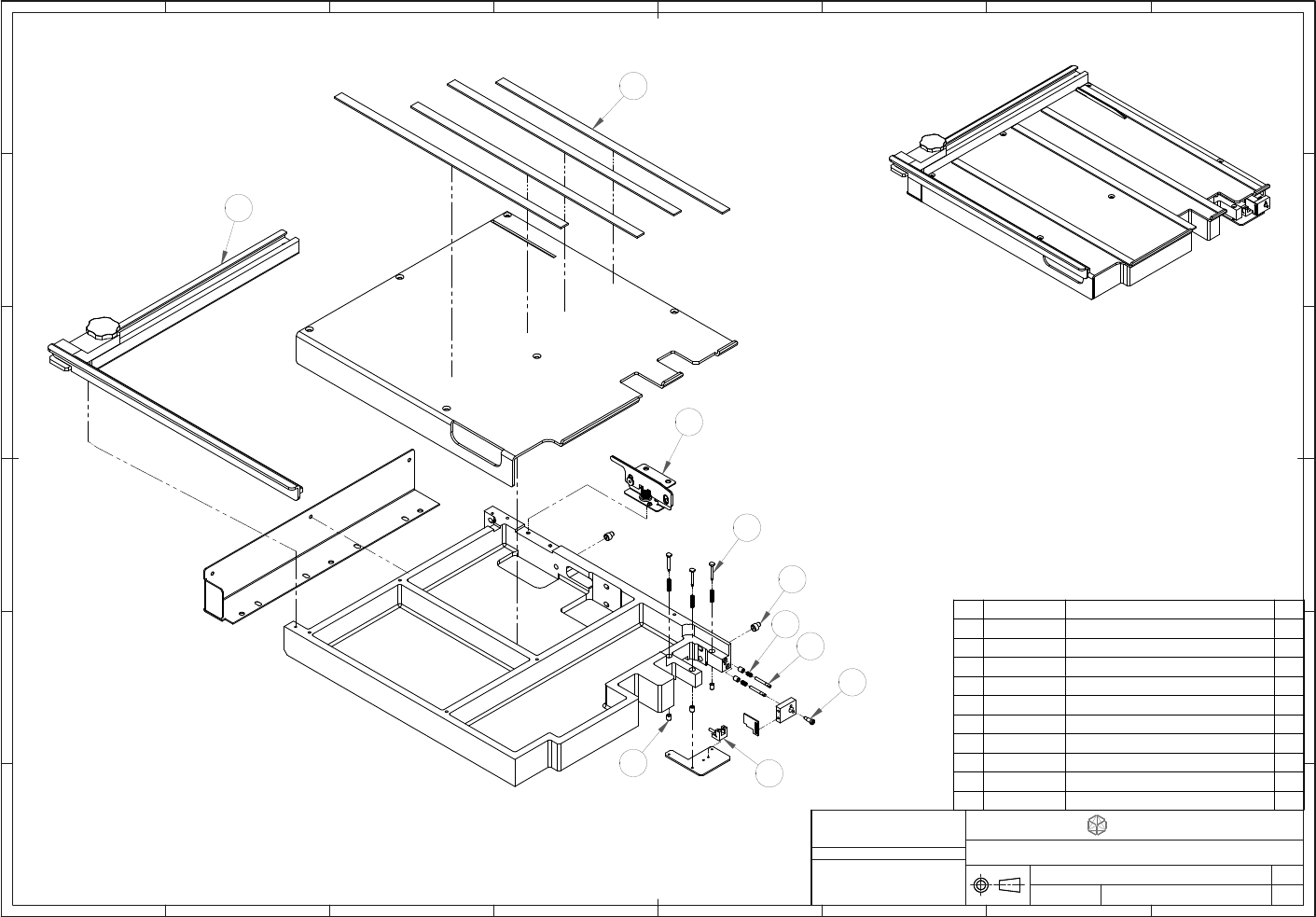

(MO) UPPER PLATFORM ASSY
