A-36
AD8312FC WIRING & M/C CONFIGURATION

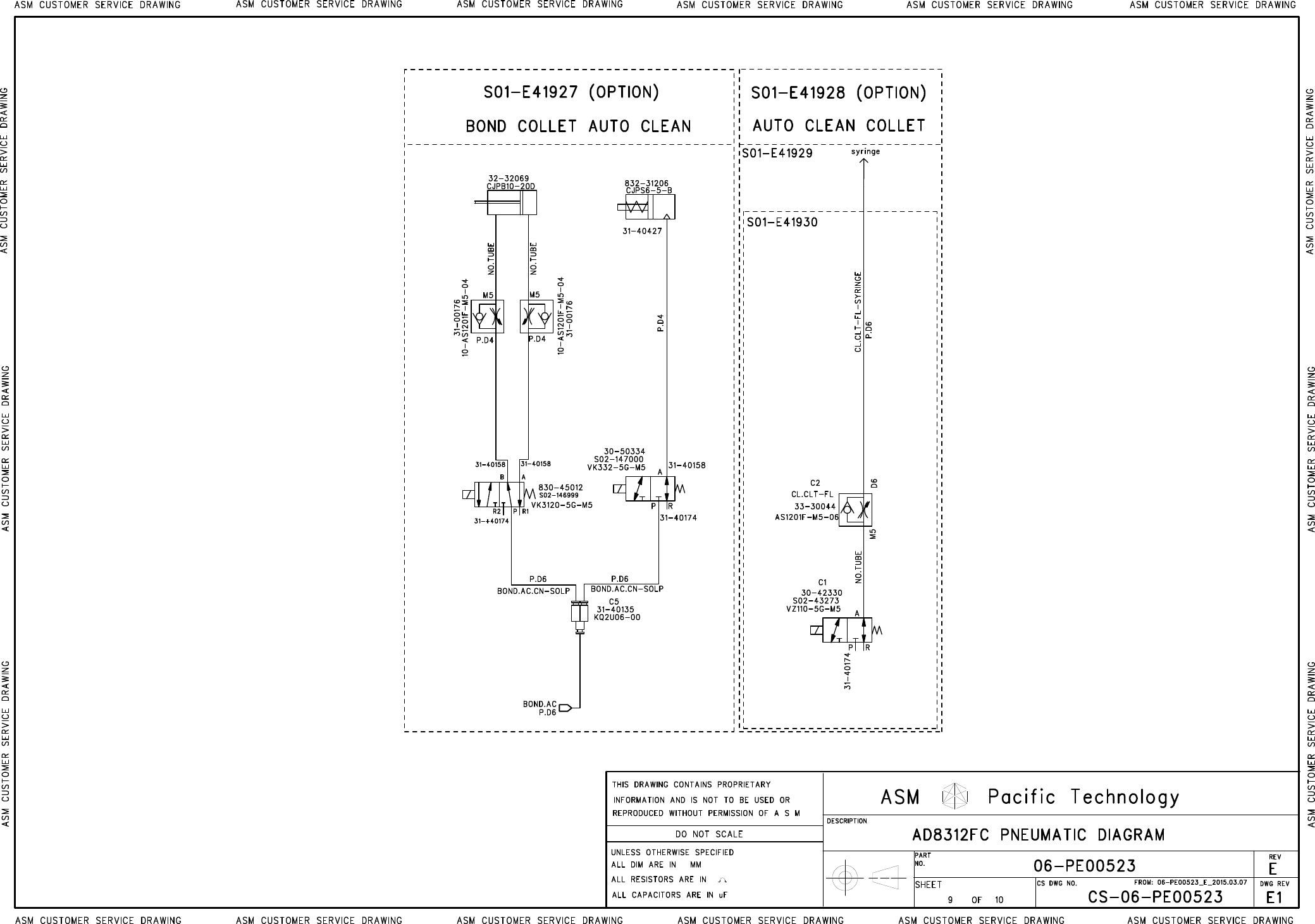

Table of Different Type of Tube
Pressure Air Tube:
Type of Tube P/N Color
P.D12 31- 50033 Translucent Blue
P.D10 31- 50035 Translucent Blue
P.D8 31- 40271 Translucent Blue
P.D6 31- 40234 Translucent Blue
P.D4 31- 50009 Translucent Blue
P.D3 31- 50022 Translucent Blue
Vacuum Tube:
Type of Tube P/N Color
V.D6 31- 50048 Transparency
V.D4 31- 50029 Transparency
V.D3 31- 50016 Transparency
Soft Tube:
V.D3S 31- 40659 Translucent natural
A-37
AD8312FC WIRING & M/C CONFIGURATION
Section B
Part NoDescriptionRevPage
Section BAD8312FC EMA LOCATION MAPPINGB-1
