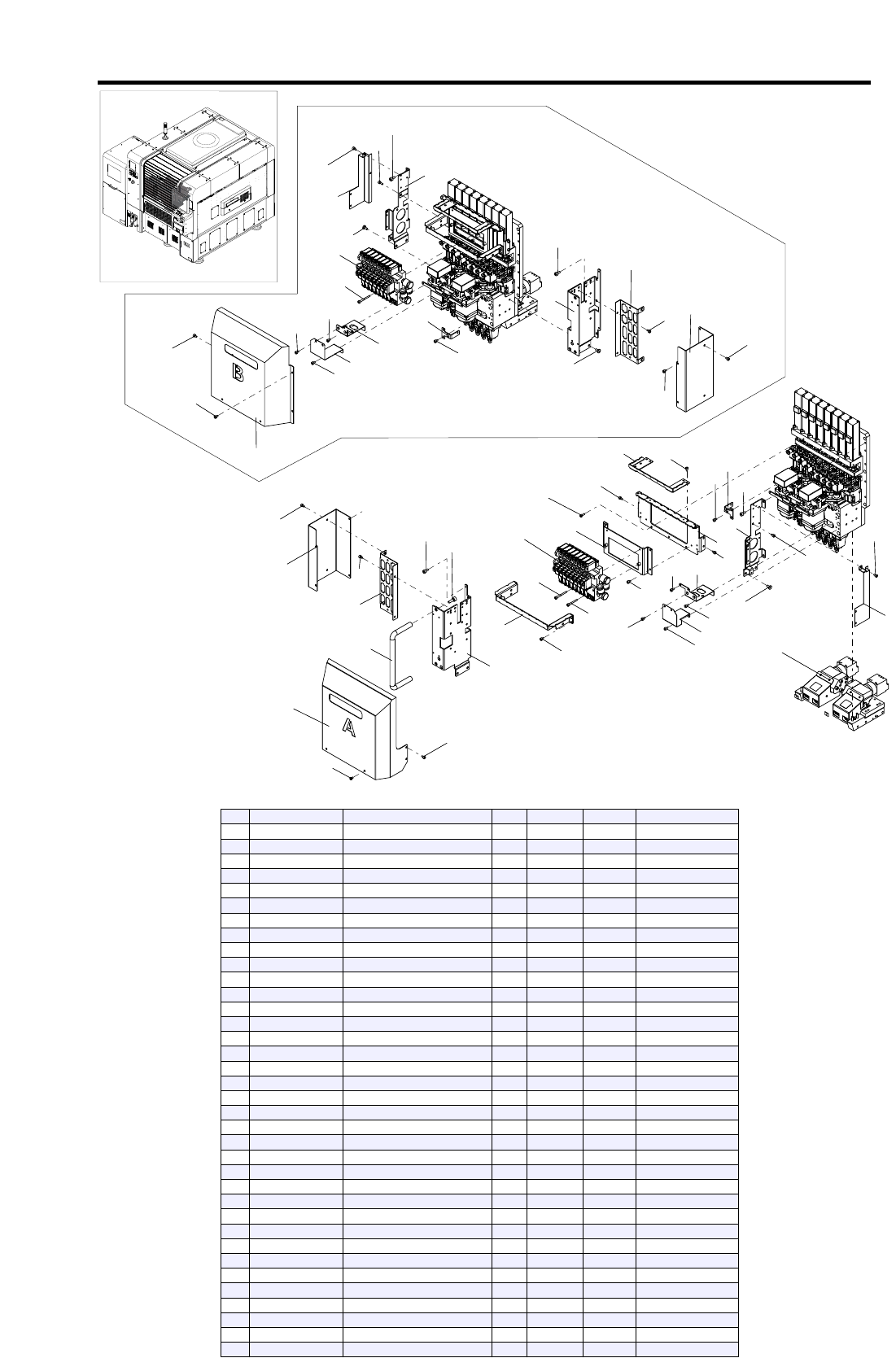

Body Head Assy
Head
KLG-1608
4-1
B Head
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLG-M653M-A0
SENS,HEADA FLOW ASSY
1
2
KLG-M653M-B0
SENS,HEADB FLOW ASSY
1
B Head
3
KLG-M711A-00
PLATE 1, SIDE
1
4
KLG-M711B-00
PLATE 2, SIDE
1
5
KLG-M711C-00
PLATE, BASE
1
6
KLG-M711D-00
PLATE, VALVE
1
7
KLG-M711E-00
PLATE 1, HNS
1
8
KLG-M711F-00
PLATE 2, HNS
1
9
KLG-M711G-00
COVER 1
1
10
KLG-M711H-00
COVER 2
1
11
KLG-M711N-00
PANEL, R
1
12
KLG-M711P-00
PLATE 1, SIDE
1
B Head
13
KLG-M711R-00
PLATE 2, SIDE
1
B Head
14
KLG-M711S-00
COVER 1
1
B Head
15
KLG-M711T-00
COVER 2
1
B Head
16
KLG-M711V-00
PANEL, R
1
B Head
17
KLG-M712B-00
COVER 3
1
18
KLG-M712C-00
COVER A
1
19
KLG-M712D-00
BRKT., COVER A
1
20
KLG-M712E-00
BRKT., COVER B
1
B Head
21
KLG-M712J-00
COVER 3
1
B Head
22
KLG-M712N-00
COVER B
1
B Head
23
KLG-M712V-00
COVER, R
1
24
KLG-M712W-00
COVER, R
1
B Head
25
KLY-M17L3-000
HANDLE
1
26
KLG-M7600-00
FID. CAM. ASSY.
1
27
90990-01J038
BOLT HEX,SOCKET HEAD
6
28
91312-03004
BOLT HEX,SOCKET HEAD
4
29
91312-03005
BOLT HEX,SOCKET HEAD
52
30
91312-03006
BOLT HEX,SOCKET HEAD
2
31
91312-03008
BOLT HEX,SOCKET HEAD
4
32
91312-03025
BOLT HEX,SOCKET HEAD
4
33
91312-03030
BOLT HEX,SOCKET HEAD
4
34
91312-04008
BOLT HEX,SOCKET HEAD
10
35
91312-05014
BOLT HEX,SOCKET HEAD
2
36
98502-03005
SCREW PAN HEAD
3
22
10
3
34
17
16
32
6
27
25
4
28
26
28
26
29
24
25
31
13
32
9
14
33
35
11
37
20
12
8
7
39
38
5
18
30
19
23
2
15
21
1
36
22
10
3
34
17
16
32
6
27
25
4
28
26
28
26
29
24
25
31
13
32
9
14
33
35
11
37
20
12
8
7
39
38
5
18
30
19
23
2
15
21
1
36

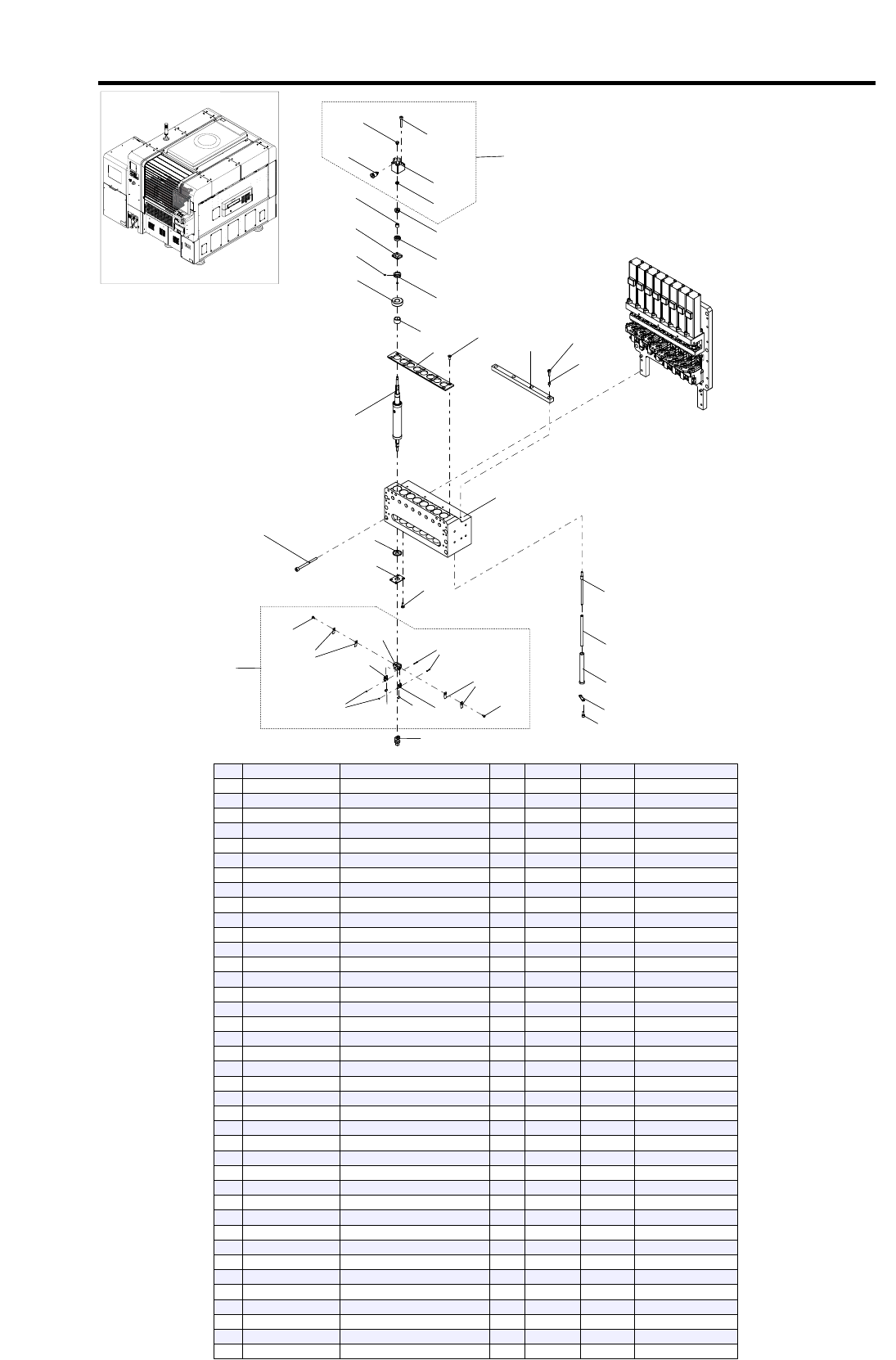

Z Axis 1
Head
KLG-1608
4-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$TSH4-M3M
JOINT
8
2
90990-22J009
PACKING
8
3
KHN-M712B-00
SPRING,RETURN
8
4
KHN-M712K-00
GUIDE, SPRING
8
5
KHN-M7145-00
NUT,SPLINE
8
6
KJX-M77DB-00
NOZZLE 40DB
8
7
KJX-M7C34-00
PULLEY
8
8
KJX-M7C37-00
COLLAR,PULLY
8
9
KJX-M7C4A-00
COLLAR,BEARING
8
10
KJX-M7CD0-00
ROLLER ROCK ASSY.
8
11
KLG-M7102-00
BLOCK, SHAFT
1
12
KLG-M7104-00
PLATE, BEARING TOP
1
13
KLG-M7107-00
PLATE,STOPPER
8
14
KLG-M7109-00
DAMPER, Z DOWN
1
15
KLG-M7116-00
CAP
8
16
KLG-M7118-00
COLLAR, SPRING
8
17
KLG-M711X-00
PLATE, STOPPER
8
18
KLG-M712F-00
PLATE, BRG.
8
19
KLG-M712Y-00
COLLAR
8
20
KLG-M7157-00
BALL SPLINE
8
21
KLG-M715A-00
PLUG
8
22
KLG-M71C0-00
CAP ASSY.
8
23
KLH-M7C2N-001
LOCK NUT,SCREW
8
24
KLH-M7CD3-00
BLOCK,HOLDER
8
25
KV7-M8171-00
PLATE,SPRING
32
26
KV7-M81D1-00
ARM,NOZZLE
16
27
KV7-M81D3-01
PIN
32
28
KV7-M81D4-00
ROLLER
16
29
90440-10J008
CIRCLIP
32
30
90933-02J694
BEARING
8
31
90990-01J043
BOLT HEX,SOCKET HEAD
32
32
90990-01J057
BOLT HEX,SOCKET HEAD
16
33
90990-41J128
COLLAR
4
34
91312-03008
BOLT HEX,SOCKET HEAD
16
35
91312-03010
BOLT HEX,SOCKET HEAD
4
36
91312-03020
BOLT HEX,SOCKET HEAD
32
37
91312-04050
BOLT HEX,SOCKET HEAD
6
38
92A08-03303
SCREW SET
16
39
98702-03008
SCREW,FLAT HEAD
10
1
32
31
9
3
25
15
24
8
28
4
30
25
5
6
25
7
14
7
6
25
25
5
4
11
25
10
27
13
33
2
12
29
16
17
18
19
20
21
26
23
22
26
1
32
31
9
3
25
15
24
8
28
4
30
25
5
6
25
7
14
7
6
25
25
5
4
11
25
10
27
13
33
2
12
29
16
17
18
19
20
21
26
23
22
26
Z Axis 2
Head
KLG-1608
4-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLG-M7101-00
PLATE, HEAD
1
2
KLG-M7103-00
HOLDER, BRG. Z
1
3
KLG-M7108-00
DAMPER, Z UP
1
4
KLG-M7112-00
PLATE 1, CONNECT
2
5
KLG-M7113-00
PLATE 2, CONNECT
2
6
KLG-M7114-00
PLATE 3, CONNECT
2
7
KLG-M7115-00
PLATE 4, CONNECT
2
8
KLG-M7119-00
BLOCK, SCREW
8
9
KLH-M7C22-A0
GUIDE
8
10
KLH-M7C2A-00
BEARING
8
11
KLH-M7C2G-00
PLATE,BEARING
8
12
KLH-M7C2M-00
COUPLING
8
13
KLH-M7C2N-00
LOCK NUT,SCREW
8
14
KLY-M7T1G-00
BALL SCREW
8
15
90990-41J128
COLLAR
9
16
90K29-0S2303
AC SERVO MOTOR
1
17
90K29-0S2304
AC SERVO MOTOR
1
18
90K29-0S2305
AC SERVO MOTOR
1
19
90K29-0S2306
AC SERVO MOTOR
1
20
90K29-0S2307
AC SERVO MOTOR
1
21
90K29-0S2308
AC SERVO MOTOR
1
22
90K29-0S2309
AC SERVO MOTOR
1
23
90K29-0S2310
AC SERVO MOTOR
1
24
91312-03008
BOLT HEX,SOCKET HEAD
9
25
91312-03010
BOLT HEX,SOCKET HEAD
72
26
91312-03012
BOLT HEX,SOCKET HEAD
16
27
91312-03014
BOLT HEX,SOCKET HEAD
32
28
91312-03016
BOLT HEX,SOCKET HEAD
32
29
91312-04012
BOLT HEX,SOCKET HEAD
3
30
99009-06800
CIRCLIP
8
31
99480-03008
PIN,PARALLEL
9
32
99480-04008
PIN,PARALLEL
4
33
90990-02J004
SCREW, SET
16
