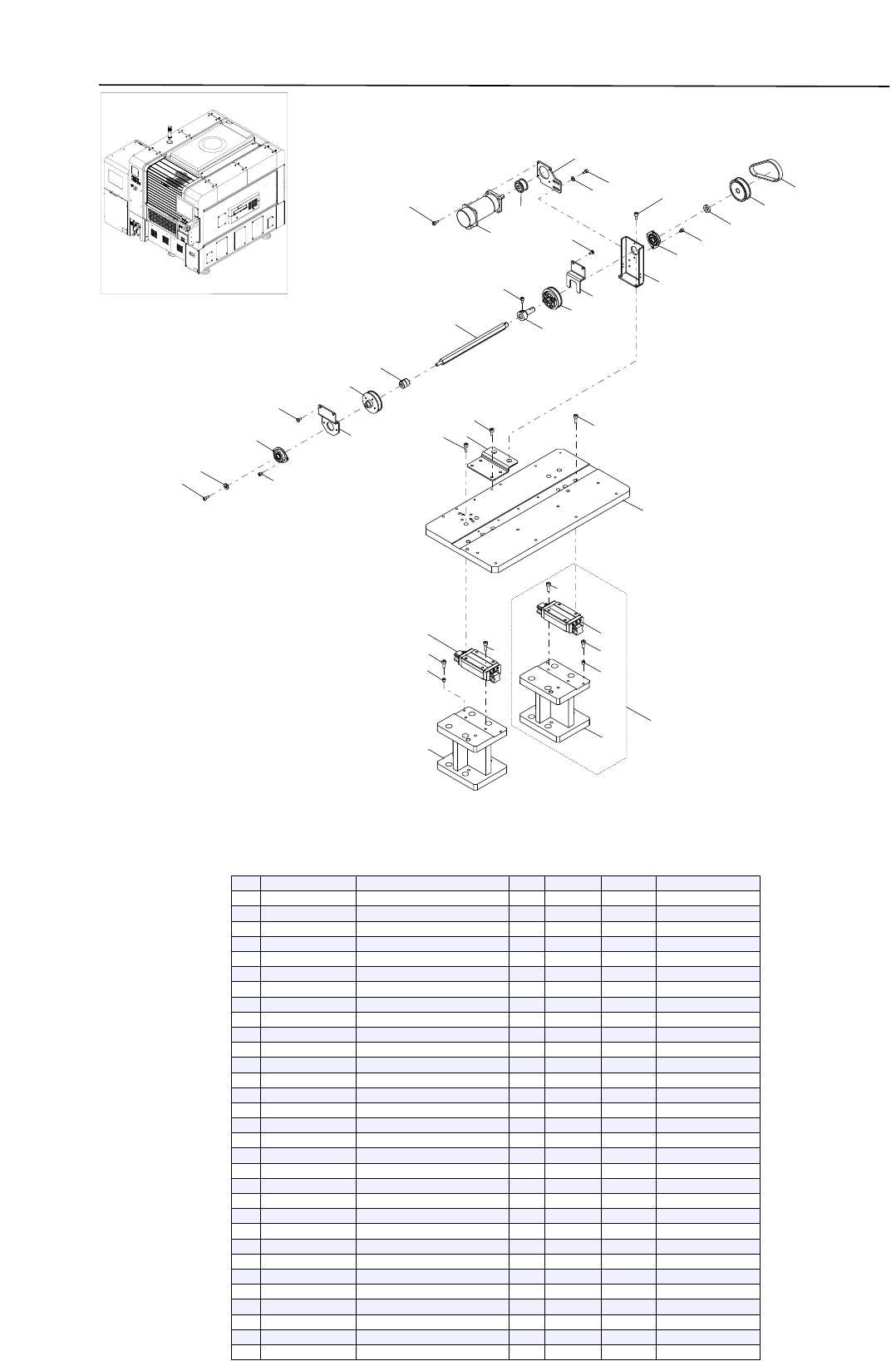

Body / Sensor
Conveyor
KLG-1608
6-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLG-M653H-00
SENS,CONV AMP ASSY
1
ENTRANCE STOP
2
KLG-M653H-10
SENS,CONV AMP ASSY
1
ENTRANCE WORKOUT
3
KLG-M653H-20
SENS,CONV AMP ASSY
1
STAGE B SLOW
4
KLG-M653H-30
SENS,CONV AMP ASSY
1
STAGE B STOP
5
KLG-M653H-40
SENS,CONV AMP ASSY
1
STAGE B WORKOUT
6
KLG-M653H-50
SENS,CONV AMP ASSY
1
CENTER WAIT SLOW
7
KLG-M653H-60
SENS,CONV AMP ASSY
1
CENTER WAIT WORKOUT
8
KLG-M653H-70
SENS,CONV AMP ASSY
1
STAGE A SLOW
9
KLG-M653H-80
SENS,CONV AMP ASSY
1
STAGE A STOP
10
KLG-M653H-90
SENS,CONV AMP ASSY
1
STAGE A WORKOUT
11
KLG-M653H-A0
SENS,CONV AMP ASSY
1
EXIT SLOW
12
KLG-M91B0-00
COVEYOR BASE ASSY.
1
13
KLG-M91K1-00
BELT, 2547-3GT-9
1
14
KLG-M91N4-00
PLATE, HNS. R
1
15
KLG-M91N5-00
PLATE, HNS. L
1
16
KLG-M91N6-00
PLATE, HNS.
3
17
KLG-M91NA-00
COVER 1
2
18
KLG-M91ND-00
COVER 2
3
19
KLG-M91P0-00
FRONT CONVEYOR ASSY.
1
Cf. previous page
20
KLG-M91R0-00
REAR CONVEYOR ASSY.
1
Cf. previous page
21
KLG-M91R7-00
PLATE, DUCT
2
22
KLG-M91R8-00
COVER, BELT
1
23
KLG-M91R9-00
CABLE DUCT
1
24
KLG-M91RA-00
BRACKET, DUCT 1
1
25
KLG-M91RB-00
BRACKET, DUCT 2
1
26
KLG-M91RC-00
STAY, REAR
1
27
KLG-M91RE-00
TAPE, INSIDE
1
28
KLG-M91RF-00
TAPE, OUTSIDE
1
29
KLG-M91RG-00
PLATE, EXIT SENSOR
1
30
KLG-M91T2-00
CV MOTOR ASSY. 2
1
31
KLG-M91T3-00
CV MOTOR ASSY. 3
1
32
KLG-M91T4-00
CV MOTOR ASSY. 4
1
33
90990-01J039
BOLT HEX,SOCKET HEAD
10
34
91312-03006
BOLT HEX,SOCKET HEAD
12
35
91312-03008
BOLT HEX,SOCKET HEAD
2
36
91312-04008
BOLT HEX,SOCKET HEAD
7
37
91312-05010
BOLT HEX,SOCKET HEAD
9
38
98702-03005
SCREW,FLAT HEAD
8
27
21
25
33
12
2
30
7
28
35
23
13
5
11
20
6
31
36
15
3
29
17
30
36
18
9
32
36
26
16
32
8
24
7
14
31
1
19
10
27
4
22
34
1
26
19
21
27
27
21
25
33
12
2
30
7
28
35
23
13
5
11
20
6
31
36
15
3
29
17
30
36
18
9
32
36
26
16
32
8
24
7
14
31
1
19
10
27
4
22
34
1
26
19
21
27

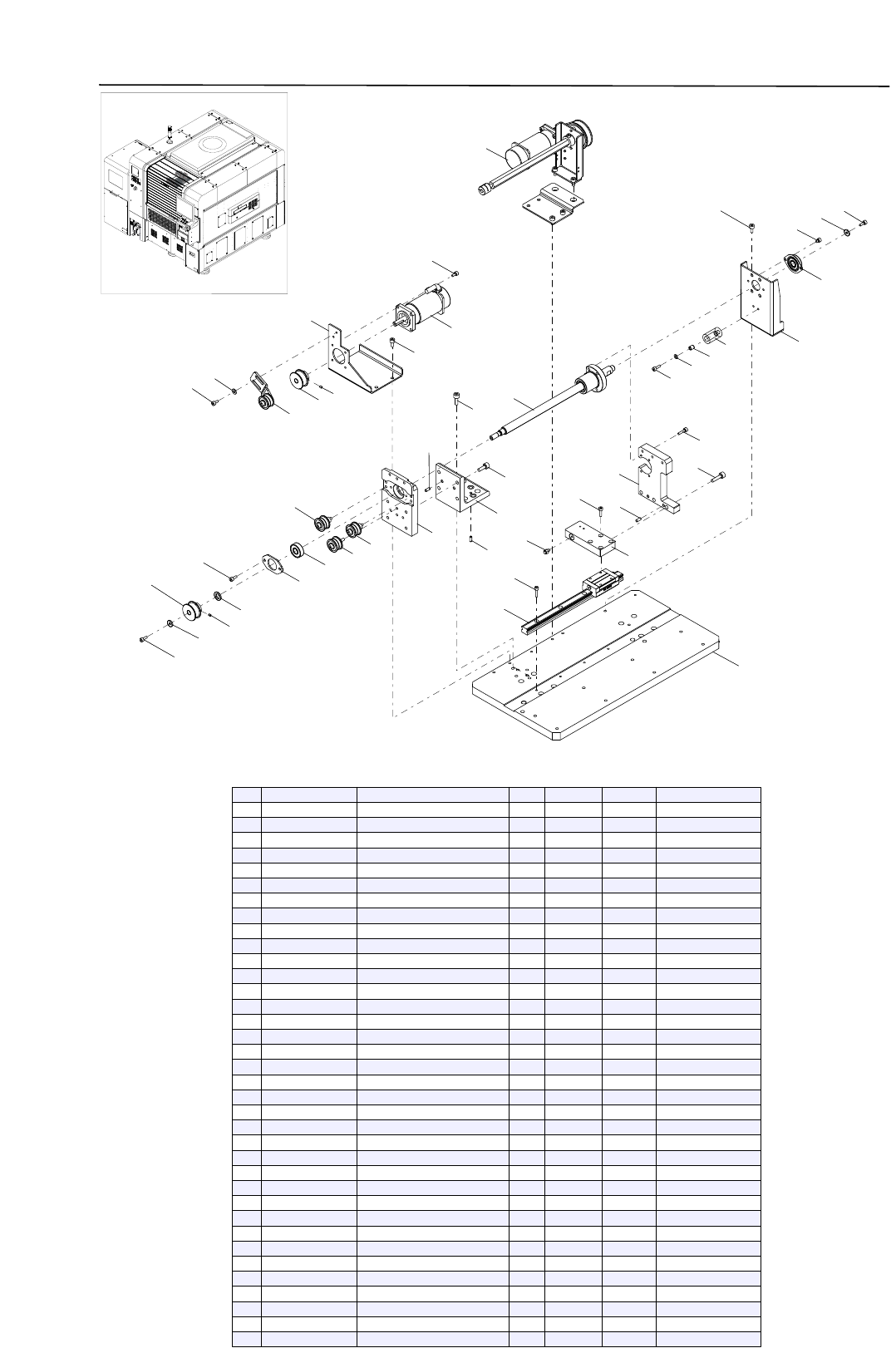

W Axis Assy L.
