SOKO 2 Retrofit instructions SOKO Sonic Buzzer SIPLACE S / F / C-series 04/2006 Edition 29 2 Cancel unus ed MA t ype S-20 / S-23 / F4 / F5 / F5 HM / CF / CS
2 Retrofit instructions SOKO Sonic Buzzer SIPLACE S / F / C-series SOKO
04/2006 Edition
28
: Unplug the yellow wire from X2ka:3 or X2kc:3 and plug in to the terminal block X11 to the op-
posite side of the yellow wire.
: Take the free yellow wire from the terminal block X11 and plug in to X2ka:3 or X2kc:3.
: Unplug the violet wire from X1ka:5 or X2kd:5 and plug in to the terminal block X11 to the op-
posite side of the blue wire.
: Take the free blue wire from the terminal block X11 and plug in to X1ka:5 or X2kd:5.
: Plug in the pink wire to X3ka:P+ or X2kc:P+.
: Plug in the grey wire to X4ka:M- or X2kc:M-.
2
2
2
Wire colour
Connectors of control unit Terminal designati-
on for S27HM
Terminal designation for S20/
S23/F5HM/F5/F4/CF/CS
Pink
P+ (+24V) X3ka:P+ X2kc:P+
Grey
(Ground) (0V) X4ka:M- X2kc:M-
White
I1 (Signal light right) X2ka:1 X2kc:1
Yellow
I2 (Signal light left) X2ka:3 X2kc:3
Blue
I3 (Reset or Stop button) X1ka:5 X2kd:5
SOKO 2 Retrofit instructions SOKO Sonic Buzzer SIPLACE S / F / C-series
04/2006 Edition
29
2

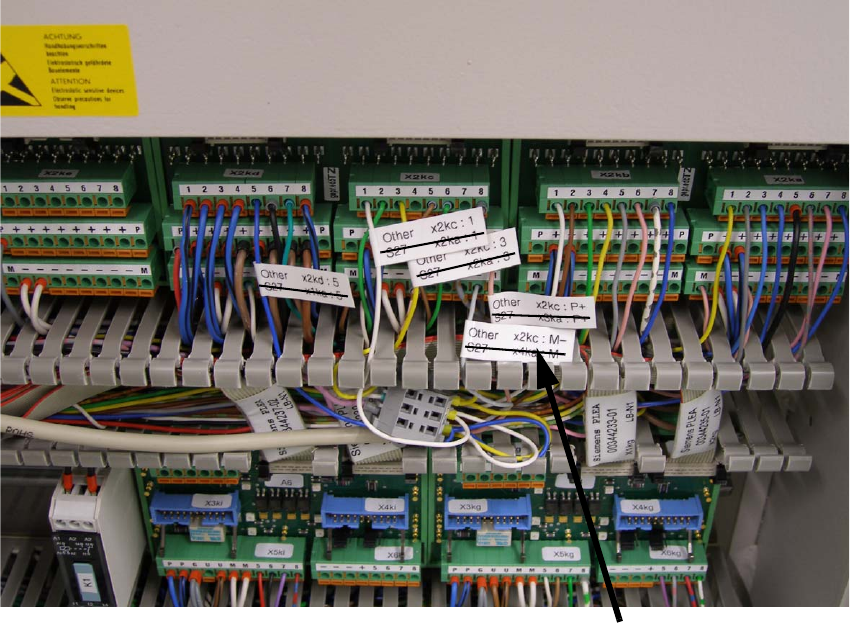

Cancel unused MA type
S-20 / S-23 / F4 / F5 / F5 HM / CF / CS
2 Retrofit instructions SOKO Sonic Buzzer SIPLACE S / F / C-series SOKO
04/2006 Edition
30
2
2
S-20 / S-23 / F4 / F5 / F5 HM / CF / CS
S-27 HM
Cancel unused MA type
