00195342-01_InstallationGuide_SiPro_4.1.pdf - 第24页
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro Edition 12/2006 US 22 Ste p 2 In the "Select languages" dialog bo x, select the languages you want to install to make them …
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 12/2006 US
21
4.2.2 Setup Type – SIPLACE Pro Complete System
This setup type contains all SIPLACE Pro components for operating the system on a single com-
puter. Setup detects if SQL Server or MSDE (Microsoft Data Desktop Engine) has already been
installed. 4
4
Fig. 4 - 8 Components – SIPLACE Pro Complete Installation
Select this type to install all SIPLACE Pro system components (Programming system, LC GUI, LC
Server) on one computer as described here. Even if you choose this Setup type, it is possible to
integrate further clients on other computers. 4
Step 1
Æ Run through the steps in ”Starting installation – first steps” from page 13.
Æ Select the SIPLACE Pro complete system setup type
Æ Click Next.
Setup
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 12/2006 US
22
Step 2
In the "Select languages" dialog box, select the languages you want to install to make them avail-
able for the applications. In addition, select which language should be active first. 4
You can switch the active language subsequently in SIPLACE Pro Desk and Line Control to any
other language installed. 4
4
Fig. 4 - 9 "Select Languages" dialog box
Æ Double-click the languages in the left-hand list Available languages to select the ones which
should be installed.
Æ In the right-hand list Selected languages, select the check box of the language with which
the installed applications like SIPLACE Pro Desk should start first.
Æ Click Next.
Hint
If you select the wrong language by mistake, you can remove it by double-clicking in the right-hand
list. 4
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 12/2006 US
23
Note
English and German are always installed. You cannot de-select either language. Additional
languages are listed as "available" only if the language pack for this version of SIPLACE Pro has
been installed. For more details please refer to Chapter 5 Installation of SIPLACE Pro Language
Pack. 4
Step 3

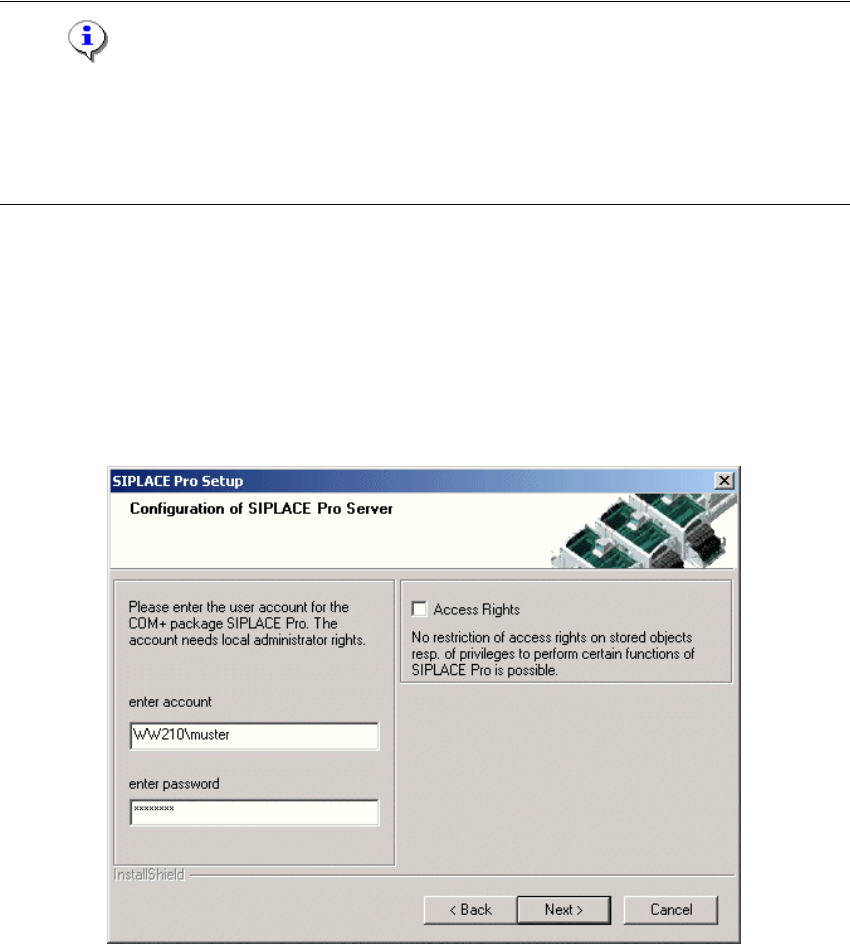

The "Configuration of SIPLACE Pro Server" dialog box specifies under which Windows user
account the server component of SIPLACE Pro should run. The current domain appears as the
default value in the account text box. This means it is usually sufficient just to add the account
name and the password. However, if this account is local, be sure to change the domain specifi-
cation appropriately. 4
4
Fig. 4 - 10 "Configuration of SIPLACE Pro" dialog box
Æ Enter the Account and Password for the Windows user in the dialog box.
Æ For new installations and upgrades, the option Access rights is deactivated by default. This
means there is no restriction of access rights on stored objects. We recommend you leave this
deactivated until you have created Users, Groups and set Privileges & Permissions in
SIPLACE Pro Desk. After having done that you may activate the option "Access Rights" by
modifying the option "Security On/Off" in the dialog "Settings" of SIPLACE Pro Desk.
Æ Click Next.
