Installation manual SIPLACE Pro 4 Installati on of SIPLACE Pro and possible Setup Types Edition 12/2006 US 27 Note Y ou can specify a differ ent folder for each of the da t abase files. Indeed, having the files on dif fe…

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 12/2006 US

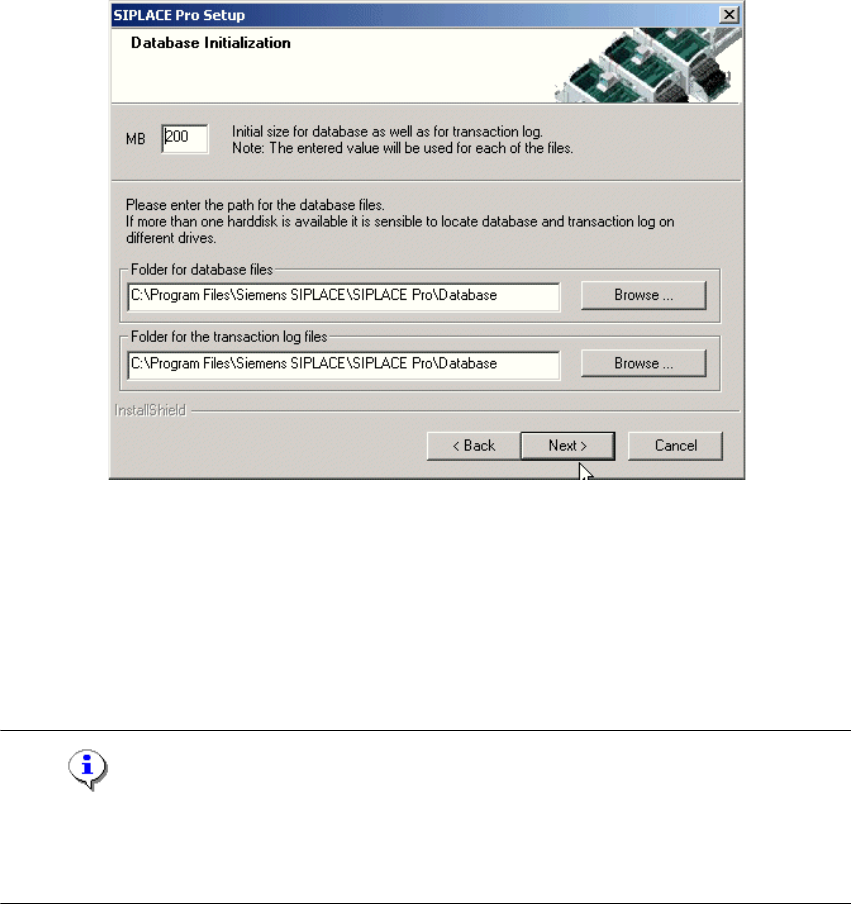

Fig. 4 - 13 "Database initialization" dialog box

The figure you enter in the MB text box defines the size of the SIPLACE Pro database files

(SIPLACE Pro Data.dat and SIPLACE Pro Log.dat) which are to be created during the

installation. 4

Æ Confirm the default value or

Æ enter the size you want in the MB text box.

Note

The specified size is only an initial value. The database will grow automatically as required.

However, only intervention by the database administrator is capable of freeing up unused disk

space. 4

Æ In the "database files" field, enter the directory in which the SIPLACE Pro Data.dat file is to be

created.

Æ In the transaction log files field, enter the name of the directory in which the

SIPLACE Pro Log.dat database file is to be created.

Æ Click Next.

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Edition 12/2006 US

Note

You can specify a different folder for each of the database files. Indeed, having the files on different

hard disks can improve disk access performance. 4

Step 6

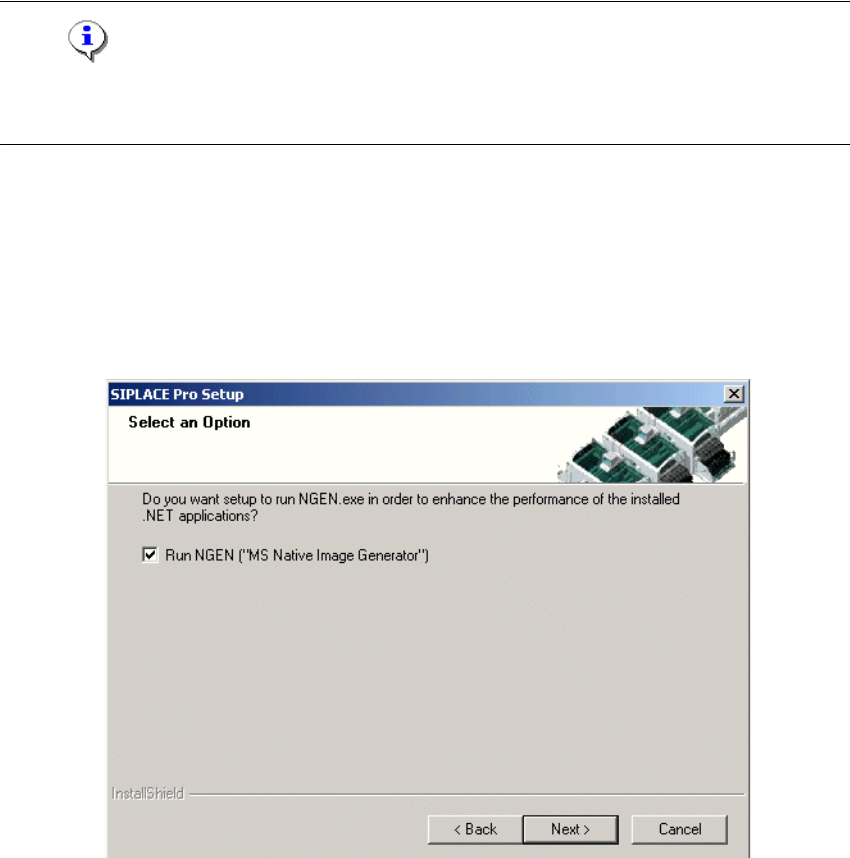

In the "Select an Option" dialog box the Native Image Generator (NGEN) may be configured. By

default this option is activated. In case the Native Image Generator is activated, this tool performs

some time-consuming optimization steps during installation. This results later on in much higher

performance each time SIPLACE Pro applications (Desk, LC GUI, LC Server) are started 4

Fig. 4 - 14 Native Image Generator setup

Æ Click Next to start the setup.

Step 7

Æ If you wish for Error Reports to be sent automatically to Siemens, fill in your email address, Mail

Server name and choose "Configure mailing of reports". The mail server field is preset to a

valid name as found in your domain if you have chosen "Configure mailing of reports".

Æ If you do not wish for any Error reports to be sent make sure that "Configure mailing of re-

ports" is deactivated.

Æ Click Next.

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 12/2006 US

Fig. 4 - 15 Error Reporting

If mailing is configured, the SIPLACE Pro Error Reporting Tool will create diagnostic reports and

will mail these reports to Siemens. 4

The settings are used to configure the SIPLACE Pro Error Reporting Tool. Depending on your set-

tings these reports are automatically mailed to Siemens support personnel or are available for you

to be sent later on. 4

Step 8

The "Start Copying Files" dialog box gives you a last chance to check the information you have

entered during the previous steps. 4

Fig. 4 - 16 The "Start Copying Files" dialog box

Æ Click Next if you accept all the information entered so far.
