Installation manual SIPLACE Pro 4 Installati on of SIPLACE Pro and possible Setup Types Edition 12/2006 US 31 4.2.3 Setup T ype – SIPLACE Pro Desk This setup type only contains a "Client" portion of SIPLACE Pro…
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 12/2006 US
30
4
Fig. 4 - 18 Finish licence key
– Click Finish to apply the licence(s) (Step 2 of 2). All licensed modules are listed.
4
Fig. 4 - 19 List licence key C
– Click Close to finish.
Step 10
– The "Setup Complete" window confirms that the installation has been completed successfully.
– If you are prompted to reboot the computer, be sure the CD is still in the drive and leave it there
until the computer has completely rebooted.
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 12/2006 US
31
4.2.3 Setup Type – SIPLACE Pro Desk
This setup type only contains a "Client" portion of SIPLACE Pro, i.e. the user interface. The
SIPLACE Pro Desk setup requires that the SIPLACE Pro server has already been installed either
locally or remotely. The SIPLACE Pro Desk setup type is used in a distributed system in order to
create additional programming desks which are only operational together with the server. 4
4
Fig. 4 - 20 Components – SIPLACE Pro Desk (sample configuration)
Step 1
Æ Run through the steps in ”Starting installation – first steps” from page 13.
Æ Select the SIPLACE Pro Desk setup type.
Æ Click Next.
MS SQL Server with
SIPLACE Pro Server and
Database pre-installed
SIPLACE Pro
Desk
SIPLACE Pro
Interface
Setup
COM+
Resource
Manager
COM+
Line computer
master data
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 12/2006 US
32
Step 2
– You are prompted to enter the name of the computer where SIPLACE Pro Server is running.
. 4

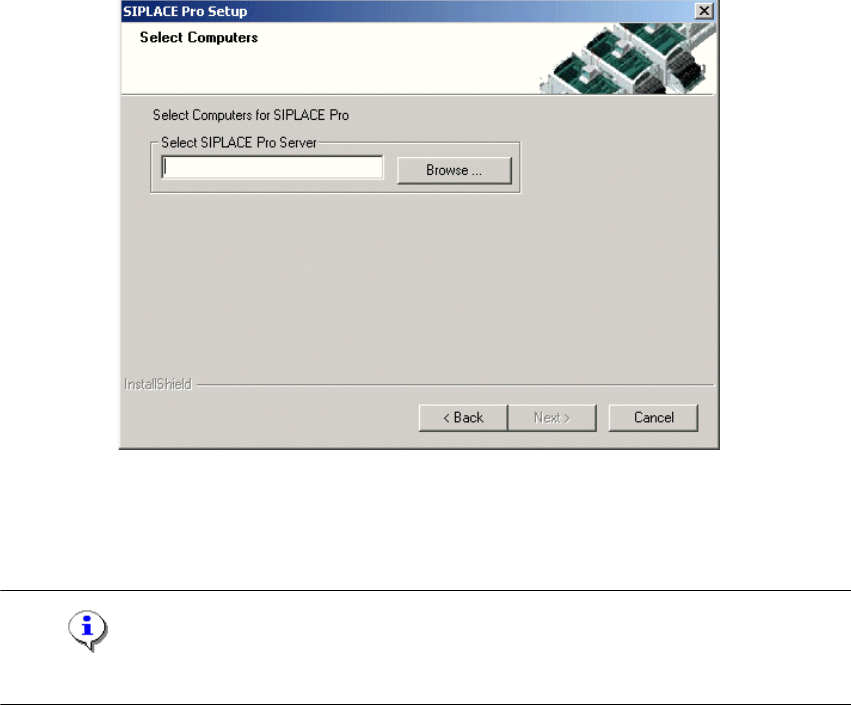

Fig. 4 - 21 "Select Computers" dialog box
Æ You can type in a name or click the Browse button to open a dialog box in which you can select
another computer name.
Note
SIPLACE Pro Server must already be installed on the computer! 4
Step 3
The "Start Copying Files" dialog box gives you a last chance to check the information you have
entered during the previous steps. 4
Æ Click Next if you accept all the information entered so far.
Æ If you want to alter one or more details, click the Back button until you get to the dialog box in
question.
Æ There, input your changes and click Next to continue as usual.
– The installation routine is now started.
– The "Setup Complete" window confirms that the installation has been completed successfully.
