9 Tg0754-PM-SO 0206-001 4. Scope of Actions 4. Scope of Actions (1) When a component recognition error , etc., occurs and the picked up component is unplaceable, the component discharge operation starts. (2) According to…

8 Tg0754-PM-SO0206-001

3.2 Installation Position

Recycle Conveyor B

Component Storage Box

(Small) B

Multi-Layer Tray Feeder

(Option)

(Front Side of Machine)

Fig. 2 Top View

9 Tg0754-PM-SO0206-001

4. Scope of Actions

(1) When a component recognition error, etc., occurs and the

picked up component is unplaceable, the component discharge

operation starts.

(2) According to the component library data, the placement head is

moved on the recycle conveyor or component storage box

(small), and it releases the picked up component. After that, the

placement head returns to normal placement operation.

(3) The component discharge operation is started at the specified

component discharge position.

• When the component is discharged on the recycle conveyor,

proceed to step (4).

• When the component is discharged in the component storage

box (small), the component discharge operation is completed.

(4) The recycle conveyor moves by 1 pitch so that the component

discharged on the conveyor is not piled on top of the previously

discharged component.

(a) The discharge position varies according to the instruc-

tion in "Component Discharge Position" in the compo-

nent library.

When [Recycle Conveyor] is selected, all components

are discharged on the recycle conveyor.

When [Auto] is selected, only components of 10 × 10

mm or less are discharged in the component storage

box (small), and other components are discharged on

the recycle conveyor.

(b) A single pitch of the recycle conveyor for transferring

the component automatically varies, depending on the

component size X, Y, in component library.

Note

10 Tg0754-PM-SO0206-001

5. Preparation before Operation

5.1 Component Library Data

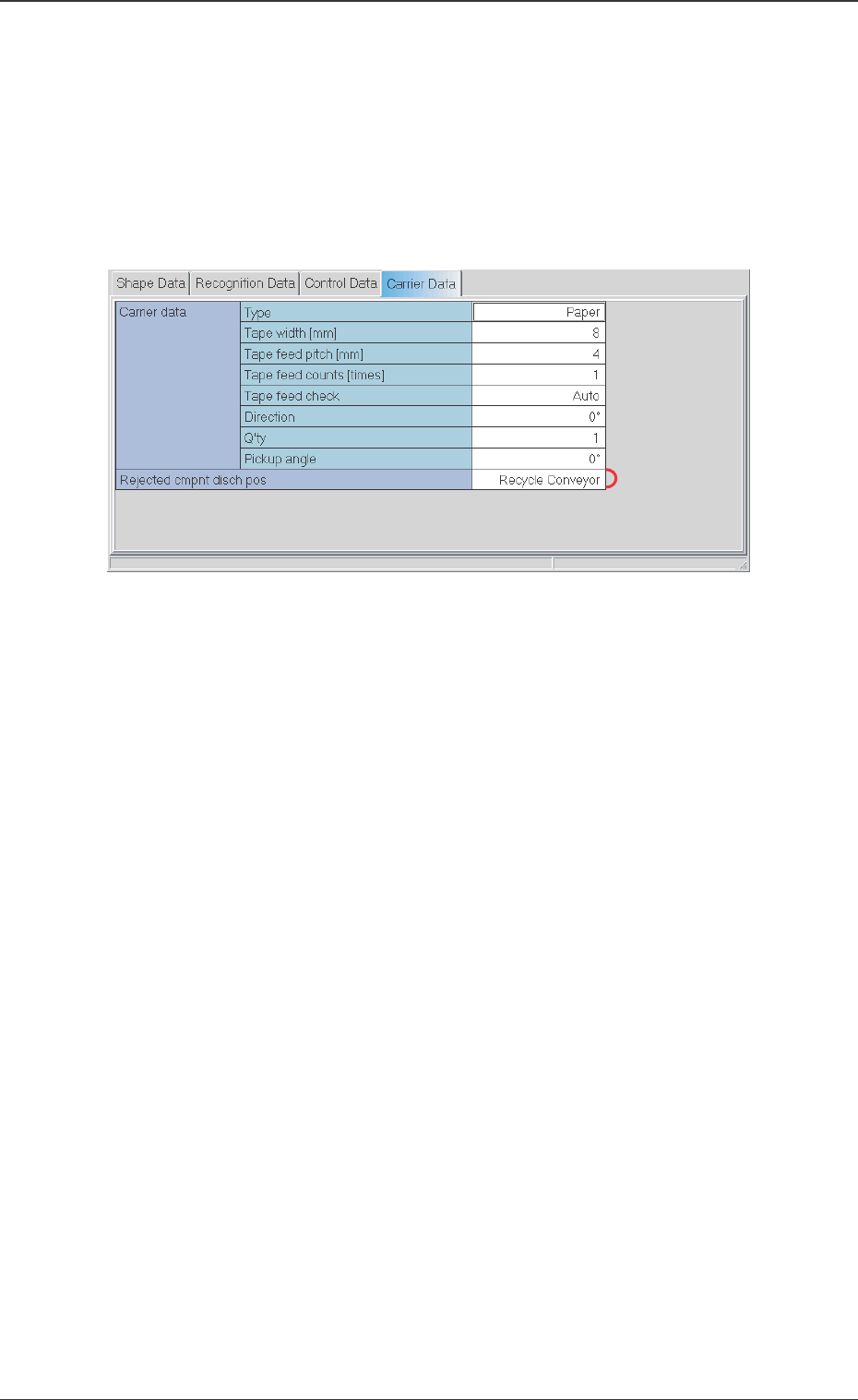

When the [Carrier Data] tab is pressed at the "Component Library"

Edit window, the following tab sheet appears.



*1 Rejected Component Discharge Position [Rejected cmpnt

disch pos]

Set the component discharge position to Recycle Conveyor.

Fig. 3
