1. Scope

This recycle conveyor machine has a conveyor to transfer rejected

components to the operator side, as they are and without any dam-

age. That happens when the component recognition error, in the multi-

functional mounter TIM-X100, judges the picked-up component to be

unsuitable for placement. It also has a component storage box to

store the rejected component.

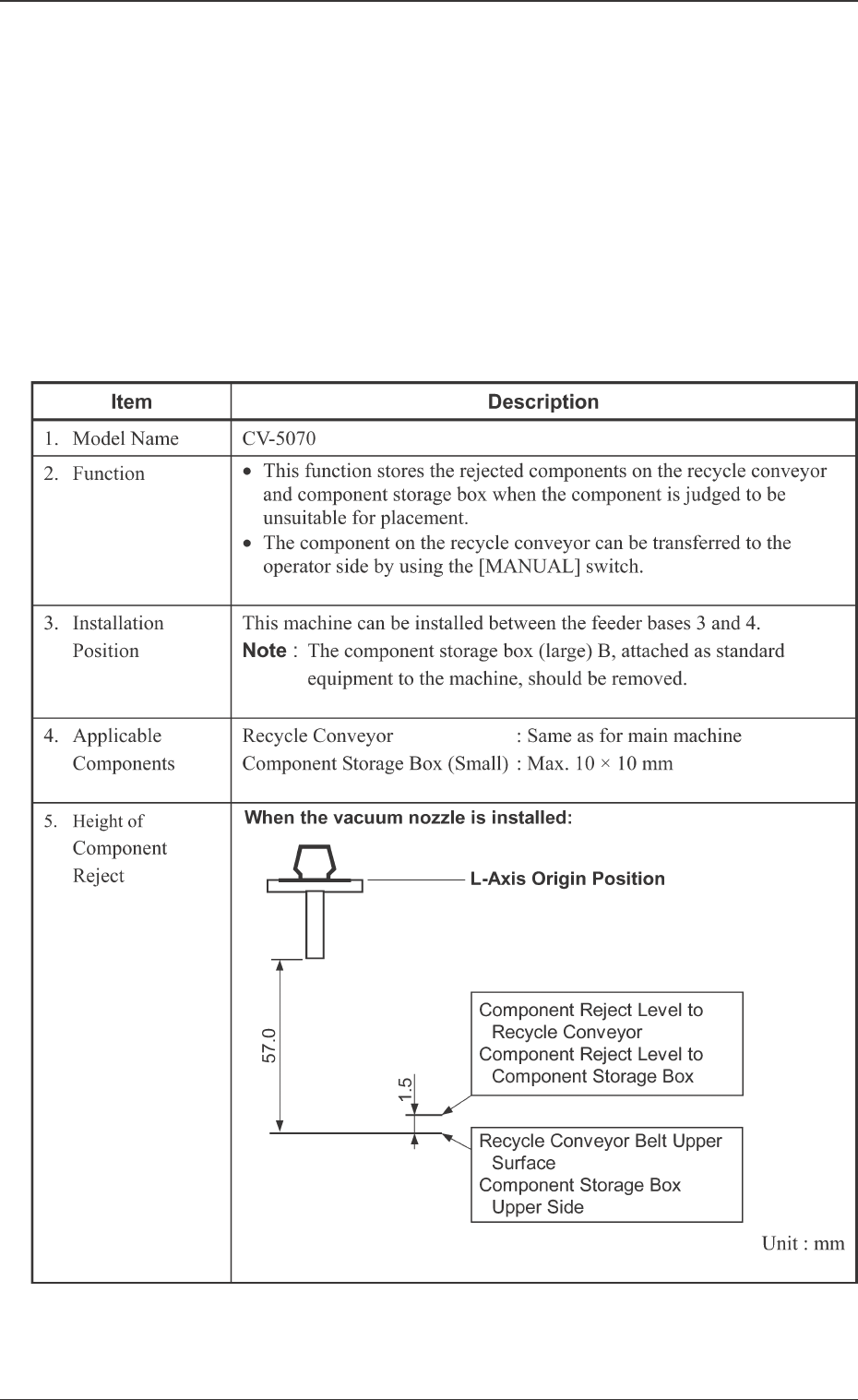

2. Specifications

Table 1

1. Scope

5 Tg0754-PM-SO0206-001

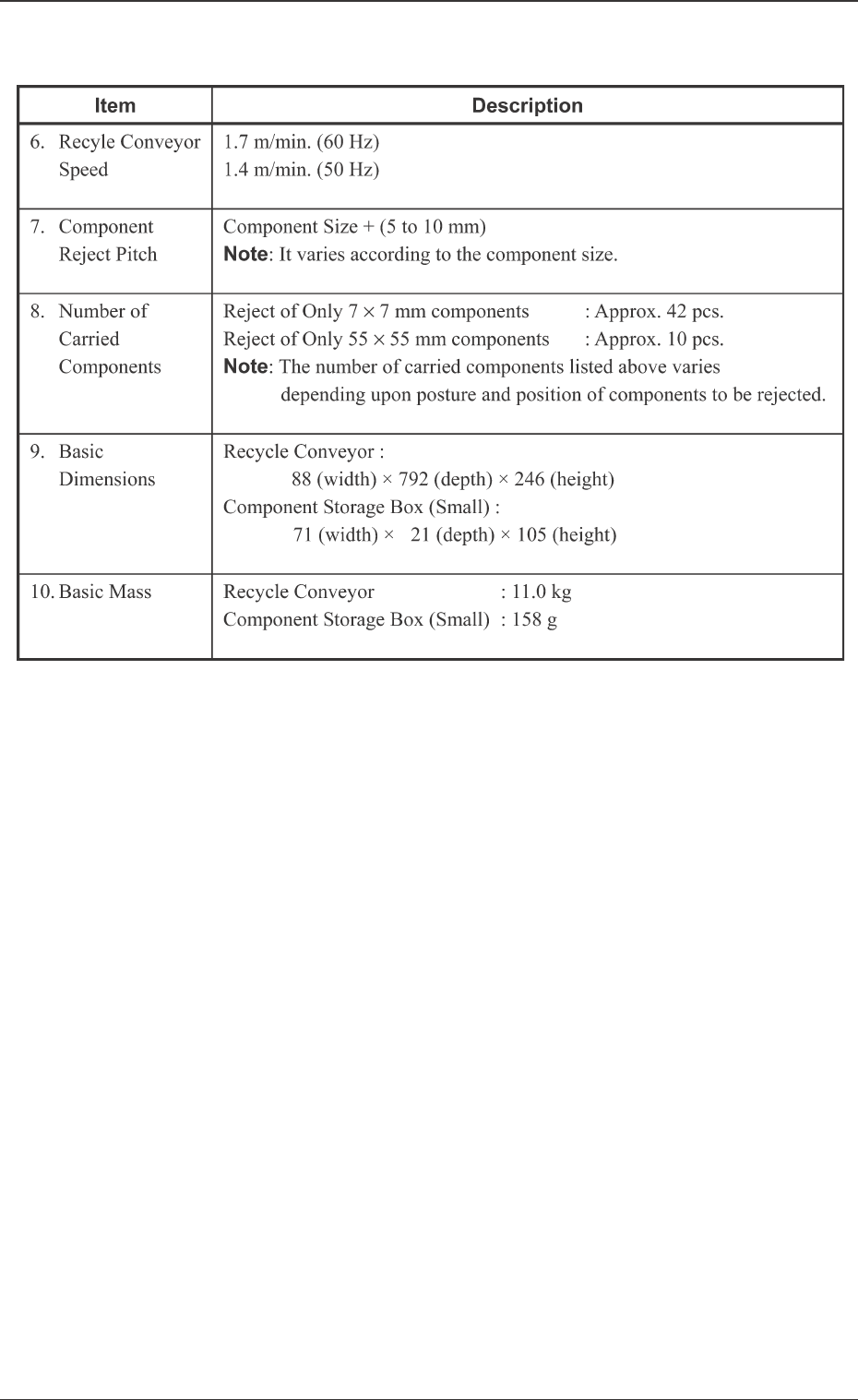

2. Specifications

Table 2

6 Tg0754-PM-SO0206-001

3. Rough View

3.1 Rough View and Names

*1 Attachment for Installation

This attachment is used for installing the recycle conveyor.

*2 Signal Connector

This is a signal connector between the recycle conveyor and TIM-

X100.

*3 Power Connector

This connector is used for supplying power to the recycle con-

veyor.

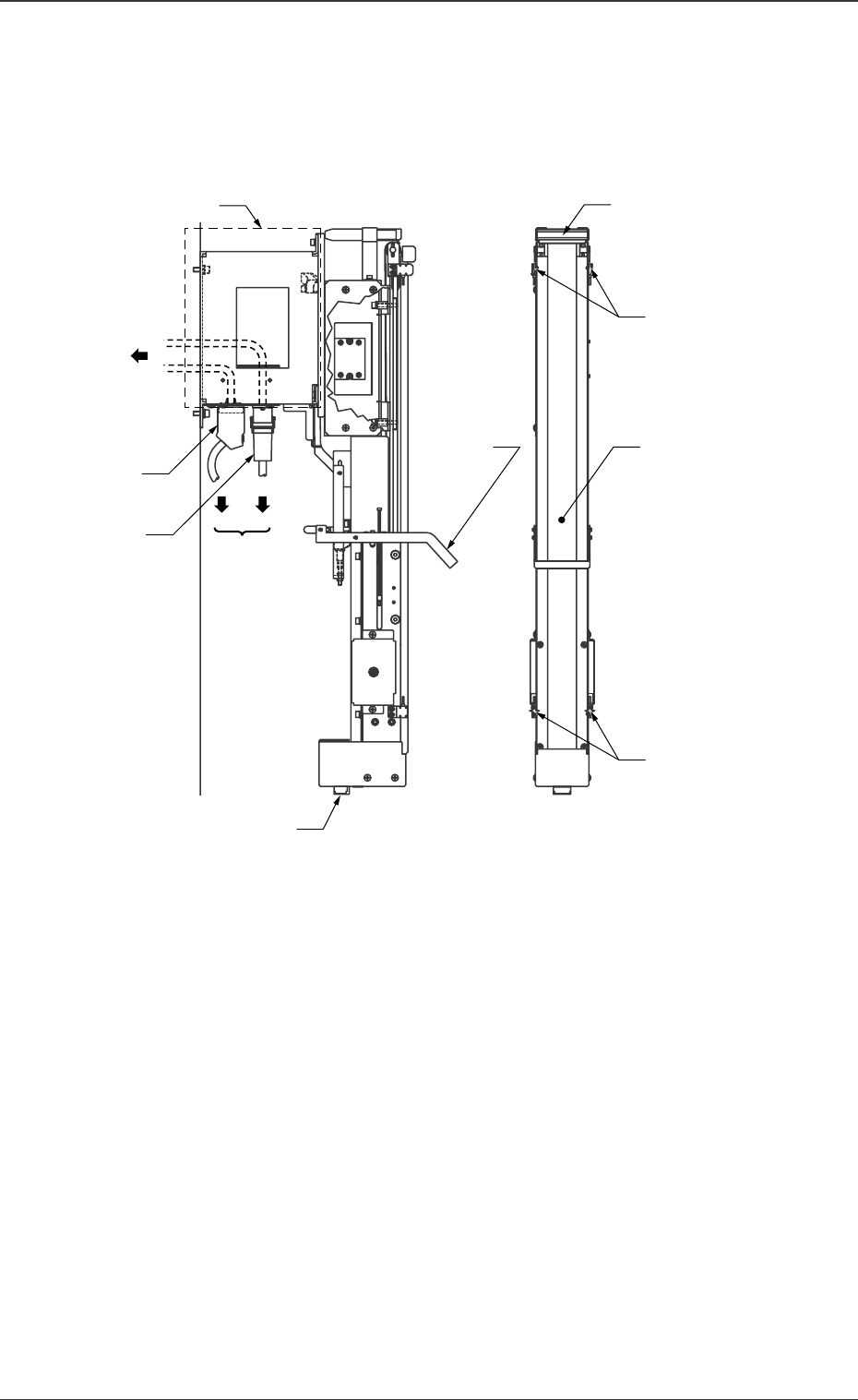

Fig. 1 Recycle Conveyor Rough View

*6 Component

Storage Box (Small)

*1 Attachment for

Installation

*8 Conveyor Belt

*4 [MANUAL] Switch

(Outside of TIM-X100)

(Inside of TIM-X100)

*5 LOCK

*2 Signal

Connector

*3 Power

Connector

*9 Recycle Conveyor

Component Full

Detection Sensor

(-BPH652)

*7 Recycle Conveyor

To TIM-X100

To Recycle

Conveyor

Component Discharge

Position Detection

Sensor (-BPH651)

Lever
