Tg0754-PM-SO 9. Materials 9.1 Parts Location 9. Materials 0206-001-(M756YCC--2101) 21 Section A Detailed Drawing
20 Tg0754-PM-SO0206-001
8.2 Troubleshooting after "ERROR" Window (Error ID)
8.2.3 Error IDs and Remedial Procedures
Table 5
Error ID Item Description
Component Reject
Conveyor [B]
Component reject conveyor [B] became full.
(Cause 1) The recycle conveyor (B) is filled with components.
(Remedy 1) Recover it with the following procedure.
(1) Press the [RESET] button.
(2) Remove the component on the Section A manually.
(3) Press the [MANUAL] switch and remove components on
the recycle conveyor and in the component storage box.
(4) Then restart the automatic operation.
780401
Component Reject
Conveyor [B]
Recycle Conveyor Motor ON Time-Out (BPH651)
780402
(Cause 1) Possible motor wiring error.
(Remedy 1) If the recycle conveyor will not move, even though the
[MANUAL] switch is pressed, there might be a motor wiring
error. Check the wiring. Then start the automatic operation.
(Cause 2) Possible sensor light axis deviation or wiring error.
(Remedy 2) Check whether the sensor output condition changes in the
input check window when the sensor is shielded by hand. If
the sensor output condition is not changed, the sensor light
axis might have deviated or there be a sensor wiring error.
Check the sensor light axis or wiring. Then restart the auto-
matic operation.
-BPH652
A
Tg0754-PM-SO
9. Materials
9.1 Parts Location
9. Materials
0206-001-(M756YCC--2101) 21
Section A Detailed Drawing
Tg0754-PM-SO
0206-001-(M756JCC--2101) 22

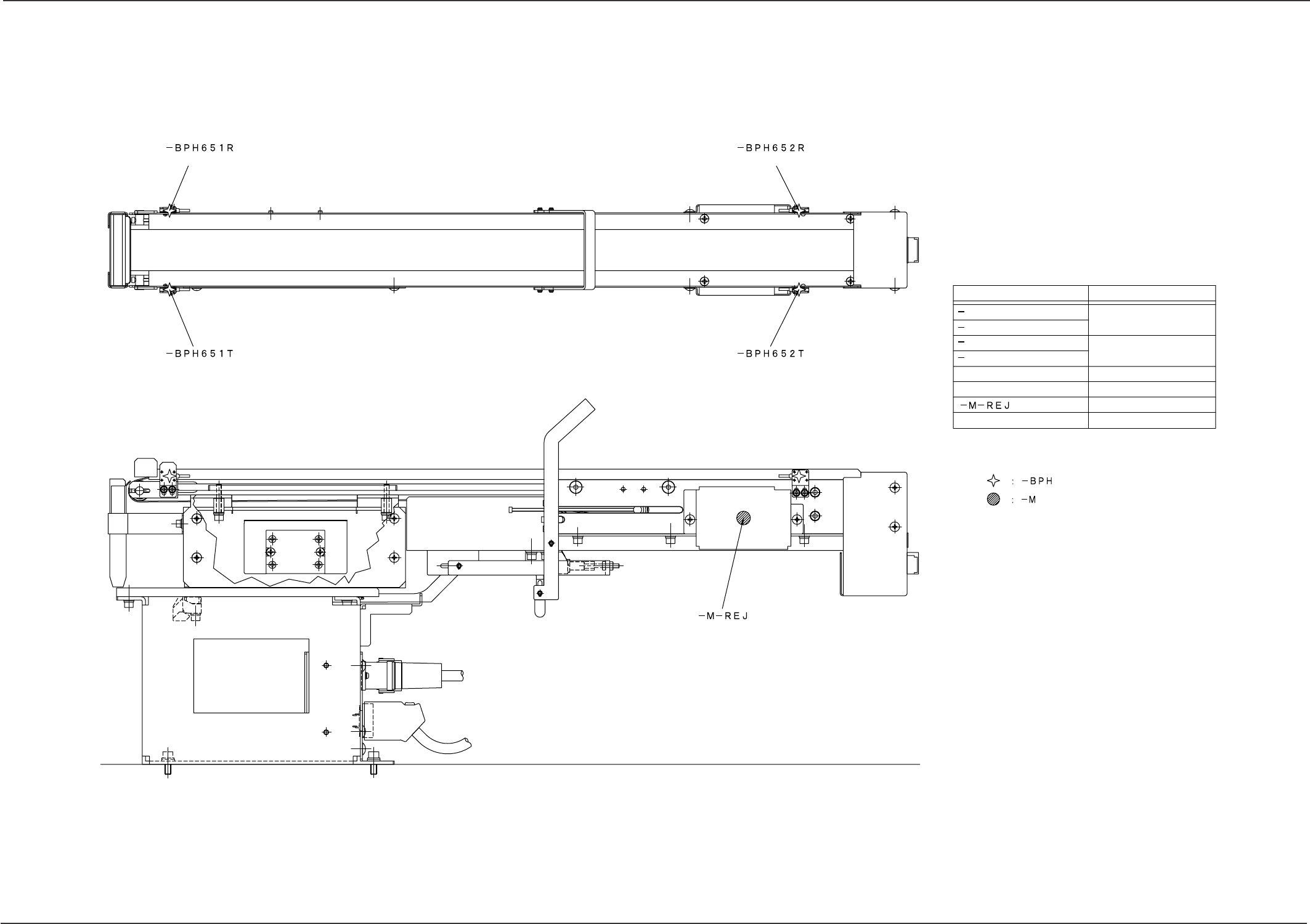

9.2 Location of Sensors and Loads
9.2 Location of Sensors and Loads
BPH651R (Receiving Light)
BPH651T (Emitting Light)
(Receiving Light)
(Receiving Light)
(Emitting Light)
(Emitting Light)
BPH652T (Emitting Light)
BPH652R (Receiving Light)
Note
Transfer Motor
Name
Symbol
Recycle Conveyor B
Disch Position Detection
Recycle Conveyor B
Full Detection
