7. Rejected Component Discharge Offset
When the Recycle Conveyor B is shifted toward the lower right
directiion (viewed from the top), plus values must be enterd in the
"X [mm] (horizontal)" and "Y [mm] (vertical)" text boxes.
When the level (height) of the box is set lower than the design
value, a plus value must be entered in the "L [mm]" text box.
Fig. 6
Recycle Conveyor B
Component Storage Box B (Small)
Feeder Base 4
Feeder Base 3
PL-XY Coordinate
System
X(+)
PO
Y(+)
17 Tg0754-PM-SO0206-001
8. Troubleshooting
8. Troubleshooting
8.1 Scope
8.1.1 Troubleshooting
Refer to "1.1 Troubleshooting" in "Section 2" (the instruction manual
(Vol. 4) of the main machine) for details.
8.1.2 "CHECK" Windows
Refer to "1.2 "CHECK" Windows" in "Section 2" (the instruction
manual (Vol. 4) of the main machine) for details.
8.1.3 "CHECK" List
Table 3
8.1.4 "ERROR" Windows
Refer to "1.4 "ERROR" Windows" in "Section 2" (the instruction
manual (Vol. 4) of the main machine) for details.
Check Codes Display Section (A) Display Section (B)
013401 Recycle Conveyor B Recycle Conveyor B is full (-BPH652)
18 Tg0754-PM-SO0206-001
8.2 Troubleshooting after "ERROR" Window
(Error ID)
Refer to "3. Troubleshooting after "ERROR" Window (Error ID)" in "Sec-
tion 2" (the instruction manual (Vol. 4) of the main machine) for details.
8.2 Troubleshooting after "ERROR" Window (Error ID)
8.2.1 Typical Description
Refer to "3.1 Typical Description" in "Section 2" (the instruction
manual (Vol. 4) of the main machine) for details.

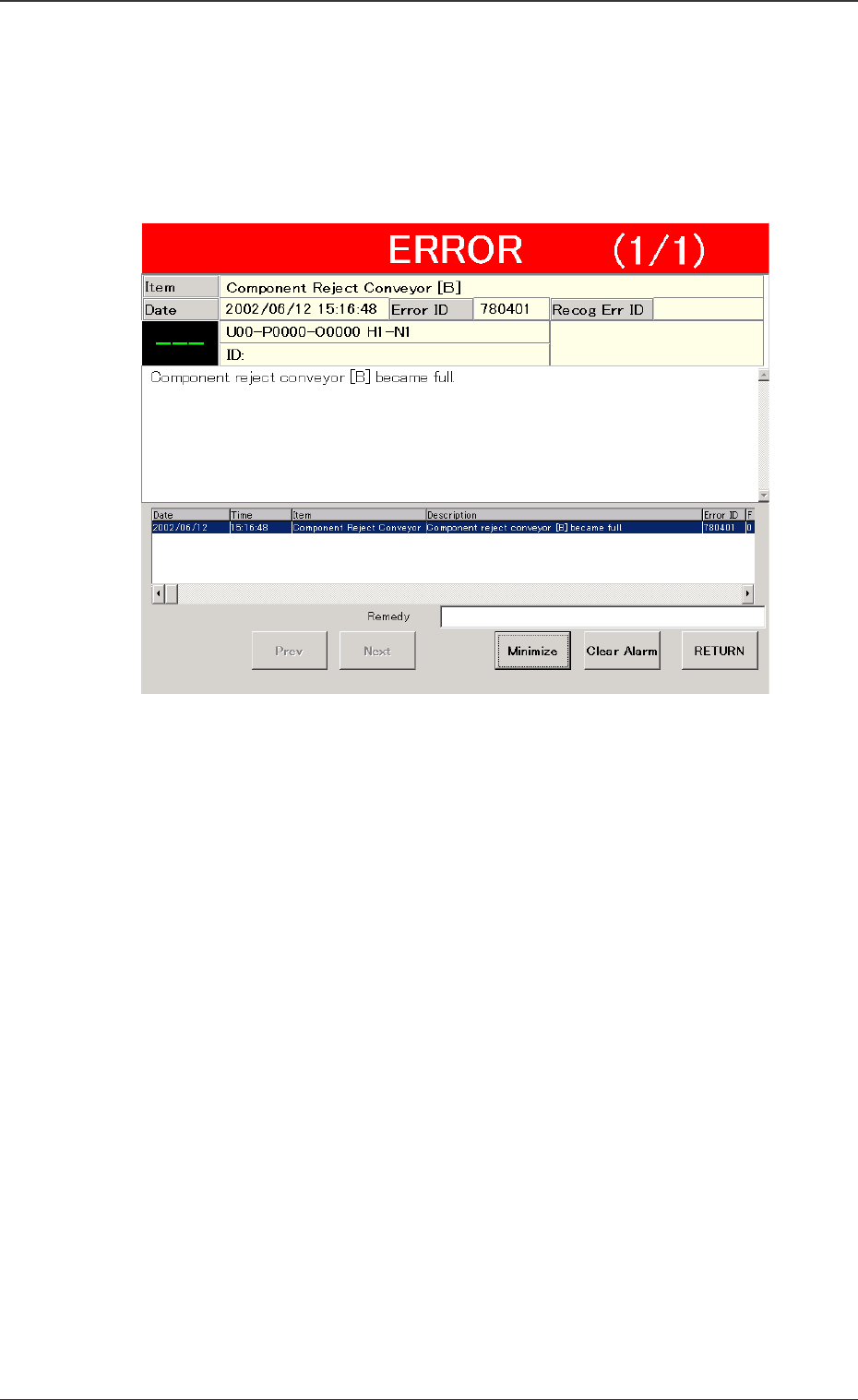

Fig. 7 Example of "ERROR" Window
