Retrofit the XFVS c amera position Ausgabe 08/2017 Edition 17 2 Refit the camera position NOTE New calibration tool For the calibration of the modified XFVS a n ew calibration too l is required. ► 03146176-02 Cal ibratio…

Retrofit the XFVS camera position Ausgabe 08/2017 Edition

1.2 Conventions for the use of safety instructions

This manual contains notes that must be observed to guarantee your personal safety and to avoid

damage to equipment. These notes are highlighted by warning triangles and are indicated as

follows according to the level of risk:

DANGER

Definition

For the purposes of this manual, this indicates that fatal or severe injuries or

considerable damage to property will occur if this hazard warning is not observed.

WARNING

Definition

For the purposes of this manual, this indicates that fatal or severe injuries or

considerable damage to equipment may occur if these warning instructions are not

followed.

CAUTION

Definition

For the purposes of this manual, this indicates that minor injuries or damage to property

may occur if this caution is not observed.

NOTICE

Definition

For the purposes of this manual, this note provides information about the product or

indicates a part of the manual that requires particular attention.

1.2.1 ESD Guidelines

CAUTION

Handling ESD Modules

Electronic devices are extremely sensitive for high voltages and can be easily damaged

by electrostatic discharge. Therefor pay attention during the retrofit activity,

► that you are constantly earthed by an ESD wrist or

► that you are wearing ESD shoes or ESD shoe earth strap assumed there is an ESD

floor.

1.2.2 Qualified personnel

Qualified or adequately trained personnel means that these people are familiar with the set up of

the SIPLACE XFVS and are suitably qualified, for example:

● Have been trained, instructed or authorized to switch on and off, isolate, earth and identify

electrical circuits and system components in accordance with normal safety standards.

● Have been trained or instructed in the upkeep and use of appropriate safety equipment in

accordance with normal safety standards.

Retrofit the XFVS camera position Ausgabe 08/2017 Edition

2 Refit the camera position

NOTE

New calibration tool

For the calibration of the modified XFVS a new calibration tool is required.

► 03146176-02 Calibration tool XFTS complete.

2.1 Retrofit XFVS camera position 12mm [03168448-01]

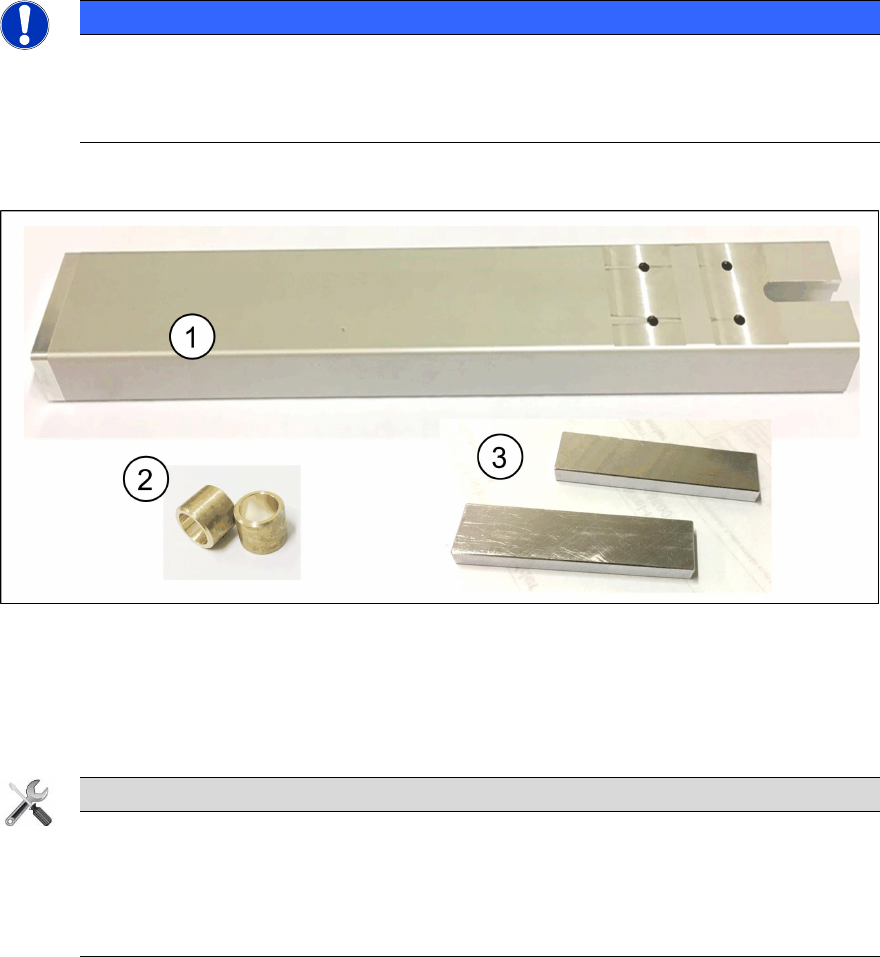

Fig. 1: 03168448-01 Refit kit XFVS 12mm offset camera column

4. 1x Camera tower with mounted adapter

5. 2x Sleeves

6. 2x Adjustment aid

Tools

Required tools for the retrofit!

● Allen key 2,5 mm, 5 mm and 6 mm

● Open-end or ring spanner size 10

● Side cutter

2.2 Preparing the XFVS for the retrofit

Before starting to disassemble the camera tower the following steps need to be performed.

► Switch off the X-Feeder Verification System at the main switch.

► Remove any device from the X-Feeder Verification System.

► Disconnect all cables at the back of the X-Feeder Verification System.

● Power Supply

● USB vision connection

● USB-CAN-Bus adapter

Retrofit the XFVS camera position Ausgabe 08/2017 Edition

2.3 Disassembly

2.3.1 Removing the camera tower

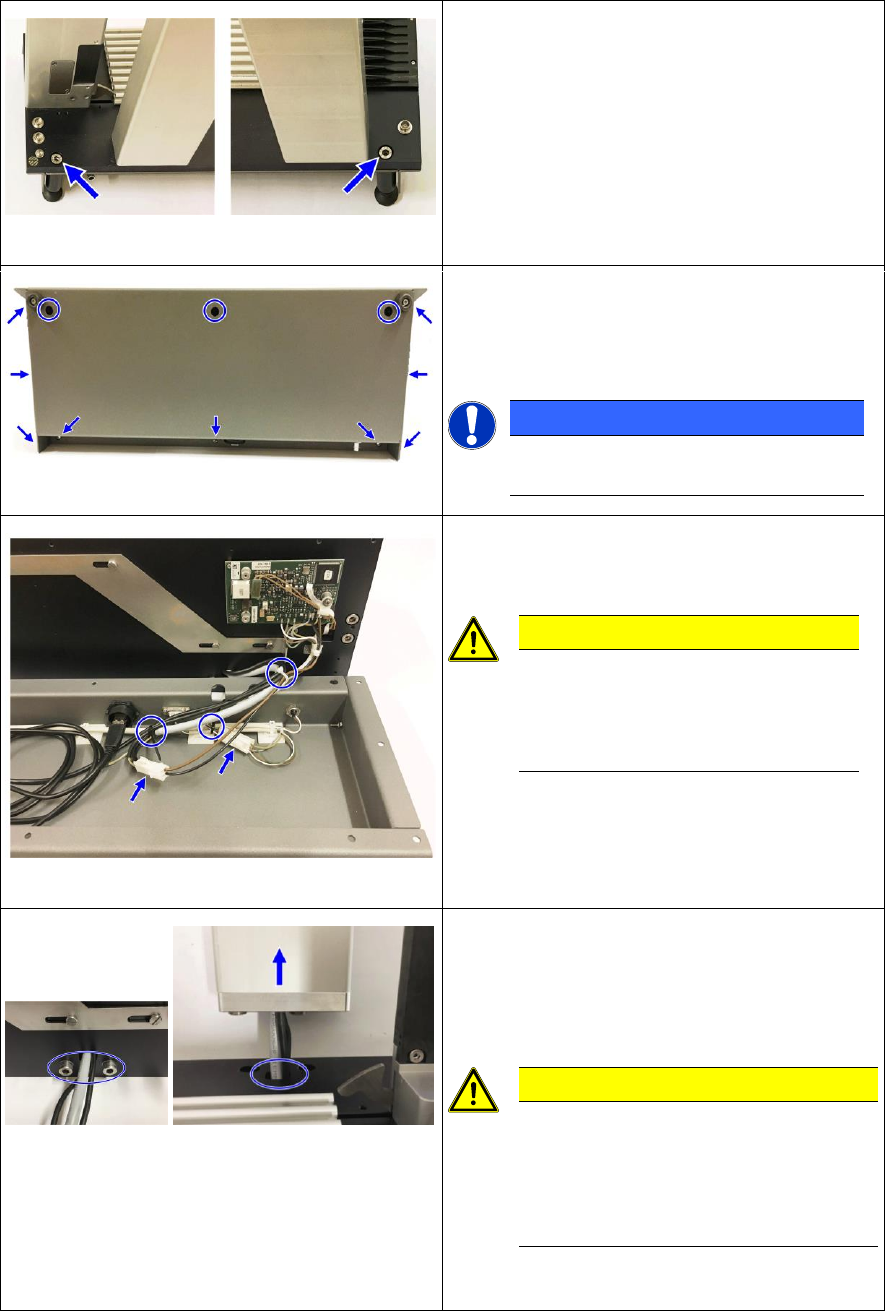

Fig. 2: Feet at the back of the XFVS

► Remove the left and right foot at the back of

the station.

Fig. 3: Screws at the base plate

► Place the XFVS on the back, on a clean and

even work surface.

► Remove all screws from the housing.

NOTICE

At newer XFVS the outer screws at

the top were omitted.

Fig. 4: XFVS connection - base plate to housing

► Remove the housing from the baseplate and

lay it in front of it.

CAUTION

Connecting cable

The housing is connected by cable

to the base plate. Be careful not to

damage any cable!

► Remove the 3 cable ties and disconnect the

2 cables from the base plate.

► Place the housing at a protected place to the

side.

Fig. 5: Camera tower interface

► Remove the 2 screws on the camera tower

and detach it from the base plate.

► Carefully thread the camera cable through

the opening.

CAUTION

Firm seating and small opening

The camera tower sits firmly on the

base plate and the opening for the

cables is at some XFVS very small. Be

careful not to damage any cable!

► Place the base plate on a protected surface

to the side.
