Retrofit the XFVS c amera position Ausgabe 08/2017 Edition 24

Retrofit the XFVS camera position Ausgabe 08/2017 Edition

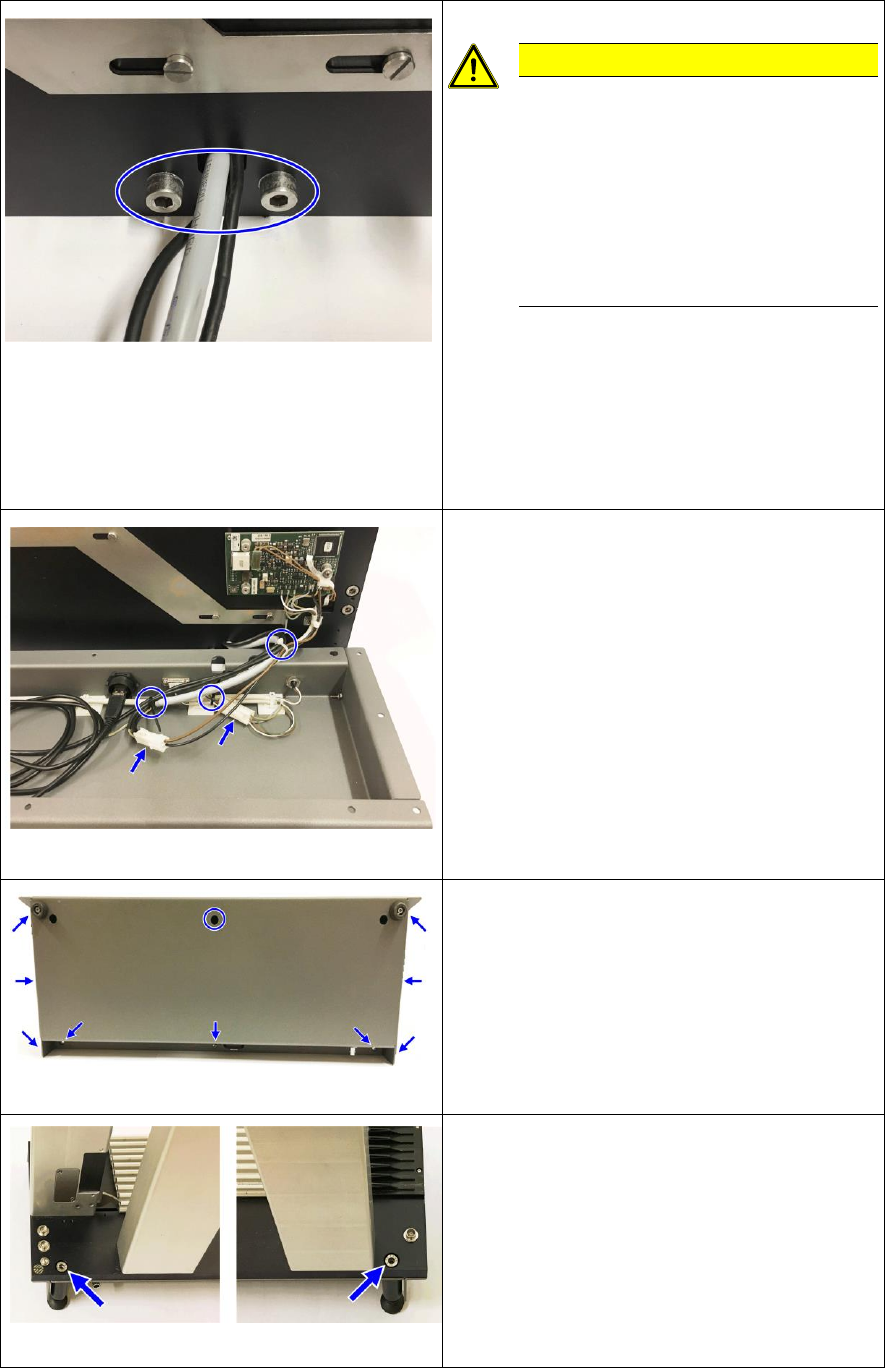

Fig. 22: Mounting the camera tower to the base plate

CAUTION

Firm seating and small opening

The sleeves must be pulled into the

corresponding openings when

tightening in order to ensure a firm

position of the camera tower on the

base plate.

Be careful not to damage a camera

cable while doing so.

► Position the sleeves in the adapter over the

openings in the base plate.

► Clean the opposite surfaces of the adapter

and the base plate.

► Insert the screws and fix them hand-tight

alternately until the adapter sits firmly on the

base plate.

Fig. 23: Connect the base plate with the housing

► Put the housing on front of the base plate.

► Connect the 2 cables and fix the cables at

the 3 marked positions with cable ties.

Fig. 24: Screws fixing the base plate to the housing

► Align the housing with the base plate and

hand-tighten all screws in this position

starting with the screw in the middle at the

top.

Fig. 25: Feet at the back of the XFVS

► Replace the 2 rear feet of the system and

hand-tighten them.

► The conversion is now complete
