15 Fig 3-1 3.1 Robot Working Range JAKA Zu 7 v2.5 The r obot c onsists m ainly of six joints and two aluminum tube arms (as shown in F ig3-1). The base is used to install the r obot, and the tool end is used to mount the…
14
Disable robot：When robot enabled, short press the lock button + enable
button
Start/
Stop
Run program: press the terminate button to start the default loaded
program. After robot moves to the initial position of the program, execute the
default program .
Terminate program: When program operating, short press the button to
terminate the program.
Home
Reset：After robot enabled, when no program is operating, press
continuously to control the robot to run to the set default position. When robot
moves to the default position, press continuously and the lock indicator light is
blue.
Pause/
Resume
Pause: When the robot moving automatically, press to pause the program.
Recovery: When robot paused, press to recover the program running.
Lock/Fn
Locking handle: Press and hold the lock button for 3 seconds, and the
lock indicator light will be orange.
Unlock handle: Press and hold the lock button for 3 seconds, and the lock
indicator light will go out.
Combination function: Other buttons and lock button can be pressed in
combination.
Lock
indicator
Locked state: When locked, the indicator is orange. Except for the unlock
and on/off button, other buttons are invalid. APP can control the robot.
Unlocked state: When unlocked, the indicator is off and the handle can be
used. The APP interface is gray and you can not control the robot.
Emergency
Stop
For emergency stop.
Note: The emergency stop button is only used in emergency situations and
cannot be used as a general power-off device.
Note：
After powering on, press any button and the handle will beep at a frequency of 2 times per second.
When using the handle to operate the robot, please ensure that the robot under operating is within the line
of sight, and follow the relevant safety rules to prevent injury to the people or equipment around the robot.
JAKA Zu 7 V2.5
15

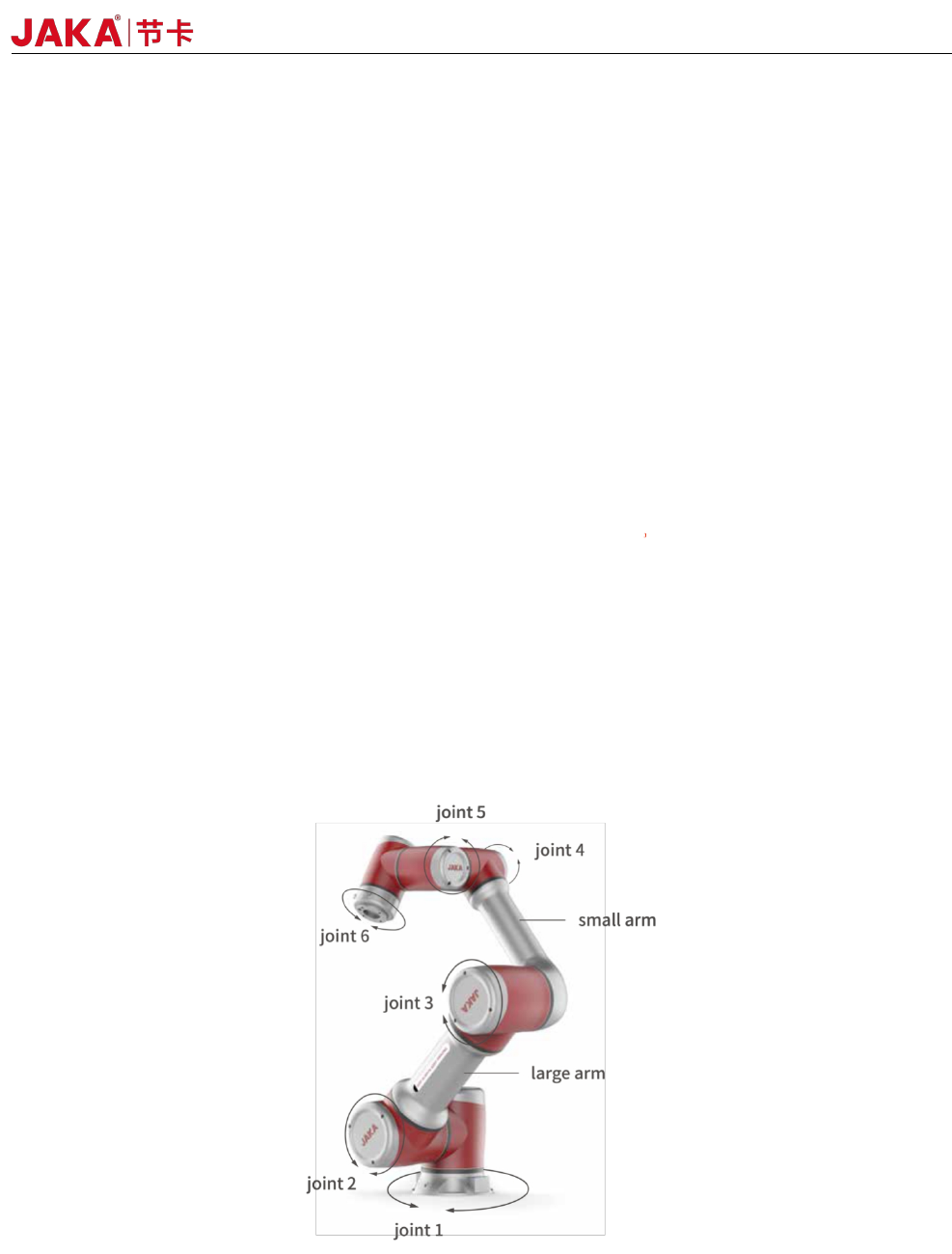

Fig 3-1
3.1 Robot Working Range
JAKA Zu 7 v2.5
The robot consists mainly of six joints and two aluminum tube arms (as shown in Fig3-1). The base is used
to install the robot, and the tool end is used to mount the tool. The tool can perform translational and rotational
movements in the robot's working range. The following sections describe the basics to be aware of the
installation of various components in the robot system.
3 Mechanical Specification
16
3.1.1 Robot Dimensions
Fig3-2
Fig3-3
3.1.2 Robot Working Range
The photo and dimensions of JAKA Zu 7 robot and electrical cabinet are shown in Fig 3-2 and Fig3-3.
Make sure to take into account the working range of the robot during installation to avoid injury to
people or damage to the equipment.
The working range of JAKA Zu 7 is shown in Fig 3-4. When choosing the robot installation
position, the cylinder space directly above and below the robot must be considered. Moving the tool close to
the cylindrical volume should be avoided if possible, because it causes the joints to move fast even though the
tool is moving slowly, causing the robot to work inefficiently and making it difficult to conduct a risk assessment.
JAKA Zu 7 V2.5 a
