Page +$1:+$ 145 Flux(2/5) EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old No. Supp ly Supply L T Refere nce 1 FC09-000866A BRACKET -INST ALL GUIDE 2 2 FC30-001075A PLA TE-BOTT OM_P LA TE …

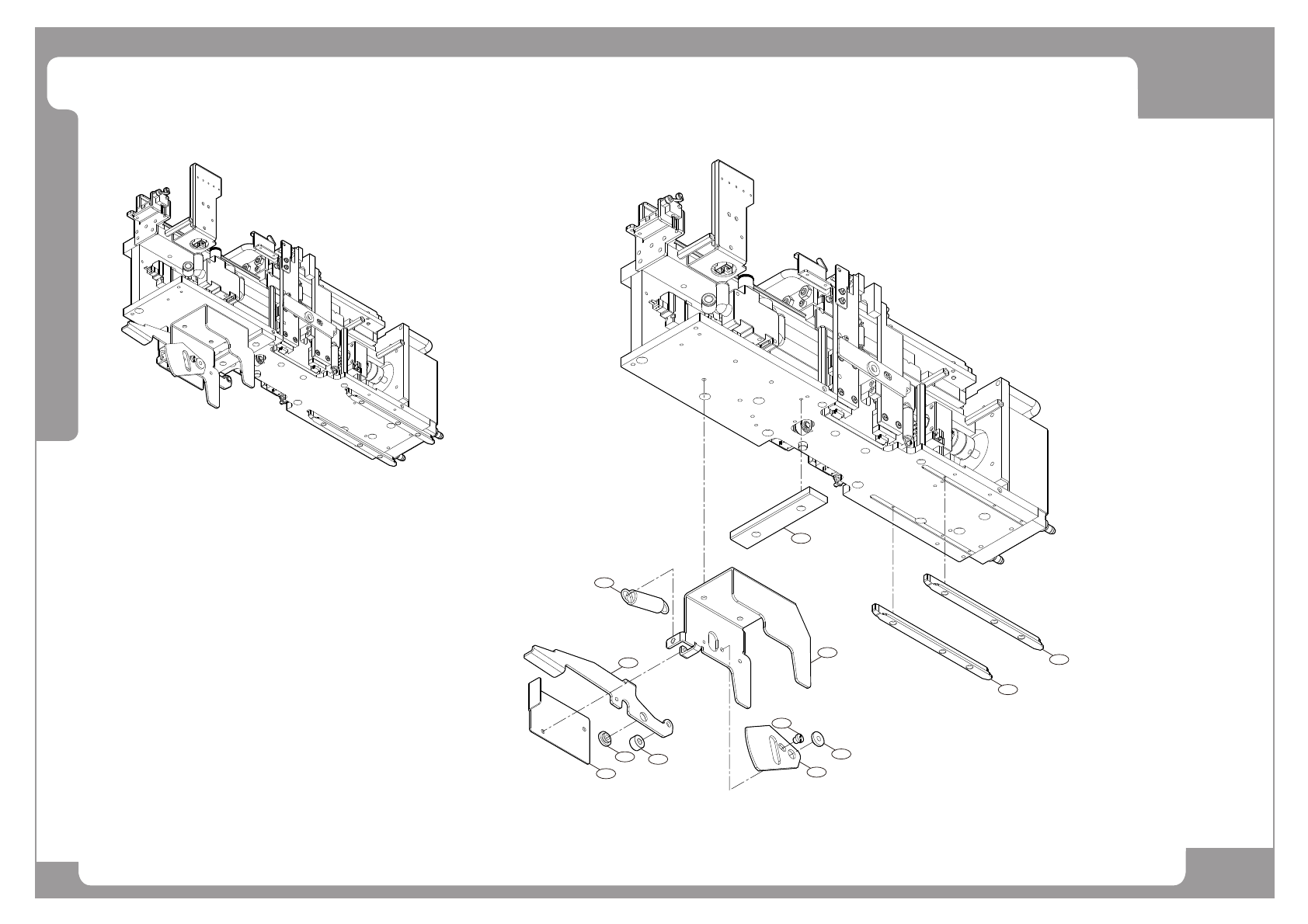

Page
+$1:+$
144
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
Flux(2/5)
3
5
8
4
7
2
1
1
9
10
11
6
Page
+$1:+$
145
Flux(2/5)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-000866A BRACKET-INSTALL GUIDE 2
2 FC30-001075A PLATE-BOTTOM_PLATE 1
3 FC38-900069 SPRING_AWS12-50 AWS12-50 1
4 FC29-001477B HOLDER-LEVER_HOLDER 1 FC29-001477A
5 FC29-001638A COLLAR-FL_COLLAR_C 1
6 FC29-001473A COLLAR-FL_COLLAR_A 1
7 FC29-001640A STOPPER-MNT_STOPPER 1
8 FC24-000022A LEVER-CLAMP_LEVER 1
9 J70653553A CLAMPING_ROLLER J70653553A 1
10 FC29-001473A COLLAR-FL_COLLAR_A 1
11 FC15-001200A COVER-LEVER_COVER 1
Page
+$1:+$
146
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
Flux(3/5)
17
15
11
12
13
9
4
5
6
16
14
16
18
19
7
5
10
8
7
3
1
2
