Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference.pdf - 第45页
Page +$1:+$ 39 BUT Block - Large Conveyor Option EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old No. Supp ly Supply L T Refere nce 1 J70532094 A BACK_UP_PIN J705 32094A 10 2 FC30-004146A …
Page
+$1:+$
38
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
BUT Block - Large Conveyor Option
2
1
3
4
2
6
7
8
5
3
Page
+$1:+$
39
BUT Block - Large Conveyor Option
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70532094A BACK_UP_PIN J70532094A 10
2 FC30-004146A PLATE-PIN_PLATE_B 2
3 J70532099A BUT_PIN_PLATE_A J70532099A 2
4 FC29-001336A COLLAR-COLLOR 15
5 FC29-001337A COLLAR-WSSB635 3
6 FC30-004145A PLATE-BASE_PLATE310 1
7 FC29-001863A GUIDE-V1P05-PIN_BLOCK_PUT_GUIDE 4
8 FC30-000842C PLATE-V05-BACK_UP_BLOCK_FOOT_M_C 4
HP13-000019 TUBE-TUBE;TU0425B 1.5
HP13-000052 TUBE,PNEUMATIC-TU0425YR-20;MM,STRAIGHT,4 1.5
Page
+$1:+$
40
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

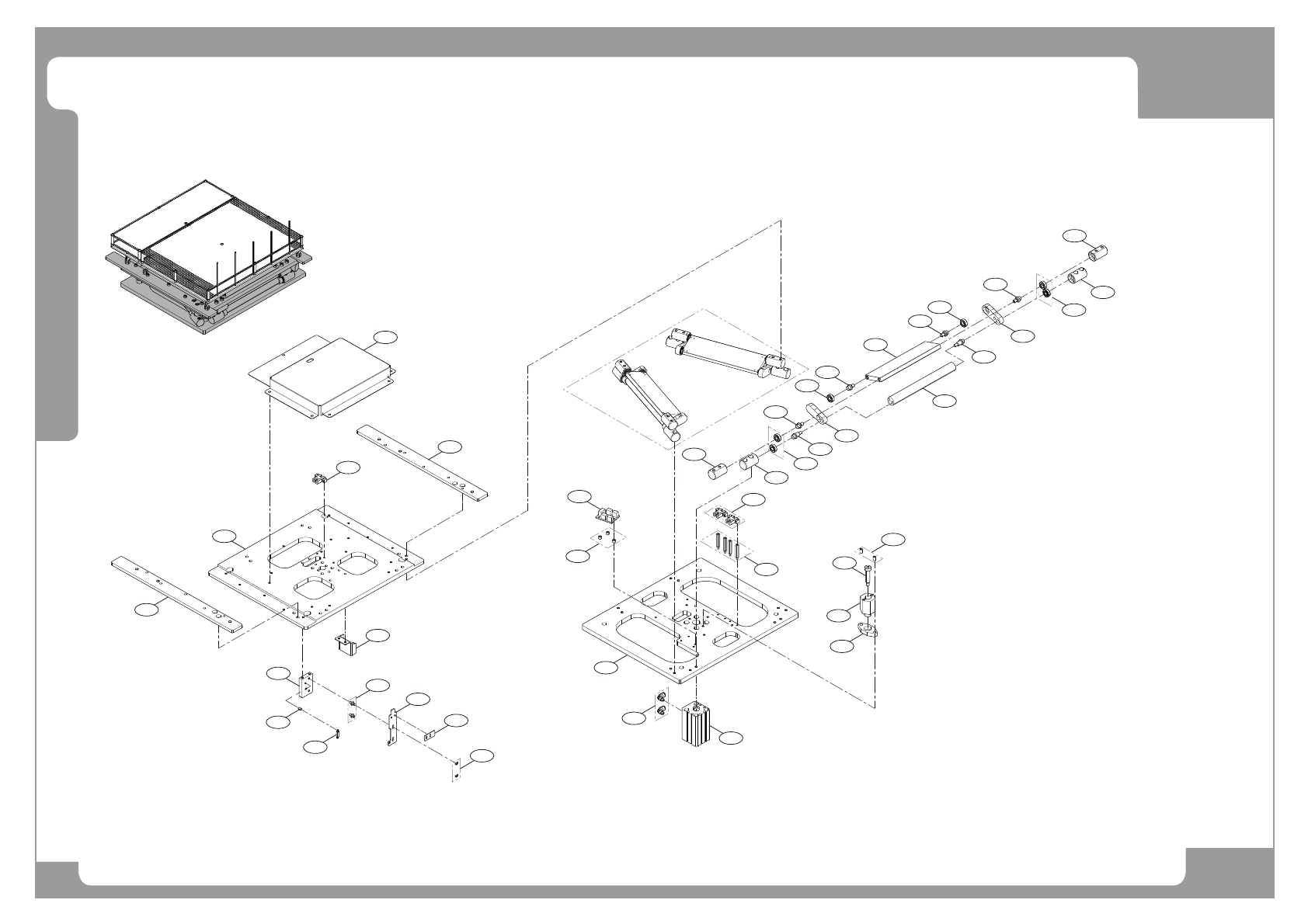

BUT Body - Large Conveyor Option
17
15
17
20
17
15
17
13
13
30
23
6
4
3
21
5
3
1
2
9
10
11
12
14
15
16
19
16
18
15
14
18
22
27
7
8
29
28
24
26
25
2
