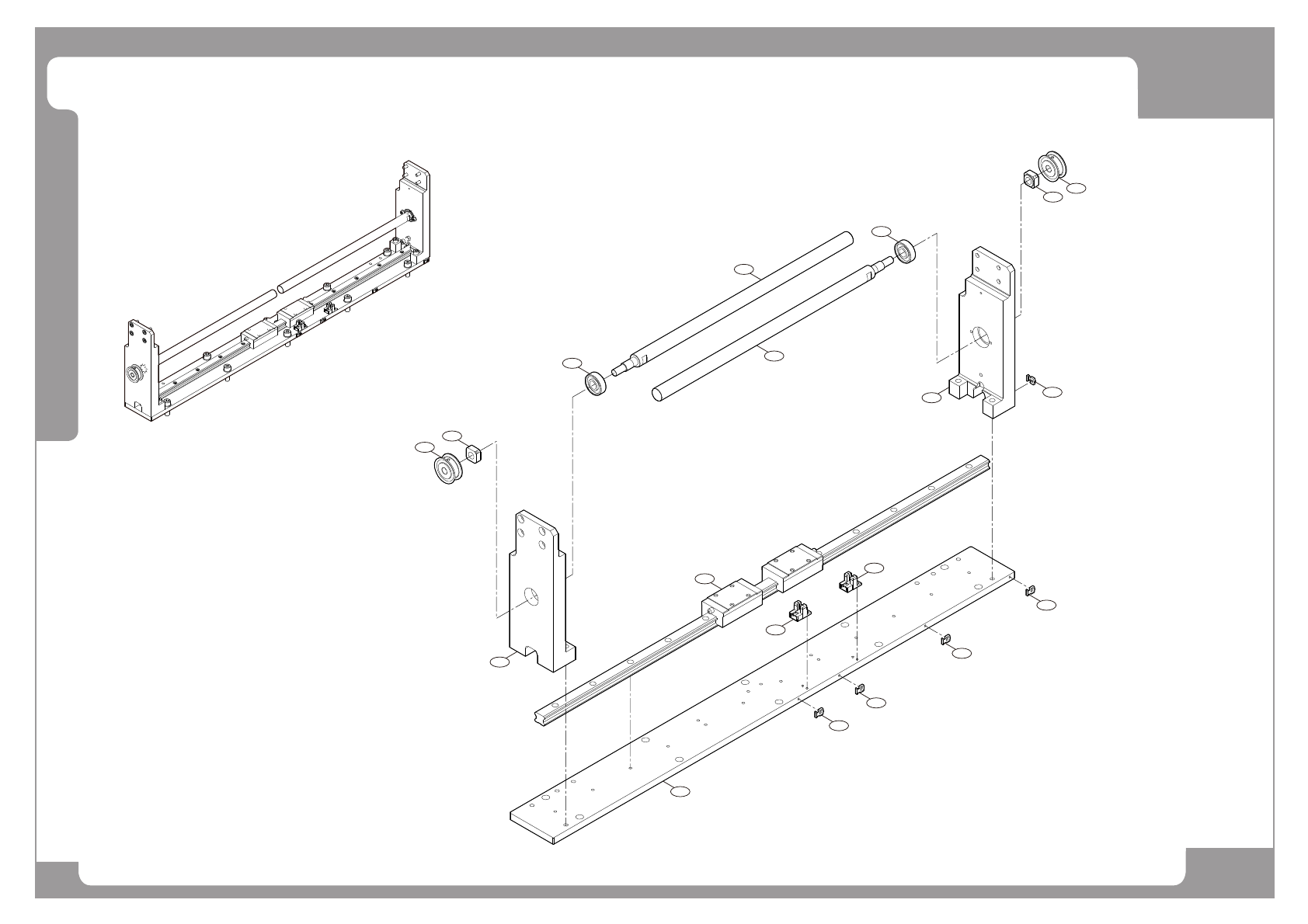

Conveyor(5/7) Rear Fix
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 MC05-000143 TIMING BELT-S2M_SIDE_HTBN1196S2M-60;S2M 2
33 MC05-000142 TIMING BELT-S2M_MID_HTBN800S2M-60;S2M 1
34 FC18-901353 C-RING #10 (SHAFT, BL/ZN) 2
35 MC19-000428A SHAFT-HEIGHT_SNS_TEACHING 2
36 FC15-003154A COVER-CONV_SNS_COVER_FIX_F 1
37 FC15-003155A COVER-CONV_SNS_COVER_FIX_R 1
38 AM03-019177B CABLE ASSY-R-ENT PCB DET S9 PHOTO SNS CA 1 EXCEN PRO(D)
39 FC09-007269A BRACKET-INOUT_SNS_BKT_ADJ_A_CX 2 EXCEN PRO(D)
40 FC09-007274A BRACKET-INOUT_SNS_BKT_BASE_A_CX 2 EXCEN PRO(D)
41 FC09-007268A BRACKET-INOUT_SNS_BKT_ADJ_B_CX 2 EXCEN PRO(D)
42 FC09-007267A BRACKET-INOUT_SNS_BKT_BASE_B_CX 2 EXCEN PRO(D)
43 AM03-019180B CABLE ASSY-PCB DETECT S13 PHOTO SNS CABL 1 EXCEN PRO(D)
