Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference.pdf - 第27页
Page +$1:+$ 21 Stage Camera Sub A&B EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-008825A ASSY ,OPTICS-V1P_ST AGE_S IDE_LIGHT_ASSY 1 1 FC30-00…
Page
+$1:+$
20
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

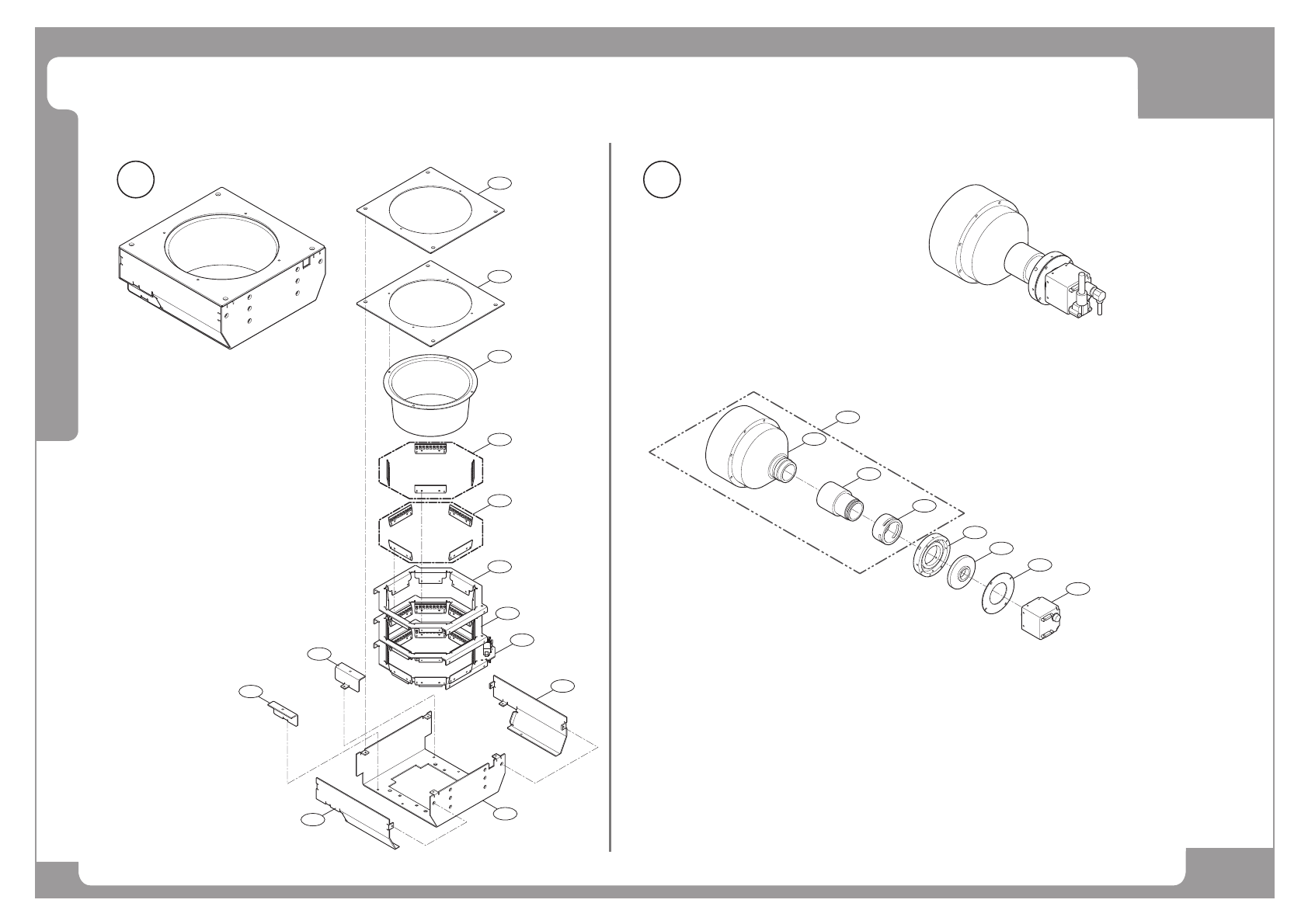

Stage Camera Sub A&B
A B
7
9
9
1
12
2
3
1
2
3
8
4
5
7
6
4
5
10
11
6
8
Page
+$1:+$
21
Stage Camera Sub A&B
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-008825A ASSY,OPTICS-V1P_STAGE_SIDE_LIGHT_ASSY 1
1 FC30-001629A PLATE-TOP_COVER_FID 1 J70811075A
2 J72801053A P_COVER 1
3 EP16-002102A PCB,LED-EXCEN_PRO_SIDE_ILL_PCB_B 12 EP16-000040A
4 EP16-002103A PCB,LED-EXCEN_PRO_SIDE_ILL_PCB_A 12 EP16-000039A
5 J70811081A UP_BASE_HOLDER 1
6 J70811077A SIDE_COVERLB 1
7 FC09-002111A BRACKET,MOUNTING-V1P091-SIDE_LIGHTING_BA 1
8 J70811078A SIDE_COVERLB 1
9 J70811079A SIDE-COVERS 2
10 J70811082A MID_BASE_HOLDER 1
11 J70811083A LOW_BASE_HOLDER 1
12 FC30-002034A PLATE-MTV1PP-OP105A-TOP_COVER_FID 1
B AM03-000870A LENS_CAMERA_ASSY 1
1 AM03-000868A ASSY,OPTICS-V1_STAGE_LENS_ASS'Y 1
2 J71801208A FRONT_BARREL 1
3 J71801101A REAR_BARREL 1
4 J71801209A ADJUST_HOLDER 1
5 J71801210A ADJUST_PLATE 1
6 PT02-001006 CAMERA-SC-D500X;2/3" 1 PT02-900014
7 J71801212A ADJUST_PLATE 1
8 J71591053A CAM_SCREW_T J71591053A
Page
+$1:+$
22
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
ANC - BASE
5
12
12
1
10
11
6
7
2
2
3
4
8
9
A
13
13
13
