Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference.pdf - 第72页

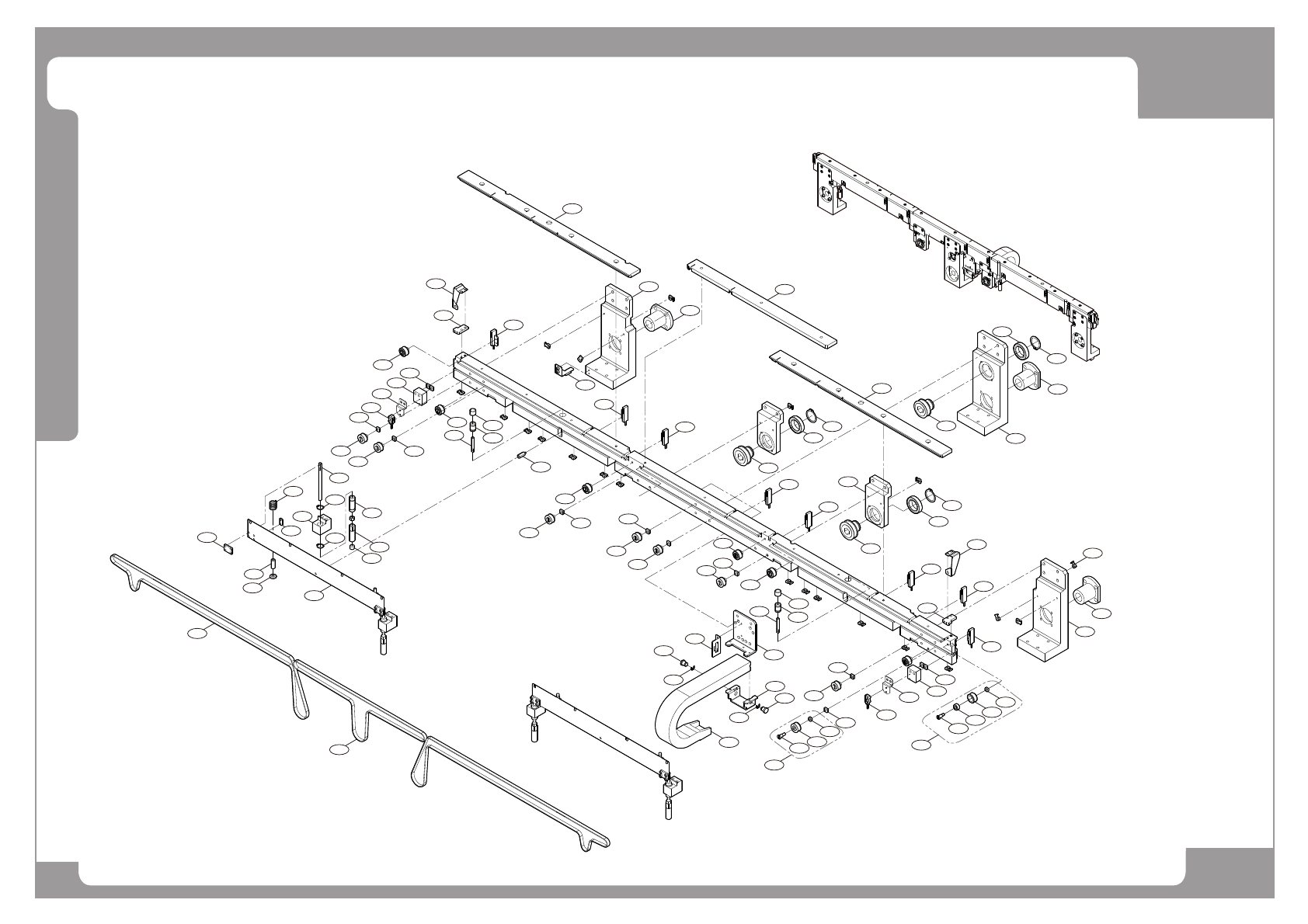

Page +$1:+$ 66 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) Conveyor(4/7) Rear Move 35 42 49 49 1 5 48 2 3 39 40 45 46 41 36 38 37 34 A 43 44 21 19 20 21 30 21 10 27 A B 21 21 24 14 51 13 11 4 25 24 9 10 50 10 10 10 10 10 29 …
Page
+$1:+$
65
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
66
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
Conveyor(4/7) Rear Move
35
42
49
49
1
5
48
2
3
39
40
45
46
41
36
38
37
34
A
43
44
21
19
20
21
30
21
10
27
A
B
21
21
24
14
51
13
11
4
25
24
9
10
50
10
10
10
10
10
29
B
B
B
B
B
B
A
A
A
A
29
6
4
4
50
50
50
12
8
5
10
7
5
7
7
15
16
17
18
22
15
23
26
31
33
21
32
30
31
32
28
19
21
21
20
21
B
52
52
Page
+$1:+$
67
Conveyor(4/7) Rear Move
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-001037A PLATE-PCB_GUIDE_FIX_WAITING_1 1 (Left to Right)
FC30-001038A PCB_GUIDE_FIX_WAITING_2 1 (Right to Left)
2 FC30-001046B PLATE-PCB_GUIDE_REAR_MOVE_R 1 (Left to Right)
FC30-001043B PCB_GUIDE_FRONT_MOVE_L 1 (Right to Left)
3 FC30-001045B PLATE-PCB_GUIDE_REAR_MOVE_L 1 (Left to Right)
FC30-001044B PCB_GUIDE_FRONT_MOVE_R 1 (Right to Left)
4 MC03-900113 BEARING B6804ZZ 3
5 MC13-900238 LEAD SCREW NUT 3
6 FC29-001431A STAND-MOVE_STAND_M_V1P 1
7 MC19-000423A PULLEY-SPLINE_MOVE_S2M 3
8 FC29-001433A STAND-MOVE_STAND_SIDE_D_V1P 1
9 FC18-903190 PROFILE MOUNT DIA4.0 21
10 EP19-900171 SENSOR_FIBER_HEAD E32-T16PR-3 8
11 FC09-002046A BRACKET-SPLINE_SUPPORT_BKT 2
12 J70532082A WIDTH_SENSOR_DOG J70532082A 1
13 J72531034A EDGE_GUIDE 1
14 J72531035A EDGE_GUIDE_2 1
15 J70532064A IDLER_SPACER J70532064A 16
16 MC19-000422A PULLEY-IDLER_S2M 8
17 MC03-900045 BALL_BEARING_685ZZ-STF100N #685ZZ 8
18 J70531836A IDLER_SHAFT J70531836A 8
19 FC07-000487B BLOCK-PIN_DETECT_SENSOR_BLOCK 2 FC07-000487A
20 EP19-900083 ELECTRIC_SWITCH 2
21 J7053184A SQUARE_NUT_M4 12
22 J72531001A IDLER_2 J72531001A 8
23 J70532065A IDLER_SHAFT J70532065A 8
24 MC19-000282A SHAFT-CABLEVEYOR_FIX_SHAFT 2
25 FC09-001387A BRACKET-CABLEVEYOR_MOVE_BKT 1
26 MC08-000012 CHAIN-HSP180-2BN-28R-17RINK 1
27 J70532083A SENSOR_BKT J70532083A 1
28 J70532077A CABLEBEAR_MOVE_BKT J70532077A 1
