Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference.pdf - 第33页
Page +$1:+$ 27 ANC-HP (For CN Nozzle) EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-014514A ASSY ,ANC-A NCHP_AS_A SSY 1 AM03-01 1541A 1 FC18-00187…
Page
+$1:+$
26
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

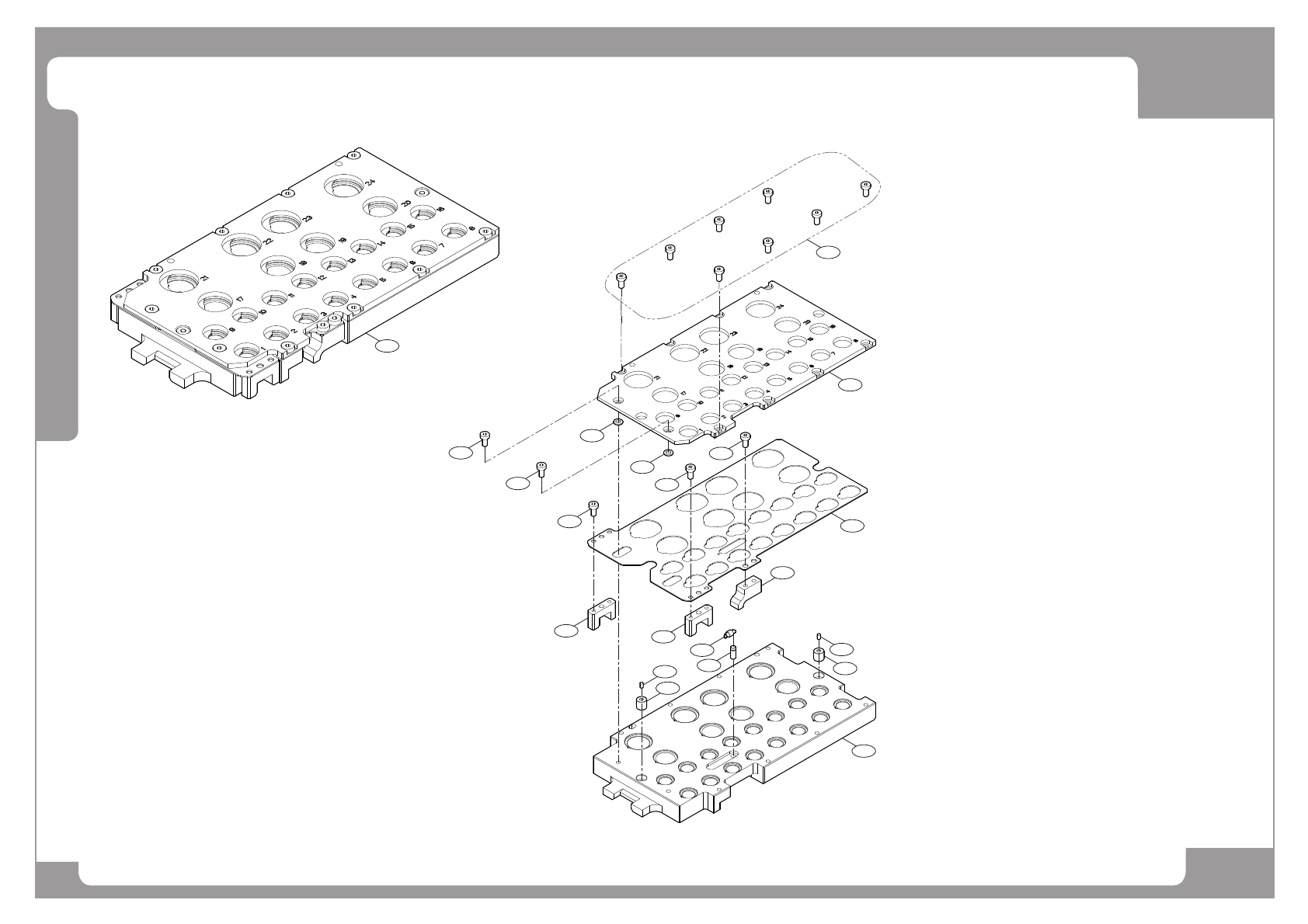

ANC-HP (For CN Nozzle)
7
8
5
6
3
1
1
1
12
12
3
6
10
9
A
2
1
11
8
5
4
Page
+$1:+$
27
ANC-HP (For CN Nozzle)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-014514A ASSY,ANC-ANCHP_AS_ASSY 1 AM03-011541A
1 FC18-001874 SCREW-CBS3-6;HEX,RH,M3,0.5,6,S45C 12
2 FC07-001073D BLOCK-MTV1PP-NC111B-HPANC_PLATE 1 FC07-001073A/ FC07-001073B
3 FC07-000991A BLOCK-MTV1PP-NC105A-32ANC_SPACER 2
4 FC09-003376D BRACKET-MTV1PP-NC112B-HPANC_SHUTTER 1 FC09-003376A/ FC09-003376B
5 J74551006A MARK_PIN J74551006A 2
6 FC07-000990A BLOCK-MTV1PP-NC104A-32ANC_SH_BLOCK 2
7 FC07-001081A BLOCK-MTV1PP-NC114A-ANC_SNS_DOG 1
8 J71561092A MARK_SUPPORT_A 2
9 FC38-900021 EXPAND_SPRING BWY3-10 1 FC38-000125A
10 J70561084A SPRING_SUPPORT J70561084A 2
11 FC07-001072D BLOCK-MTV1PP-NC110B-HPANC_BLOCK 1 FC07-001072A/ FC07-001072B
12 FC18-902710 SOCKET HEAD CAP SCREW M2.5*6 (NI/ZN) 4
13 FC18-901181 DOWEL PIN 24 MSI-6
Page
+$1:+$
28
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

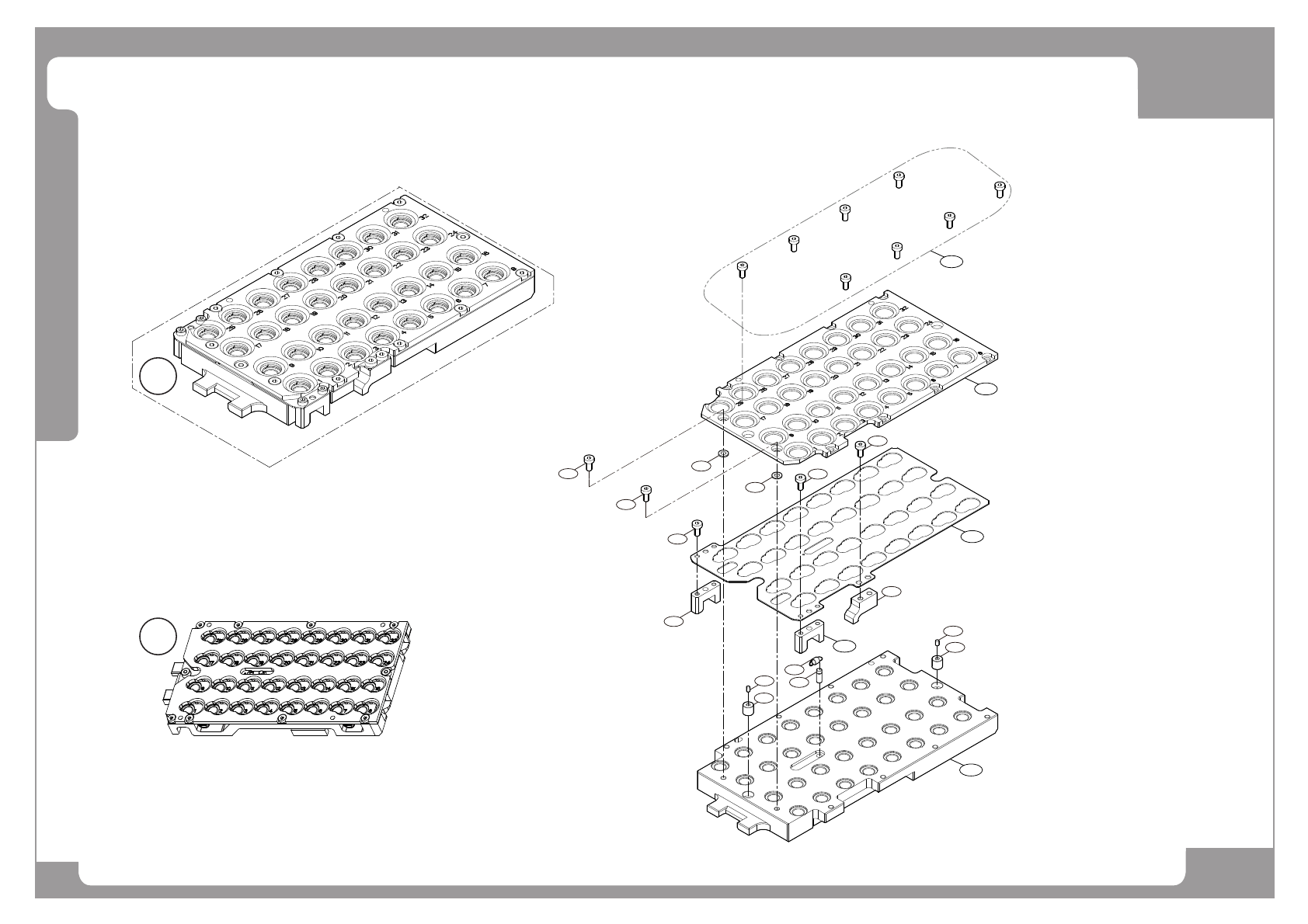

ANC-HS (For VN Nozzle)
A
B
7
8
7
8
9
9
10
10
6
5
3
12
2
12
10
1
4
3
11
10
