Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference.pdf - 第30页

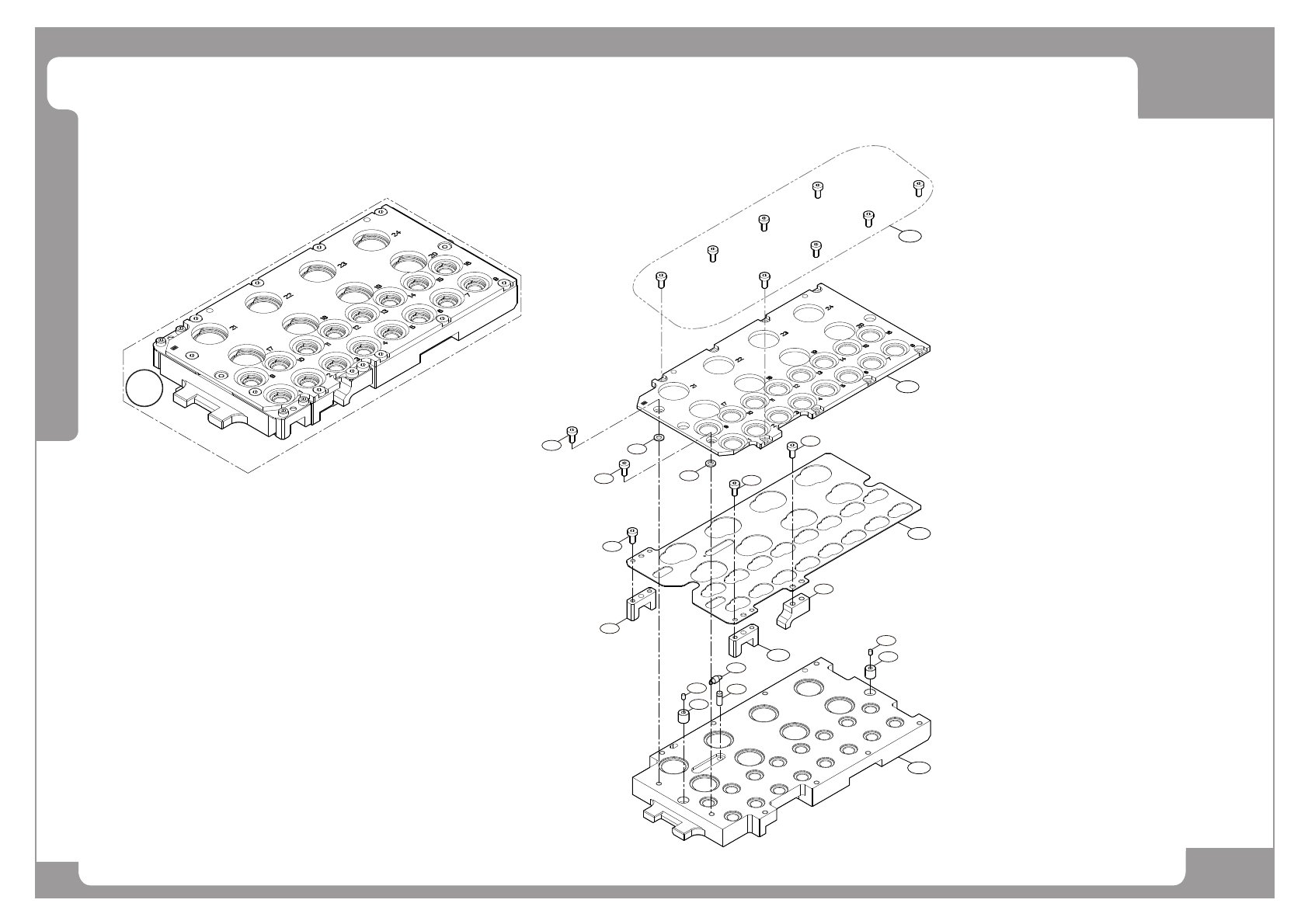

Page +$1:+$ 24 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) ANC-24 (For VN Nozzle) A 7 8 7 8 3 2 10 12 5 6 9 9 12 10 10 4 3 1 11 10
Page
+$1:+$
23
ANC - BASE
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-007915A ANC_BASE_ASSY 4
1 HP03-900110 CYLINDER-CDUJ10-8 HP03-900110 1
2 HP14-900111 SPCON-AS1201FM304S-SMC 2
3 J70563701A CYR_BKT 1
4 FC09-002881A V1P060-SHUTTER_MOVER -00 1
5 J70563698A CYR_JOINT 1
6 FC24-000003A FRONT_FIXER 1
7 FC18-001649 CCG2-26.4 1
8 FC38-000003 SPRING-WT5-25 1
9 FC07-000846A V1P060-FRONT_FIXER_SUP-00 1
10 J71561085A ANC_BASE 1
11 AM03-013414A ANC SENSOR_CABLE_ASSY;V1_CONV_027 3 J90834419A
12 J70563702A REAR_FIXER 2
13 FC18-000127 DOWEL_PIN[MS3-8] 3
Page
+$1:+$
24
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
ANC-24 (For VN Nozzle)
A
7
8
7
8
3
2
10
12
5
6
9
9
12
10
10
4
3
1
11
10
Page
+$1:+$
25
ANC-24 (For VN Nozzle)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011540A ASSY,ANC-MTV1PA-NC202A-ANC24_ASSY 1
1 FC07-001070A BLOCK-MTV1PP-NC107A-24ANC_BLOCK 1
2 FC07-001081A BLOCK-MTV1PP-NC114A-ANC_SNS_DOG 1
3 FC07-000990A BLOCK-MTV1PP-NC104A-32ANC_SH_BLOCK 2
4 FC09-003375A BRACKET-MTV1PP-NC109A-24ANC_SHUTTER 1
5 J70561084A SPRING_SUPPORT J70561084A 2
6 FC38-900021 EXPAND_SPRING BWY3-10 1 FC38-000125A
7 J71561092A MARK_SUPPORT_A 2
8 J74551006A MARK_PIN J74551006A 2
9 FC07-000991A BLOCK-MTV1PP-NC105A-32ANC_SPACER 2
10 FC18-001874 SCREW-CBS3-6;HEX,RH,M3,0.5,6,S45C 12
11 FC07-001071A BLOCK-MTV1PP-NC108A-24ANC_PLATE 1
12 FC18-902710 SOCKET HEAD CAP SCREW M2.5*6 (NI/ZN) 4
13 J606110636 DOWEL PIN 24 MSI-6
