Page
+$1:+$
77
Conveyor(7/7)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)

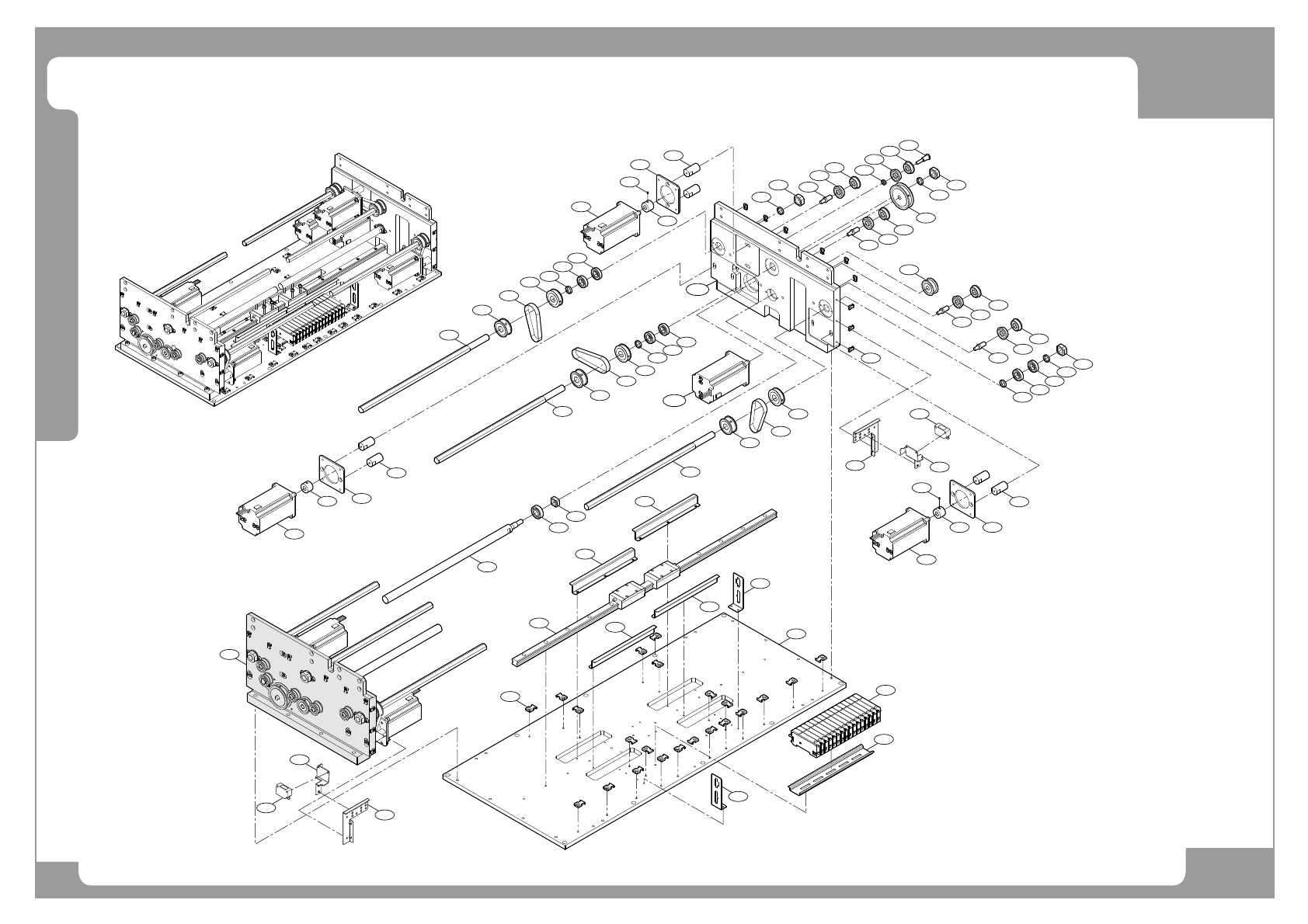

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP08-900081 STEPPING_MOTOR DU13H713S-50 8
2 J71531393A PULLEY_FLAT_BELT_MOTOR J71531393A 6
3 FC30-001031A PLATE-MOTOR_PLATE_V1P 6
4 J70532148A MOTOR_PLATE_SUPPORT 12
5 J70532063A FLAT_PULLEY_SPACER J70532063A 12
6 MC03-900114 BEARING B6901ZZ 12
7 FC18-900921 LOCK_NUT;RN12 6
8 MC19-000438A SHAFT-WIDTH_TENSION_PIN_2_VP 8
9 MC03-900080 BALL BEARING[608ZZ] 20 MC03-900121
10 J71531395A PULLEY_LEAD_SCREW J71531395A 2
11 J71531392A PULLEY_WIDTH_MOTOR J71531392A 2
12 J70532062A WIDTH_TENSION_PIN J70532062A 2
13 FC18-903190 PROFILE MOUNT DIA4.0 40
14 FC29-001428A STAND-FIX_STAND_REAR_MID 1
15 MC13-000040A SPLINE-SPLINE_H_347 6
16 J71531394A PULLEY_SPLINE J71531394A 6
17 MC05-000144 TIMING BELT-186-3GT-9-UNITTA;3GT,186,3 4
18 MC19-000424A PULLEY-MOTOR_S2M 6
19 MC05-900076 TIMMING_BELT-WIDTH_MOTOR 216-3GT-9 2
20 FC18-900919 LOCK NUT[RN-10] 2
21 MC03-900023 BALL BEARING 2
22 MC13-000039A SCREW,LEAD-LEAD_SCREW_374 2
23 FC29-001427A STAND-FIX_STAND_FRONT_MID 1
24 J70532081A AMP_CABLE_COVER J70532081A 4
25 MC13-900112 LM_GUIDE SBI15HL-2-K1-710-N 1
26 FC30-001032A PLATE-PLATE_MIDDLE_STAND 1
27 J70532084A WIDTH_MOTOR_CONNECT_BKT J70532084A 2
28 EP19-900172 SENSOR_AMP E3X-DA21-S 2M 16
29 RM01-000596A RAIL-DIN_RAIL-200 1
30 FC18-903238 WASHER_WSSM10-5-3-MISUMI WSSM10-5-3 1
31 AM03-019175B CABLE ASSY-PCB DETECT S16 PHOTO SNS CAB 1 EXCEN PRO(D)
Page
+$1:+$
78
Conveyor(7/7)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC09-007271A BRACKET-BUF_SNS_BKT_ADJ_F_CX 1 EXCEN PRO(D)
33 FC09-007273A BRACKET-BUF_SNS_BKT_BASE_F_CX 1 EXCEN PRO(D)
34 FC09-007270A BRACKET-BUF_SNS_BKT_BASE_R_CX 1 EXCEN PRO(D)
35 FC09-007272A BRACKET-BUF_SNS_BKT_ADJ_R_CX 1 EXCEN PRO(D)
36 AM03-019178B CABLE ASSY-PCB DETECT S5 PHOTO SNS CABLE 1 EXCEN PRO(D)
