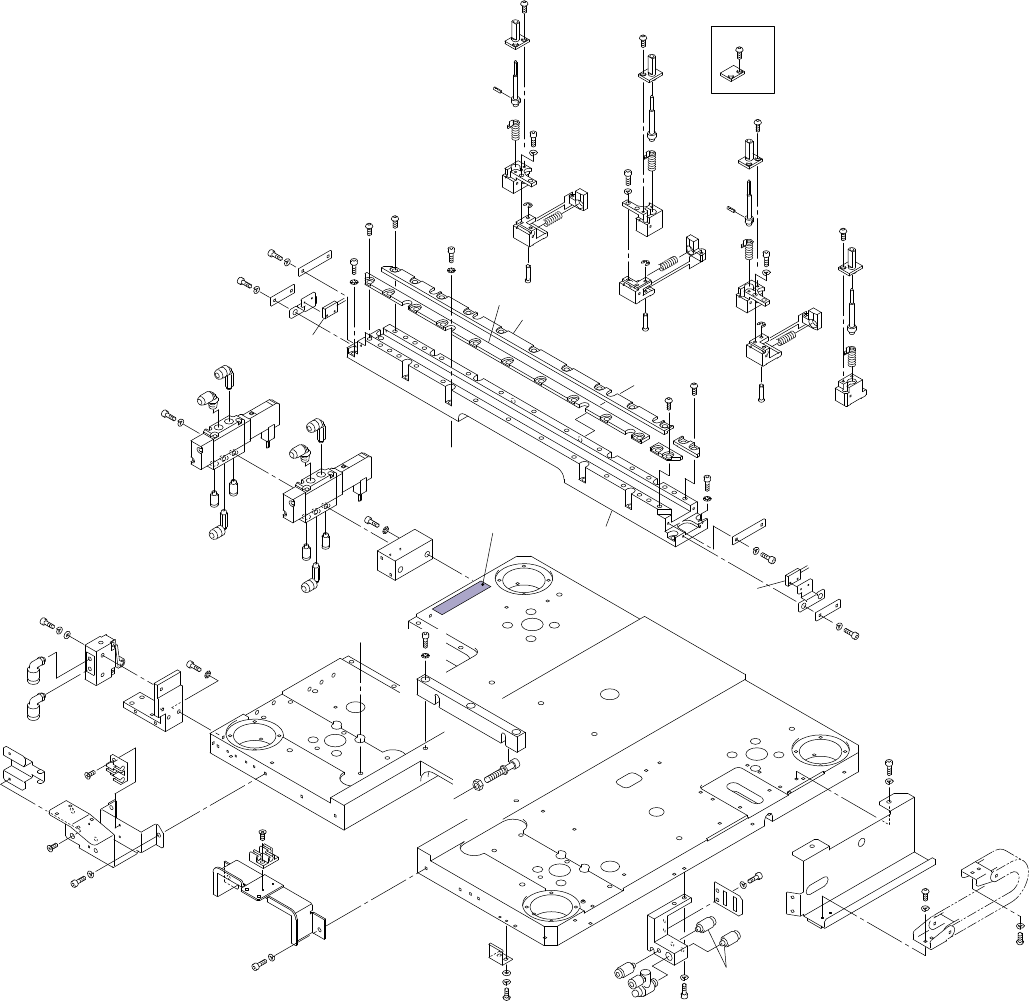

8.1.基板ｸﾗﾝﾌﾟ(DGSS)
8.1.Board clamping unit(DGSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
141 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
142 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
143 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
144 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
145 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X25L
146 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L
147 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
148 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
149 W1020H
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2.5M/M
150 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
151 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
152 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
153 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
154 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4)
155 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
156 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
157 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L
158 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
159 N1080A
NUT, HEX
ﾅｯﾄ 六角         
M4 P=0.7
160 N1081T
NUT, HEX
ﾅｯﾄ 六角         
M4 3ｼｭ
161 N1086A
NUT, HEX
ﾅｯﾄ 六角         
M6 P=1.0 3ｼｭ
162 DGSS0270 2 LOCATR 当金
163 DGSS0520 1 BKT BKT
164 DCSS0420 1 GUIDE ｶﾞｲﾄﾞ
165 DCSS0430 1 GUIDE ｶﾞｲﾄﾞ
166 H5264T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2X4L
167 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X25L .
PARTS LIST CP-743ME,CP-742ME ver03
8 - 4
8.1.基板ｸﾗﾝﾌﾟ(DGSS)
8.1.Board clamping unit(DGSS)
逆流れ
Reverse panel flow
x6
81
81
81
46
44
47
45
47
45
46
44
46
44
78
65
83
83
133
69
69
67
67
123
123
123
72
72
145
145
139
139
65
65
65
105
105
45,47
82
82
133
133
133
133
155
66
66
66
66
66
68
68
68
70
70
70
81
81
123
123
145
139
145
139
71
71
71
65
65
44,46
83
83
133
133
133
69
66
81
67
123
72
145
139
145
139
65
65
105
45,47
82
82
133
98
100
99
99
101
101
11
148
154
155
156
143
99
101
149
147
151
152
150
101
98
99
100
144
134
17
79
144
136
80
144
136
142
147
160
147
77
76
3
3
141
141
141
141
141
141
141
141
74
74
75
75
80
136
144
108
108
18
79
144
136
112
138
145
145
157
19
145
138
138
145
36
35
111
159
145
103
111
132
132
161
39
49
145
138
102
130
41
145
138
131
102
130
51
110
110
145
158
140
124
38
146
138
A
A
B
B
153
133
153
16
16
96
114
121
18
122
116
98
136
136
82
97
97
136
136
135
134
133
82
132
120
96
97
97
120
111
112
120
73
21
20
20
21
21
20
21
19
6
7
120
109
107
120
3
27
128
118
逆流れ (Option)
Right-to-Left Board Flow
1
2
4
160
147
8.2.基板クランプ(DGSS)
8.2.Board clampig unit(DGSS)
8.2.基板クランプ(DGSS)
8.2.Board clampig unit(DGSS)
CP-743ME,CP-742ME PARTS LIST ver03
8 - 5
8.2.基板ｸﾗﾝﾌﾟ(DGSS)
8.2.Board clamping unit(DGSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
3 DGSS0032 1 GUIDE ｶﾞｲﾄﾞ
11 DGSS0310 1 SPACER ｽﾍﾟｰｻ
17 DGSS0420 1 BKT, SENSOR BKT ｾﾝｻ
18 DGSS0430 1 BKT, SENSOR BKT ｾﾝｻ
19 DGSS0530 1 BKT BKT
35 DGSS0350 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
36 DGSS0360 1 BKT BKT
38 DGSS0111 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ
39 DGSS0370 1 HOLDER ﾎﾙﾀﾞ
41 DGSS0120 1 BKT BKT
44 DGSS0440 2 PIN, LOCATING ﾋﾟﾝ 位置決め φ3
45 DGSS0450 2 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ3
46 DGSS0460 2 PIN, LOCATING ﾋﾟﾝ 位置決め φ4
47 DGSS0470 2 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ4
49 DCSS0370 1 BKT BKT
51 DCSS0330 1 BKT, RETAINER BKT 押え
65 ACSSS8020 4 DOG ﾄﾞｯｸﾞ
66 CSSS1200 3 PIN, PIVOT ﾋﾟﾝ 支点
67 CSSS1150 2 SLIDER ｽﾗｲﾀﾞ
68 CSSS1180 1 SLIDER ｽﾗｲﾀﾞ
69 CSSS1160 2 LEVER ﾚﾊﾞｰ
70 CSSS1190 1 LEVER ﾚﾊﾞｰ
71 CSSS1170 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
72 CSSS1140 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
74 WSS4884 1 CLAMPER ｸﾗﾝﾊﾟ
75 WSS4874 1 CLAMPER ｸﾗﾝﾊﾟ
76 WSS4921 1 COVER 蓋
77 WSS4934 1 COVER 蓋
78 WSS4892 1 BLOCK ﾌﾞﾛｯｸ
79 WSS4742 2 PLATE ﾌﾟﾚｰﾄ
80 WSS4351 2 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
81 WSS5330 3 SPRING ｽﾌﾟﾘﾝｸﾞ
82 WSS4312 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
83 WSS4302 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
98 H10661 2
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL F15T4-F4-PL3-DC24V
99 Y30491 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJW06-01S
100 Y3049W 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S
101 S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01
102 H5056M 2 HOLDER ﾎﾙﾀﾞ TM-06
103 K53474 1
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2311F-01-06S(ｼﾛ)
105 H2047A 4 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾟ3X8
108 S4032T 2
SENSOR
ｾﾝｻ UM-T50TV
110 Y3079N 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
111 Y3086Y 3
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KQ2S06-M5
PARTS LIST CP-743ME,CP-742ME ver03
8 - 6
8.2.基板ｸﾗﾝﾌﾟ(DGSS)
8.2.Board clamping unit(DGSS)
