7. Outline of Actions

(1) Install the feeder for which the procedures related to "Registration

of Component Data" and "Linkage between Components and

Feeder" are completed.

Refer to the instruction manual of "ACV Terminal" for the detailed

information on "Registration of Component Data" and "Linkage be-

tween Components and Feeder".

(2) The procedure to check for wrong installation of a feeder should be

taken manually for each feeder.

The ACV data is checked for all feeders used for the current pro-

duction model. If no error is found, the machine keeps on working.

When the ACV data is checked in advance at the "ACV

Check Status" tab sheet, no checking operation is per-

formed at starting time of the machine.

• When a feeder is not installed correctly on the feeder base or a

feeder has caused a component shortage error, the machine in-

dicates the error and stops running.

(3) Press the [START] button on the operation panel. The automatic

operation starts.

• When an error is detected after all feeders are checked, the ma-

chine stops immediately in an error condition and an error mes-

sage is issued.

• All feeders are checked before the machine is restarted ([START]

Button "ON") after all feeders are checked once completely with-

out any error being found and the automatic operation is stopped.

• When the machine has stopped in an error condition due to wrong

installation of a feeder, the operation becomes available after the

feeder is correctly set in position.

[Pallet with Tag Memory (Option Selected)]

• When the machine is restarted, the ACV data is checked for all tray

pallets.

7. Outline of Actions

Note

0311-001 10 AIT01EGP

8. Operation

8.1 "Opn. Mode" Tab Sheet

This tab sheet enables the operator to specify the operation mode for

the ACV system.

To use the ACV function, it is required to specify "Enable" for the ACV

function.

• Sheet Layout

When the "Opn. Mode" tab is pressed in the "OPN. MODE" window

(submenu), the corresponding tab sheet appears. Press the [Next]

button. The following tab sheet appears.

Fig. 3

8. Operation

0311-001 11 AIT01EGP

*1 "ACV Function" Group Box

[Enable] Button

The ACV function becomes available.

[Disable] Button

The ACV function becomes unavailable.

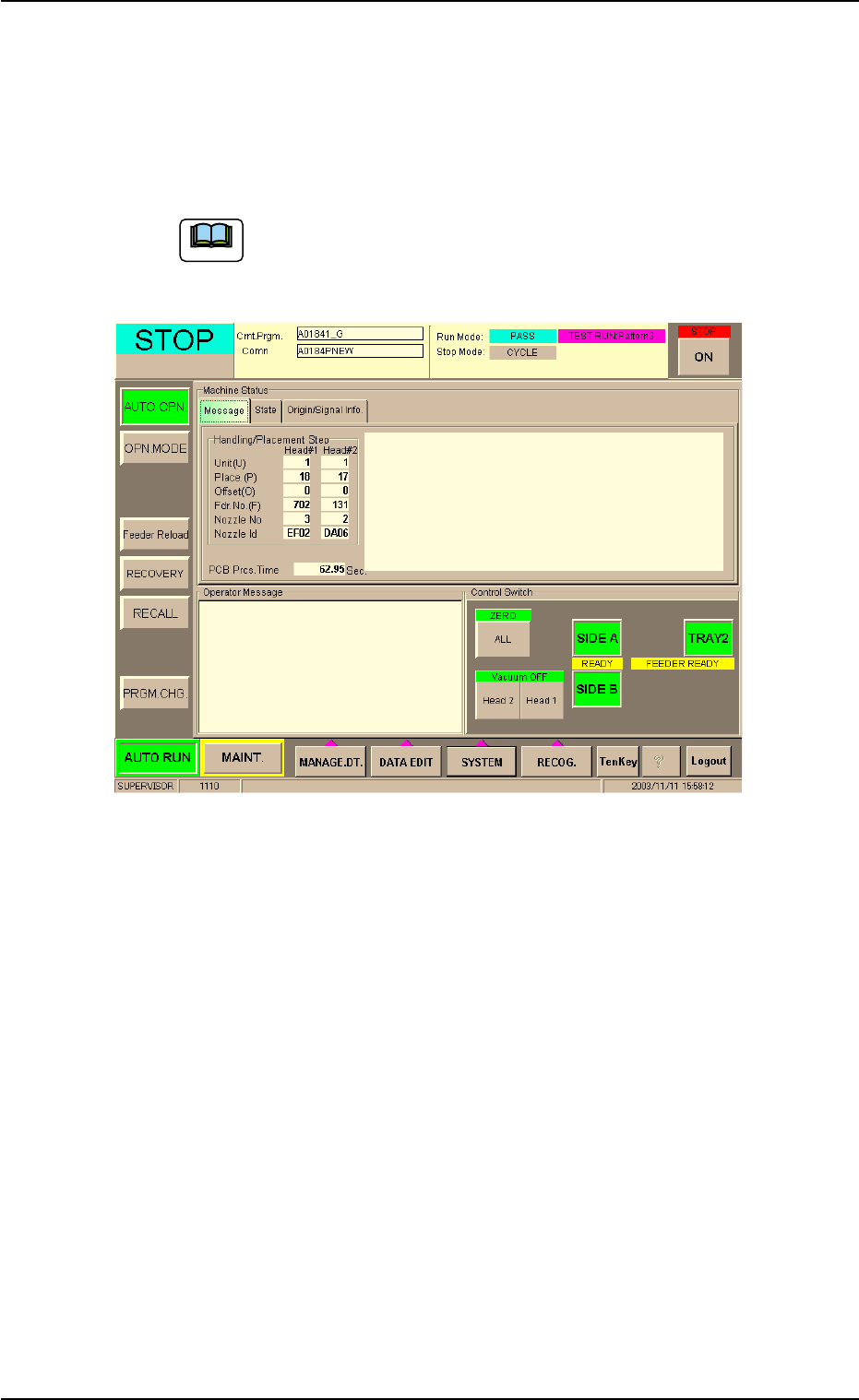

When "Enable" is set for the ACV function and the ACV

checking is started, "ACV Check Mode" appears in the "Op-

erator Message" pane of the "AUTO OPN." window.

Fig. 4

*2 "Alarm for Component Remainder" Group Box

An alarm for component remainder can be issued according to the

component remainder data which is read for each feeder.

The alarm message "Alarm for Component Remainder" appears in

the "Operator Message" pane and the feeder No. related to the alarm

can be checked in the "ACV Check Status" tab sheet.

[Comp Remainder] Button

When the value under "Comp Rem" becomes smaller than the

specified one in the "ACV Check Status" tab sheet, an alarm for

component remainder is issued.

[P.C.B. Remainder] Button

When the value under "PCB Rem" (the estimated number of P.C.B.'s

which can be produced using the loaded components) becomes

smaller than the specified one in the "ACV Check Status" tab sheet,

an alarm for P.C.B. remainder is issued.

8.1 "Opn. Mode" Tab Sheet

Note

0311-001 12 AIT01EGP
