When the [Screens] button (*5) is pressed in the tab sheet (Fig. 9), the following tab sheet appears. Fig. 10 Refer to "8.3.1 "F1", "F3", and "F4" T ab Sheets" for the detailed inf…

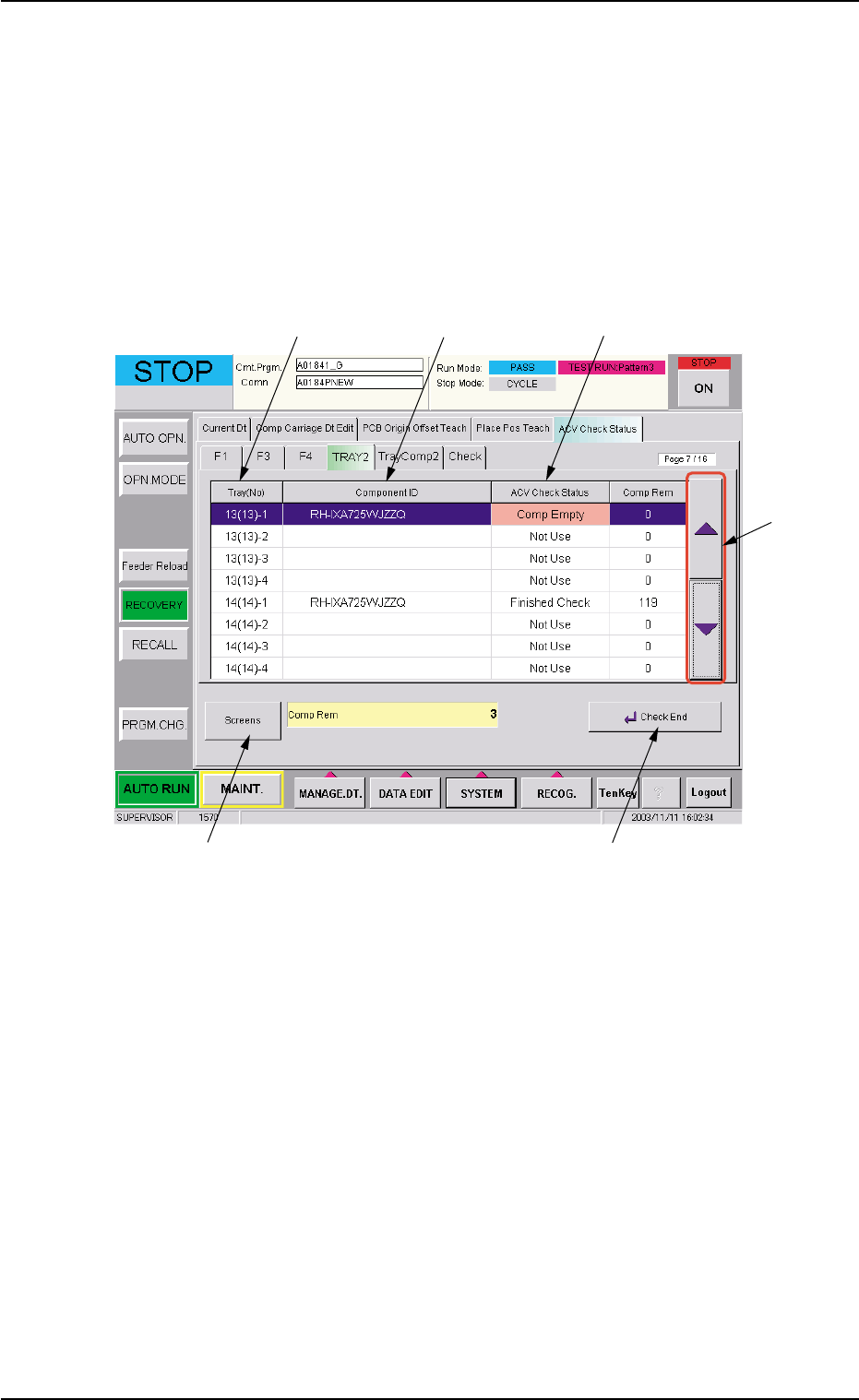

8.3.2 "TRAY2" Tab Sheet
This enables the operator to confirm the ACV check status for each
individual blocks of Multi-Layer Tray Feeder #2.
• Sheet Layout
When the "TRAY2" tab is pressed in the "RECOVERY" window
(submenu), the following tab sheet appears.
Fig. 9
8.3 "ACV Check Status" Tab Sheet
*1 *2 *3
*4
*5 *7
0311-001 20 AIT01EGP

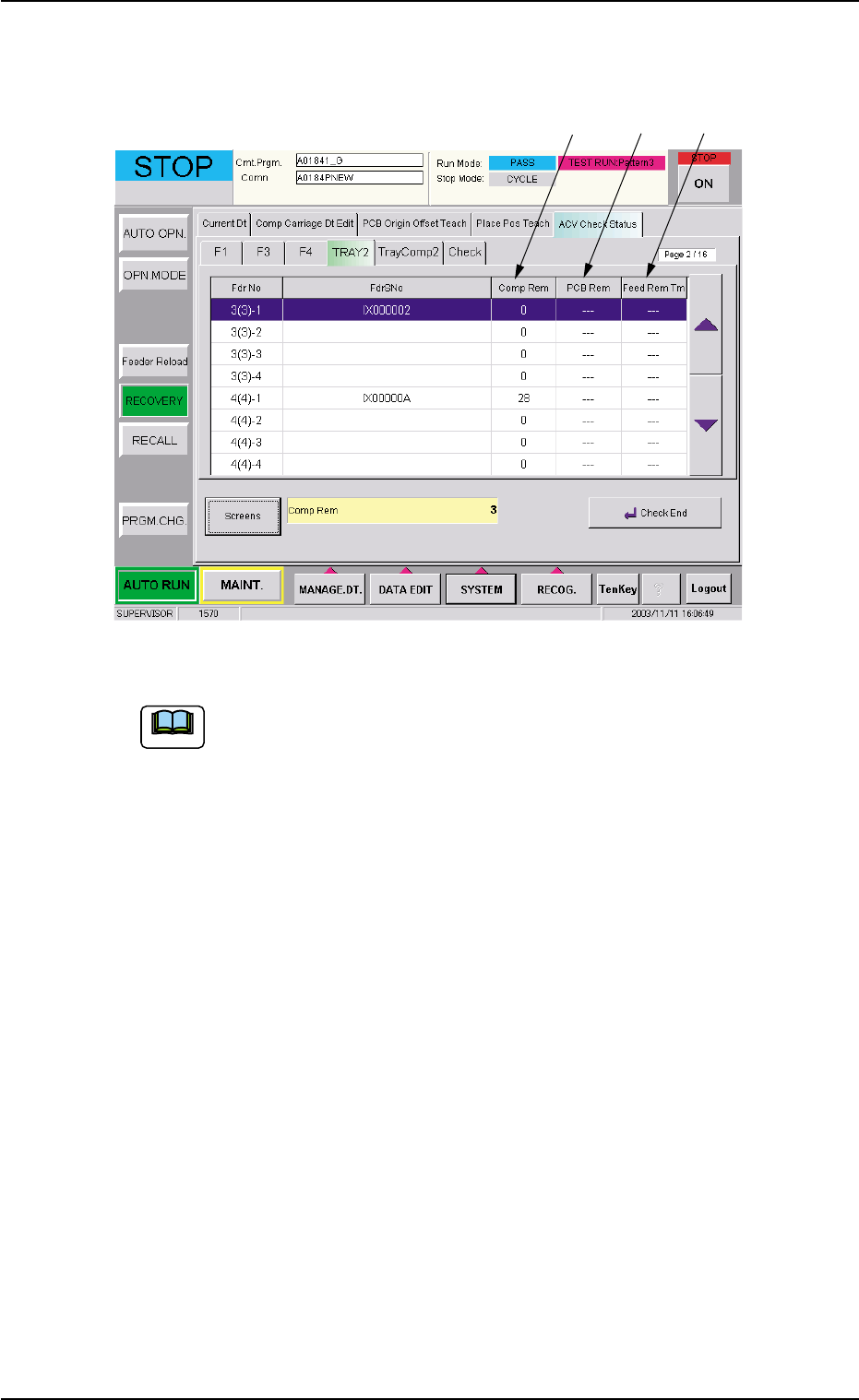

When the [Screens] button (*5) is pressed in the tab sheet (Fig. 9), the
following tab sheet appears.
Fig. 10
Refer to "8.3.1 "F1", "F3", and "F4" Tab Sheets" for the detailed
information on "*1 through *5" and "*7 through *10".
8.3 "ACV Check Status" Tab Sheet
*8 *9 *10
Note
0311-001 21 AIT01EGP

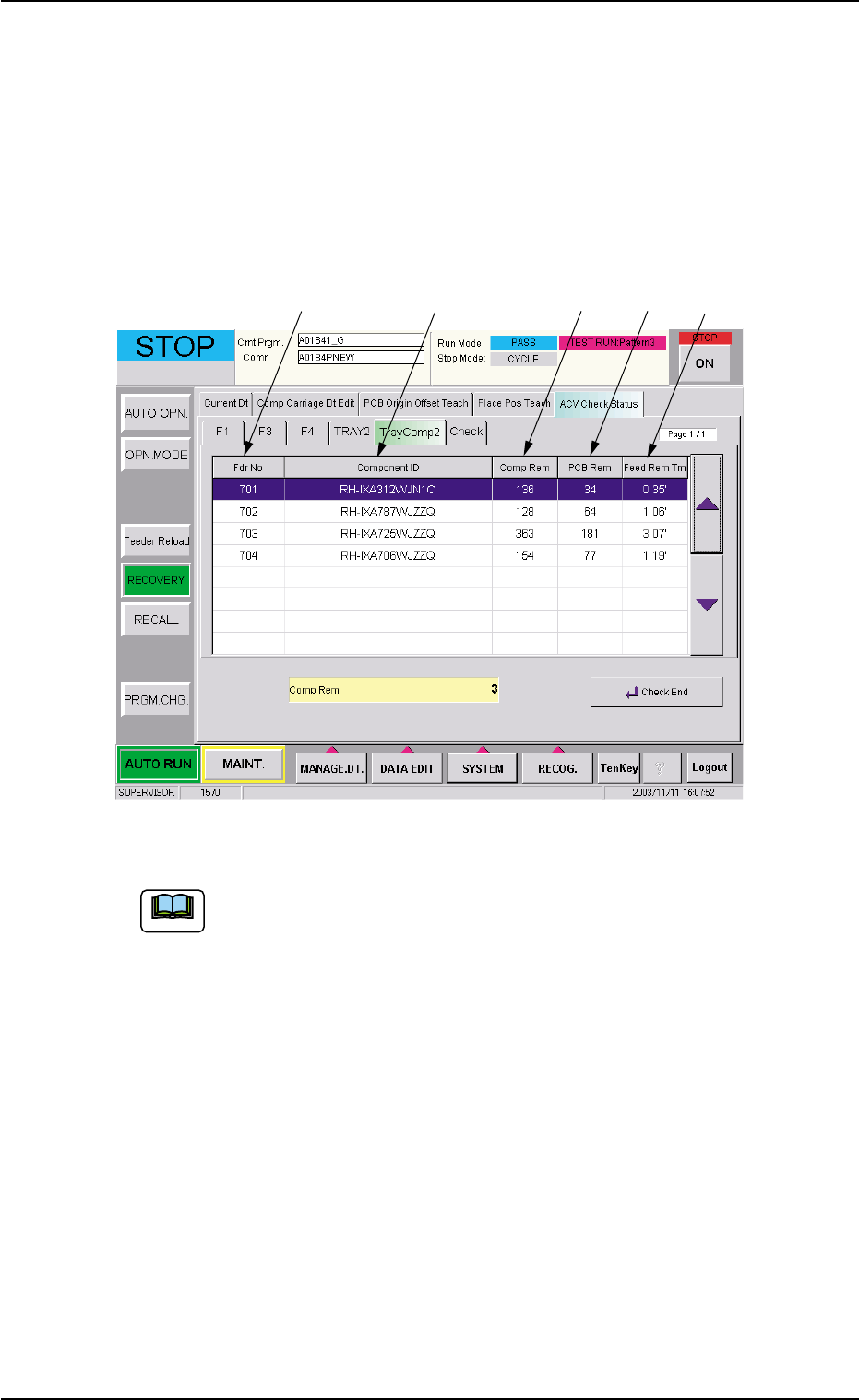

8.3.3 "TrayComp2" Tab Sheet
This tab sheet enables the operator to confirm the ACV check status for
each type of components used for Multi-Layer Tray Feeder #2.
• Sheet Layout
When the "TrayComp2" tab is pressed in the "RECOVERY" window
(submenu), the following tab sheet appears.
Fig. 11
Refer to "8.3.1 "F1", "F3", and "F4" Tab Sheets" for the detailed
information on "*1, *2, and *8 through *10".
8.3 "ACV Check Status" Tab Sheet
*1 *2 *10*8 *9
Note
0311-001 22 AIT01EGP
