1. Scope
This feature is one of the specially designed features of ACV system.
The feeder component data can be managed by reading the barcode
labels affixed on the reels for components, the tape feeders and the
pallets.
2. Function
• Check Function for Wrong Installation of Tape Feeder, Pallet
When the automatic operation is started, this function works to check
if all tape feeder, pallet and components are correctly allocated so as
to prevent any wrong installation of tape feeder, pallet.
• Component Remainder Management
The component supply time can be presumed by managing the num-
ber of remaining components at real time for each tape feeder, pallet.
(Alarm for Component Remainder)
• Tape Feeder and Pallet Management Function
(Offset Management, Pick-up Error Data Management)
This function records and manages the offset values for correcting
any deviation when the tape feeder or the pallet is set. It is also pro-
vided to record and manage any pick-up error.
1. Scope
0311-001 5 AIT01EGP
3. Specifications
Table 1
1. Device • Application for ACV System (Main Machine)
Configuration • Tape Feeder with Barcode Label
• Pallet with Barcode Label (Multi-Layer Tray Feeder)
• Specially for ACV System Pallet with Tag Memory
(Multi-Layer Tray Feeder) (Select Option)
2. Applicable Specially for ACV System Feeder
Feeders • Tape Feeder with Barcode Label
• Pallet with Barcode Label (Multi-Layer Tray Feeder)
• Pallet with Tag Memory (Multi-Layer Tray Feeder)
(Select Option)
Block : Max. 4 Blocks / Pallet
Note : For the tape feeders and the pallets without barcode labels, con-
tact our marketing department or sales agency.
3. Tag Memory, Memory Capacity : 128 Bytes
Pallet Memory Type : FeRAM
(Select Option) Memory Life : 1 billion access times
(No. of access times is total of reading and
writing times)
Data Preservation Time : 10 years
(After the access for writing or reading)
3. Specifications
0311-001 6 AIT01EGP

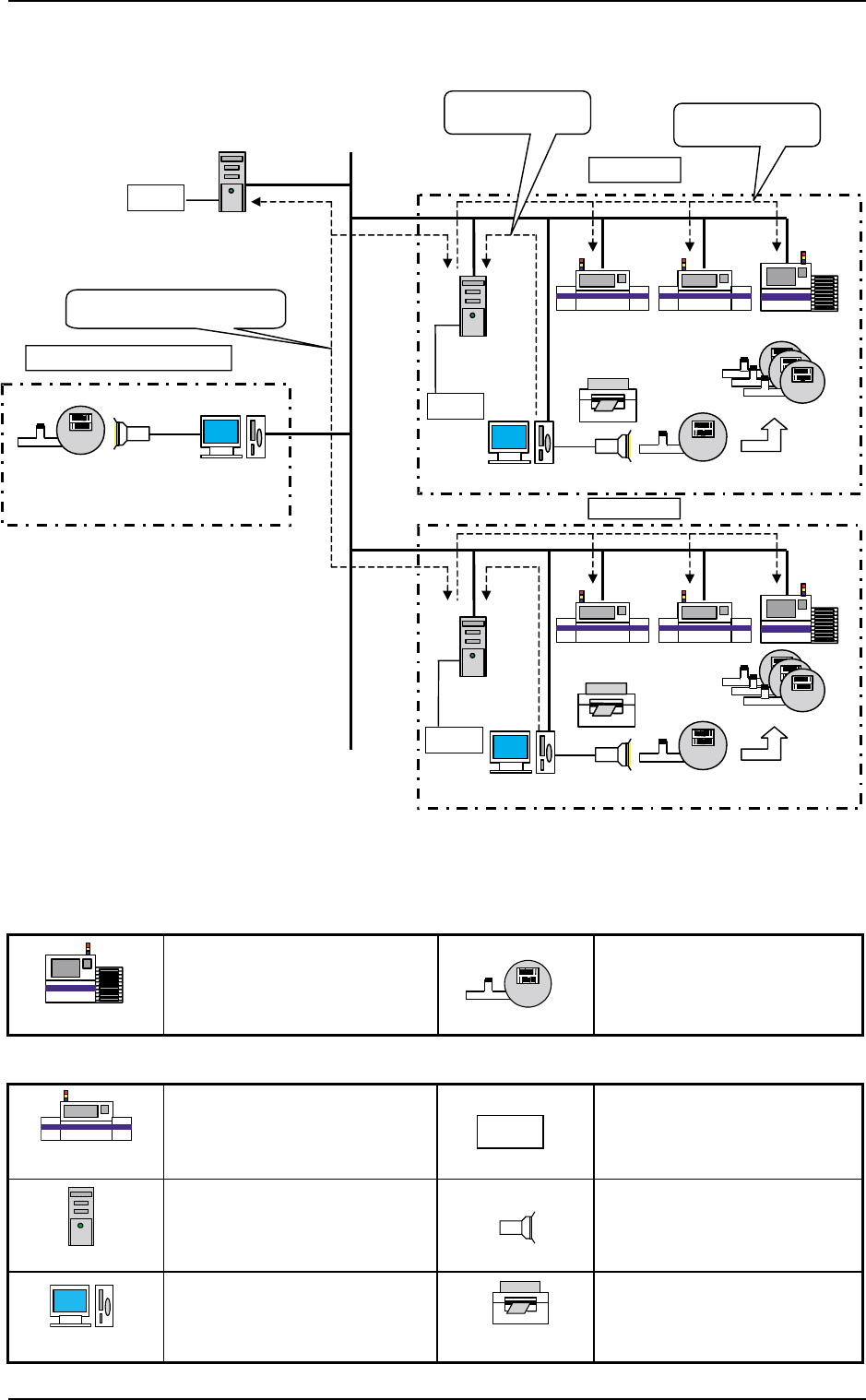

4. ACV System Configuration
Fig. 1
Application for ACV System (TIM-X Series)
Table 2
• ACV System for • Specially for ACV System
TIM-X Series Feeder
(Client)
Others Table 3
• ACV System for • Uninterruptive Power
TCM-X Series Supply (UPS)*
(Client)
• ACV Line Server* • Barcode Scanner*
• ACV Control Server*
(Server)
• ACV Terminal* • Label Printer*
(Client)
Note : Prepare for the * -marked devices on the customer side.
