Support Media V1.15 10/2013 Edition
18
► On the computer with web- access, execute the SUPPORT_MEDIA_DOWNLOAD.EXE tool
and select the appropriate download list using the option File – Open Siplace Prerequisite File.
► After that, the Download Tool will ask for a folder to store downloads. Select an appropriate
location.
NOTICE
Subfolder for download structure required
Prerequisite Analyzer only detects downloaded files, if the relative directory
structure to all Tools and Updates remains consistent. To ensure this, use a new
custom subfolder to store all download content. When transferring to the offline
computer, only this folder with all content needs to be copied.
► Click the Start button to initiate the download.
► After you completed the download of all packages successfully, close the Download Tool.
Transfer the contents of the download folder back to the computer you tried to prepare:
► On the computer you tried to prepare, start Prerequisite Analyzer and when asked, click the
option to select a local Additional Software Search folder.
► After you specified the search folder, click the button Copy offline files to Search Folder.
The following window appears.
Figure 4-7: Source folder selection dialog for copying download files back to local Search Folder
► Inside the Browse For Folder window, ensure that you have a valid connection to the location
of your download files (e.g. USB drive, network path).
Support Media V1.15 10/2013 Edition
19
NOTICE
Windows Vista or newer: User Account Control complicates accessing
network drives in Prerequisite Analyzer
Although the dialog supports accessing network drives, you may have problems
accessing network drives you mapped in Windows Explorer within Prerequisite
Analyzer because of Windows distinguishing between mapped drives during
normal user sessions and admin sessions.
► To access the network drive you mapped during a user session, right- click
on “My Network Places” inside the window, choose “map network drive” and
re- map the network drive inside the session of Prerequisite Analyzer.
► Select the appropriate location or enter the path to the location of your download files as shown
in the picture above.
► Click OK to continue.
Prerequisite Analyzer will now copy the downloaded files from the offline folder to the local
Software Search folder you specified before.
The window will look like this:
Figure 4-8: Prerequisite Analyzer copying files downloaded for offline use to local Search Folder
After the files have been copied, Prerequisite Analyzer will restart checking the Additional Software
Search Folder for needed files. If all required files have been found, you can continue.
4.4.4 Download and install manually option
After you selected the Download and install manually option, Prerequisite Analyzer will show you a
list of missing software packages as shown in the following picture.
Support Media V1.15 10/2013 Edition
20

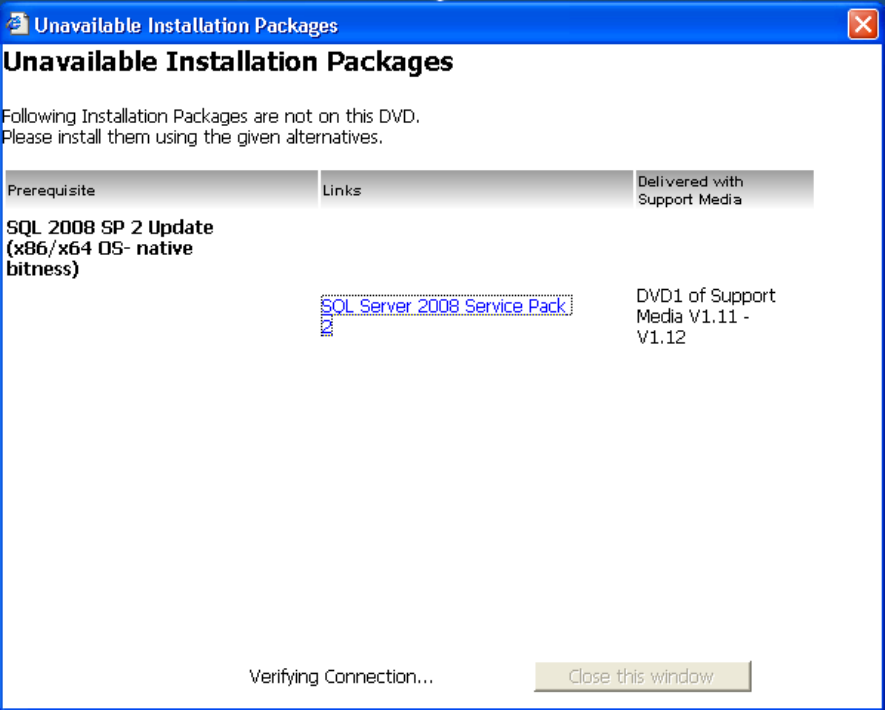

Figure 4-9: Dialog for manual download and installation of missing components
The dialog will display the following information
The description of the required installation package
A link to the manual download of the installation package (if available)
A note, describing where the installation package can be found on a former Support Media
version if it is available.
For some packages, a link to the appropriate installation documentation might be shown
► Use this list to retrieve and install the missing software packages manually
► After you installed the missing packages manually, close and restart Prerequisite Analyzer to
detect the additionally installed software and continue preparing your computer.
