FILE NAME E019-0230000.VSD DATE 2010.09.14 CHANGER
< 2. 8030 DL : I/O MAP : OUTPUT-PART B>
No. MCS Label I/O Discription
1 0 B3-00 OUT Button STOP Lamp
2 1 B3-01 OUT Button START Lamp
3 2 B3-02 OUT
4 3 B3-03 OUT Alarm Sound
5 4 B3-04 OUT Tower Lamp GREEN
6 5 B3-05 OUT Tower Lamp YELLOW
7 6 B3-06 OUT Tower Lamp RED
8 7 B3-07 OUT Head 2D LED
9 8 B3-08 OUT Servo Power Enable
10 9 B3-09 OUT
11 10 B3-10 OUT LANE1 Backup UP Sol
12 11 B3-11 OUT LANE1 Backup Down Sol
13 12 B3-12 OUT LANE2 Backup UP Sol
14 13 B3-13 OUT LANE2 Backup Down Sol
15 14 B3-14 OUT
16 15 B3-15 OUT
17 16 B3-16 OUT
18 17 B3-17 OUT
19 18 B3-18 OUT
20 19 B3-19 OUT
21 20 B3-20 OUT
22 21 B3-21 OUT
23 22 B3-22 OUT Conveyor LANE1 NG Buffer Machine Signal
24 23 B3-23 OUT Conveyor LANE2 NG Buffer Machine Signal
8030 DUAL LANE OUTPUT IO MAP
< 1. 8030 DL : I/O MAP : O UTPUT-PART A>
No. MCS Label I/O Discription
1 0 B1-00 OUT
2 1 B1-01 OUT
3 2 B1-02 OUT Conveyor LANE1 Work Stopper UP Sol (LR)
4 3 B1-03 OUT Conveyor LANE1 Work Stopper DOWN Sol (LR)
5 4 B1-04 OUT LANE1 Barcode Trigger
6 5 B1-05 OUT
7 6 B1-06 OUT
8 7 B1-07 OUT
9 8 B1-08 OUT
10 9 B1-09 OUT Conveyor LANE1 Backup UP Sol
11 10 B1-10 OUT Conveyor LANE1 Backup DOWN Sol
12 11 B1-11 OUT Conveyor LANE1 Height Guide CLOSE Sol
13 12 B1-12 OUT
14 13 B1-13 OUT
15 14 B1-14 OUT Conveyor LANE1 Entry SMEMA OUT
16 15 B1-15 OUT Conveyor LANE1 Exit SMEMA OUT
17 16 B2-00 OUT
18 17 B2-01 OUT
19 18 B2-02 OUT Conveyor LANE2 Work Stopper UP Sol (LR)
20 19 B2-03 OUT Conveyor LANE2 Work Stopper DOWN Sol (LR)
21 20 B2-04 OUT LANE2 Barcode Trigger
22 21 B2-05 OUT
23 22 B2-06 OUT
24 23 B2-07 OUT
25 24 B2-08 OUT
26 25 B2-09 OUT Conveyor LANE2 Backup UP Sol
27 26 B2-10 OUT Conveyor LANE2 Backup DOWN Sol
28 27 B2-11 OUT Conveyor LANE2 Height Guide CLOSE Sol
29 28 B2-12 OUT
30 29 B2-13 OUT
31 30 B2-14 OUT Conveyor LANE2 Entry SMEMA OUT
32 31 B2-15 OUT Conveyor LANE2 Exit SMEMA OUT
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY8030 DL
I/O MAP
3 OF 14
E019-0230200

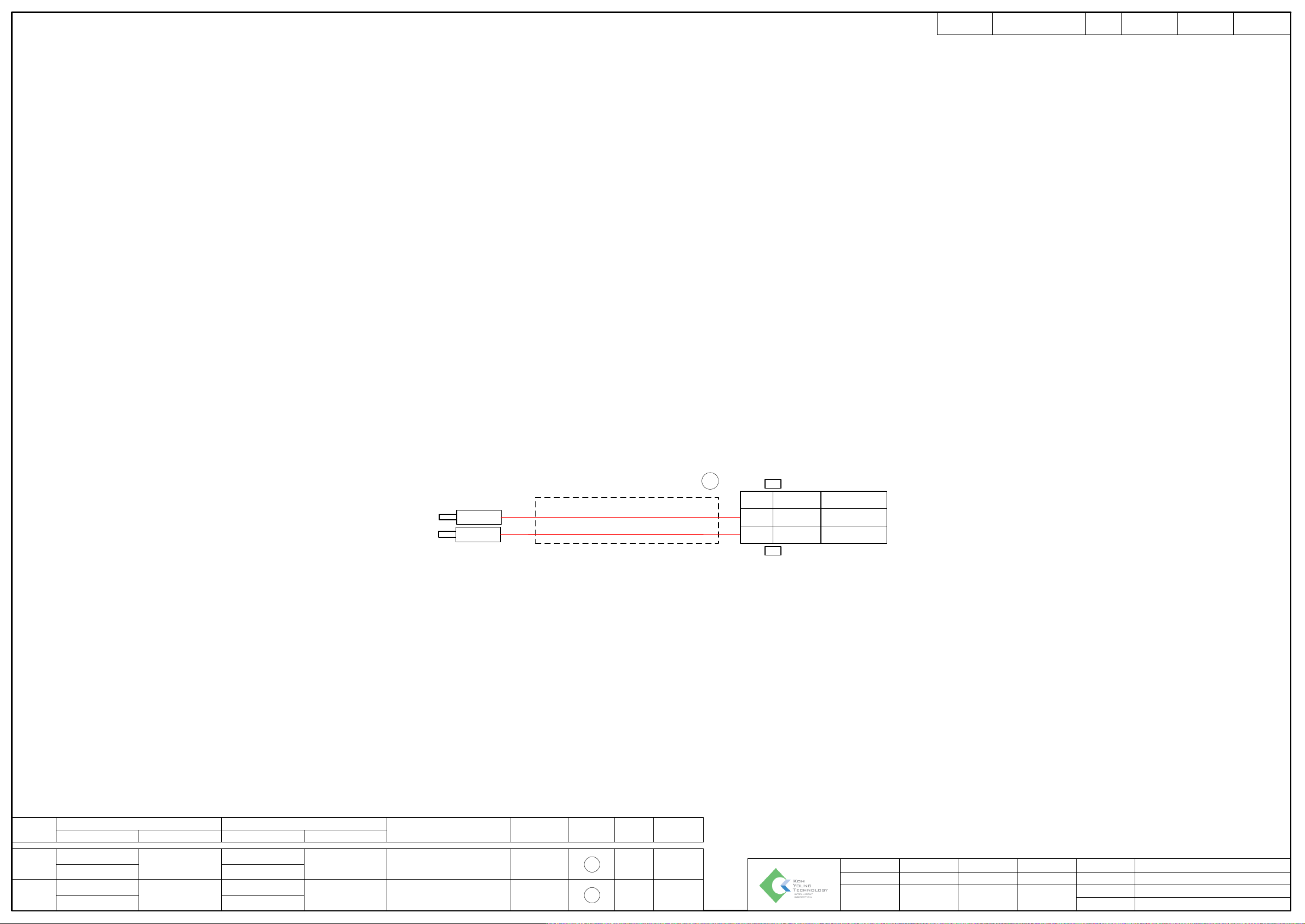

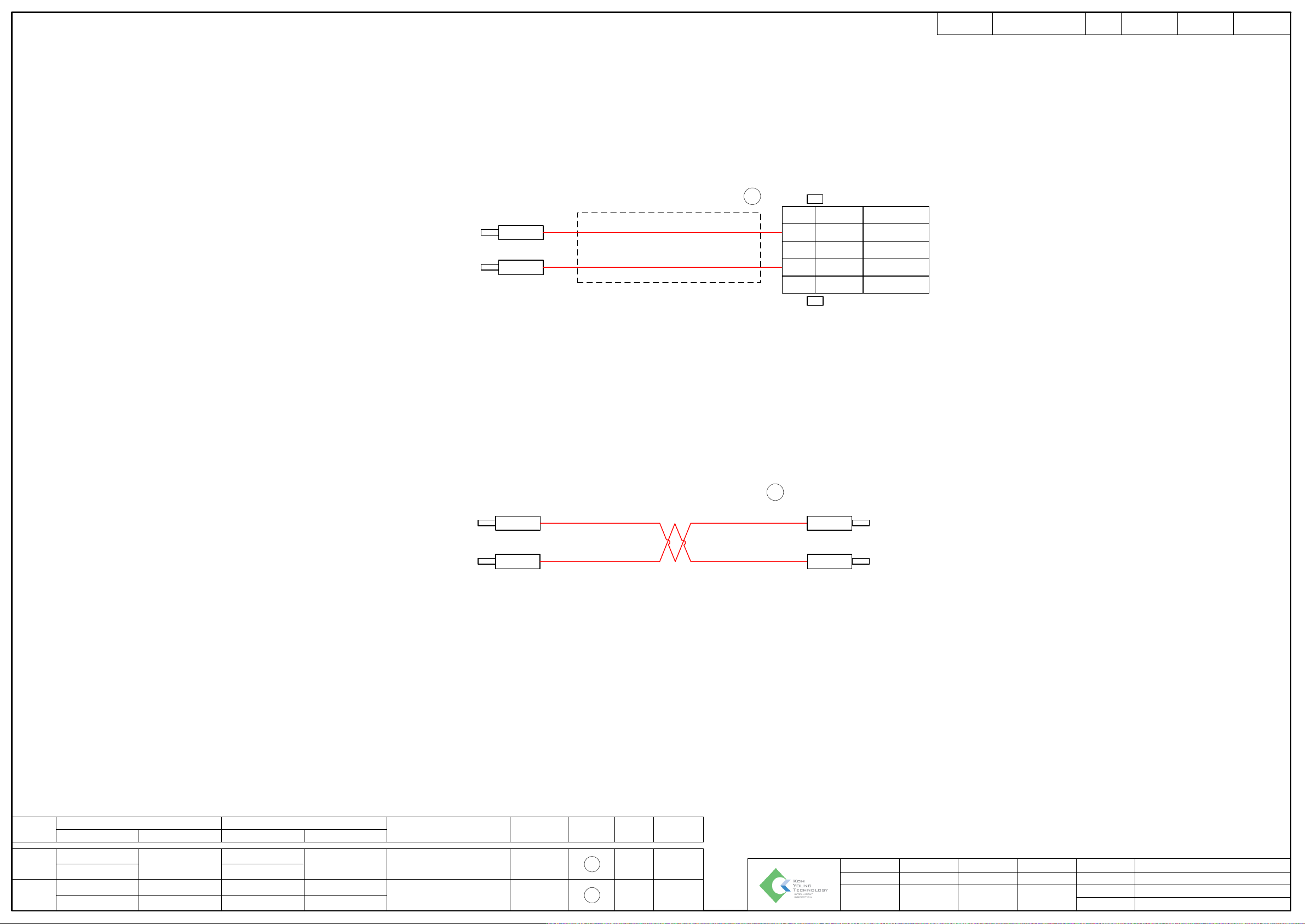

FILE NAME E019-0230000.VSD DATE 2010.09.14 CHANGER
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A IN I/O 24V
T/B03-A10
(Molex)5557-02
I-LUG
UL,2464,#22*2C 1600 1 01
T/B03-B10 I-LUG
1
A OUT I/O 24V
T/B03-A11
(Molex)5557-02
I-LUG
UL,2464,#22*2C 1600 1 02
T/B03-B11 I-LUG
1
I-LUG
I-LUG
RED
BLK
AWG.22
No.
1
2
Color Sig.Name
+24V
G24V
ASS„Y “A” HARNESS PIN MAPPING
ASS‘Y: “A”
1
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY8030 DL
I/O Power Cable 1
4 OF 14
E019-0230300
FILE NAME E019-0230000.VSD DATE 2010.09.14 CHANGER
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A J10 I/O 24V
T/B03-A01
(Molex)5557-04
I-LUG
UL,2464,#22*2C 1000 1 01
T/B03-B01 I-LUG
1
I-LUG
I-LUG
RED
BLK
AWG.22
To POWER UNIT
T/B3-A/B01
3
4
G24
G24
No.
1
2
Color Sig.Name
+24V
+24V
ASS„Y “A” HARNESS PIN MAPPING
ASS‘Y: “A”
1
I-LUG
I-LUG
RED, AWG.22
BLK, AWG.22
To POWER UNIT
T/B3-A/B08
ASS„Y “B” HARNESS PIN MAPPING
ASS‘Y: “B”
1
I-LUG
I-LUG
A
I/O MODULE +24V
T/B03-A08 I-LUG
UL,2464,#22*2C 1100 1 02
I-LUG
1
I-LUG
I-LUG
I/O MODULE G24V
T/B03-B08
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY8030 DL
I/O Power Cable 2
5 OF 14
E019-0230400
