KY8030-2XDL(2P) Part List (20120430).pdf - 第30页
2.2 Z AXIS PLATE 30 5 1 2 3 4
No. Item Code No. Specification Description Type Q’TY Remark
1 V080-L21001-A X FRAME Part 1
2 554011-000005 PM-Y44 SENSOR Part 2
3 V080-L21002-A X FRAME SUPPORT BAR Part 2
4 606011-000047 HSR15R-2UUC1+700LP-II X MAIN LM GUIDE Part 1
5 V080-S00001-A X Y FIX SUPPORT UNIT Part 1
6 V080-S00002-A X Y SUPPORT UNIT
7 V085-310005-A GANTRY STOPPER Part 2
8 601611-000030 BNK1520-3GO+720LC5Y X BALL SCREW (X AXIS) Part 1
9 602611-000012 SDWA-42C-10-14 COUPLING Part 1
10 V080-L21004-A MOTOR BRKT Part 1
11 555013-000013 R2AA06020FXH00(200W) SERVO MOTOR Part 1
12 609021-000005 CG 6 HANDLE Part 1
13 606011-000048 HSR15R-1UUC1+700LP-II X SUPPORT LM GUIDE Part 1
2.1 X FRAME BASE
29

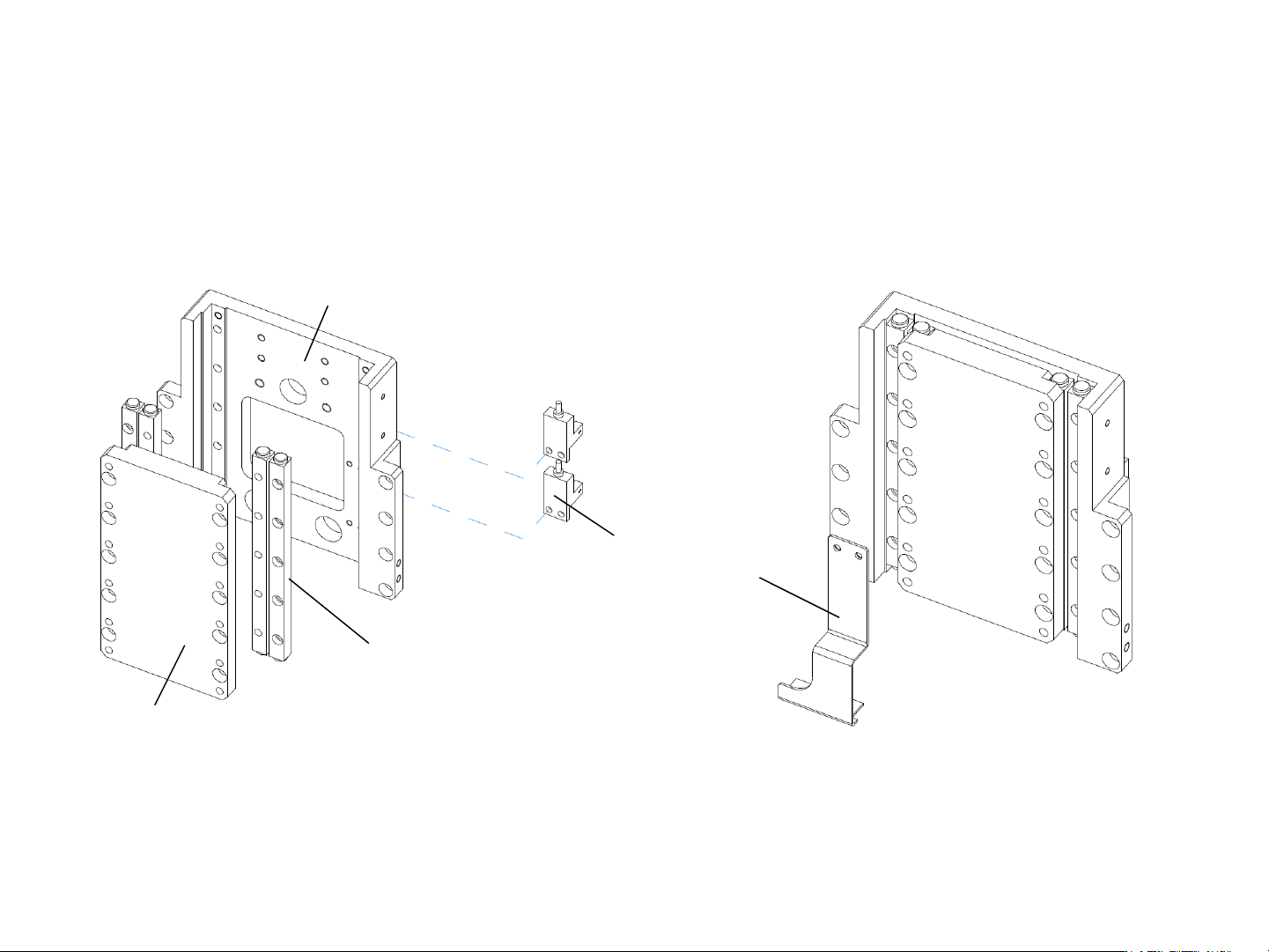

2.2 Z AXIS PLATE
30
5
1
2
3
4
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-210001-A Z-AXIS PLATE Part 1
2 606018-000008 CRW3-125 CROSS ROLLER Part 2
3 P021-900-002-A FIX PLATE Part 1
4 554011-000005 PM-Y44 PHOTO SENSOR Part 2
5 V085-220004-B X AXIS SENSOR DOG Part 1
2.2 Z AXIS PLATE
31
