No. I tem Code No. Specification Description Type Q’TY Remark 1 552012 - 000006 FAZ-C16/2 C IRCUIT PROTECTOR Part 1 CP1 2 552012 - 000005 FAZ-C10/2 C IRCUIT PROTECTOR Part 1 CP2 3 551919 - 000005 DILM17- 10 MAGNETIC CONT…

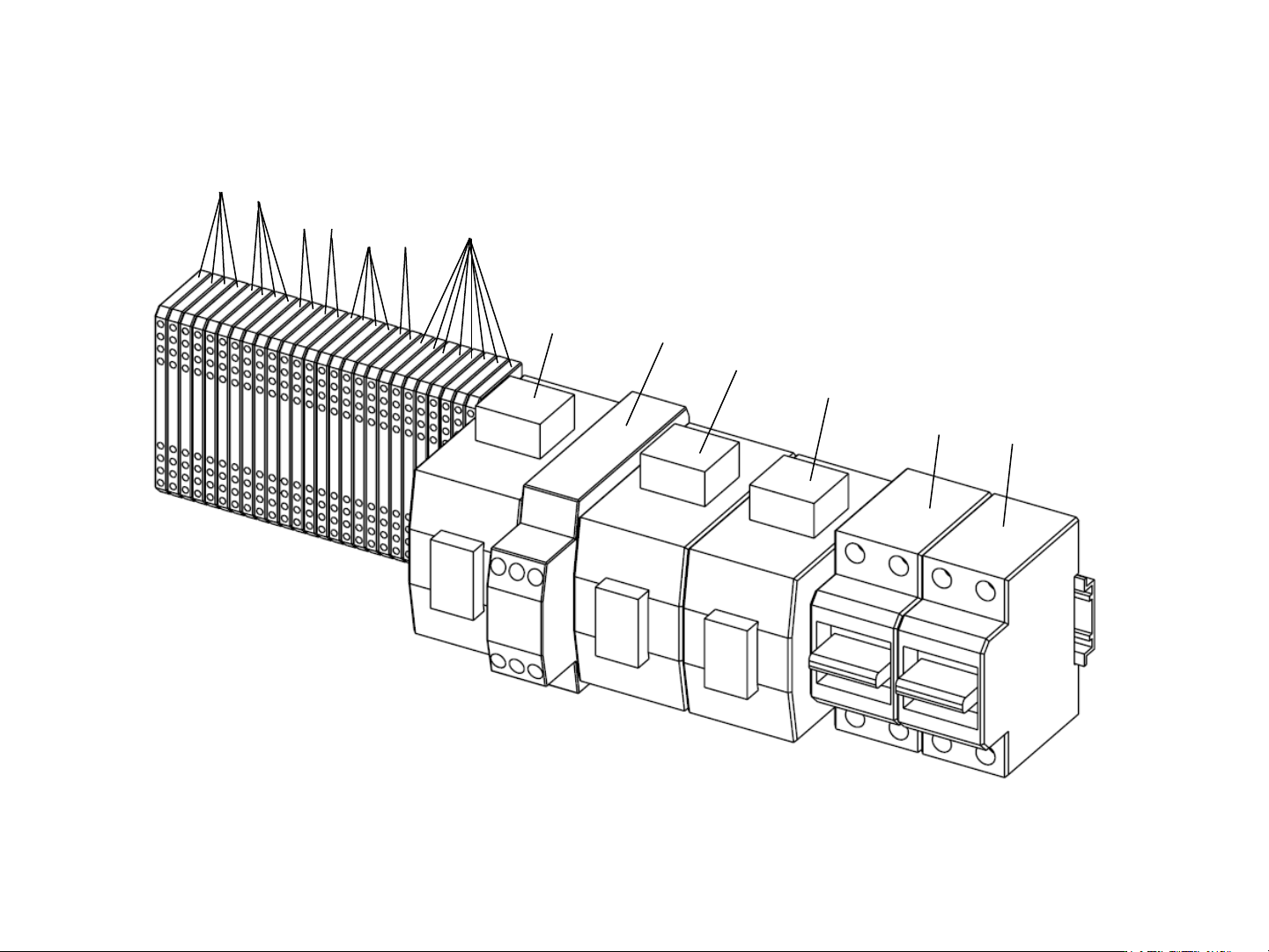

1.2.1.1. MC CP TB
20
1
2
3
4
5
6
7
TB1
8 9
7 8
9
10
TB2 TB3
TB4 TB5
TB7
GND
No. Item Code No. Specification Description Type Q’TY Remark
1 552012-000006 FAZ-C16/2 CIRCUIT PROTECTOR Part 1 CP1
2 552012-000005 FAZ-C10/2 CIRCUIT PROTECTOR Part 1 CP2
3 551919-000005 DILM17-10 MAGNETIC CONTACTOR Part 1 MC1
4 551919-000002 DILM12-10(24DC) MAGNETIC CONTACTOR Part 1 MC2
5 551913-000003 ETS-VS3 POWER RELAY Part 1 RL1
6 551919-000002 DIL12-10 MAGNETIC CONTACTOR Part 1 MC3
7 552112-000004 280-833 (2:2 GREY) TERMINAL BLOCK Part 10 TB1, TB4
8 552112-000005 280-834 (2:2 BLUE) TERMINAL BLOCK Part 4 TB2, TB5
9 552112-000006 280-835 (2:2 ORANGE) TERMINAL BLOCK Part 8 TB3, TB7
10 552112-000007 280-837 (2:2 GROUND) TERMINAL BLOCK Part 4 GND
1.2.1.1. MC CP TB
21

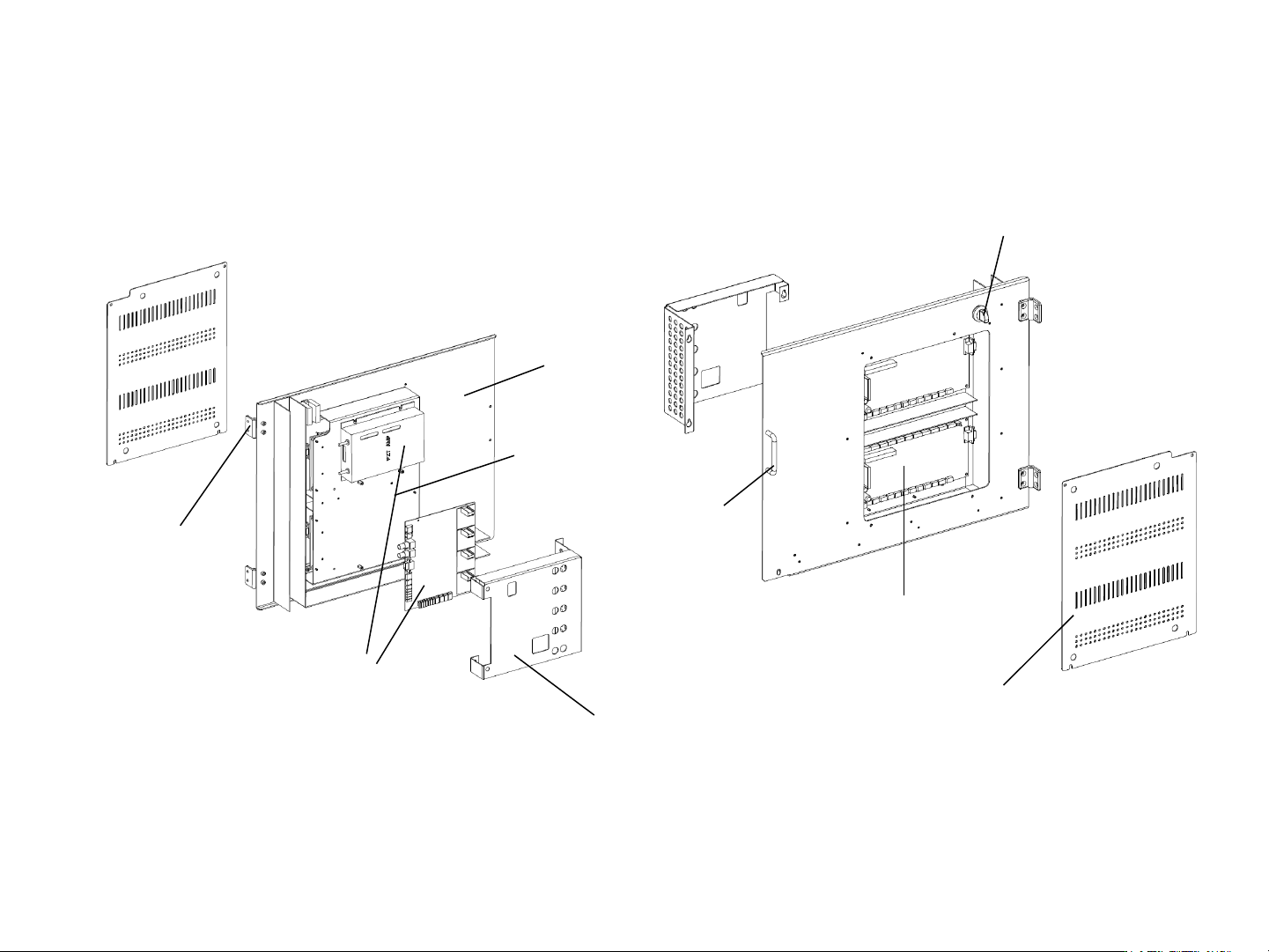

1.2.2. ELECTRIC DOOR
22
2
3
4
5
1
6
7
8
9
