No. Item Code No. Specification Description Type Q’TY Remar k 16 A010-D 51021-A LM GUI DE BLOCK Part 2 17 A010-D 52002 UP/DOWN RAIL Assembly 1 4.1.6 18 A010- 620004 TENSIONER Assembly 1 4.1.5 19 A010- 520002 LEFT LM FIX …

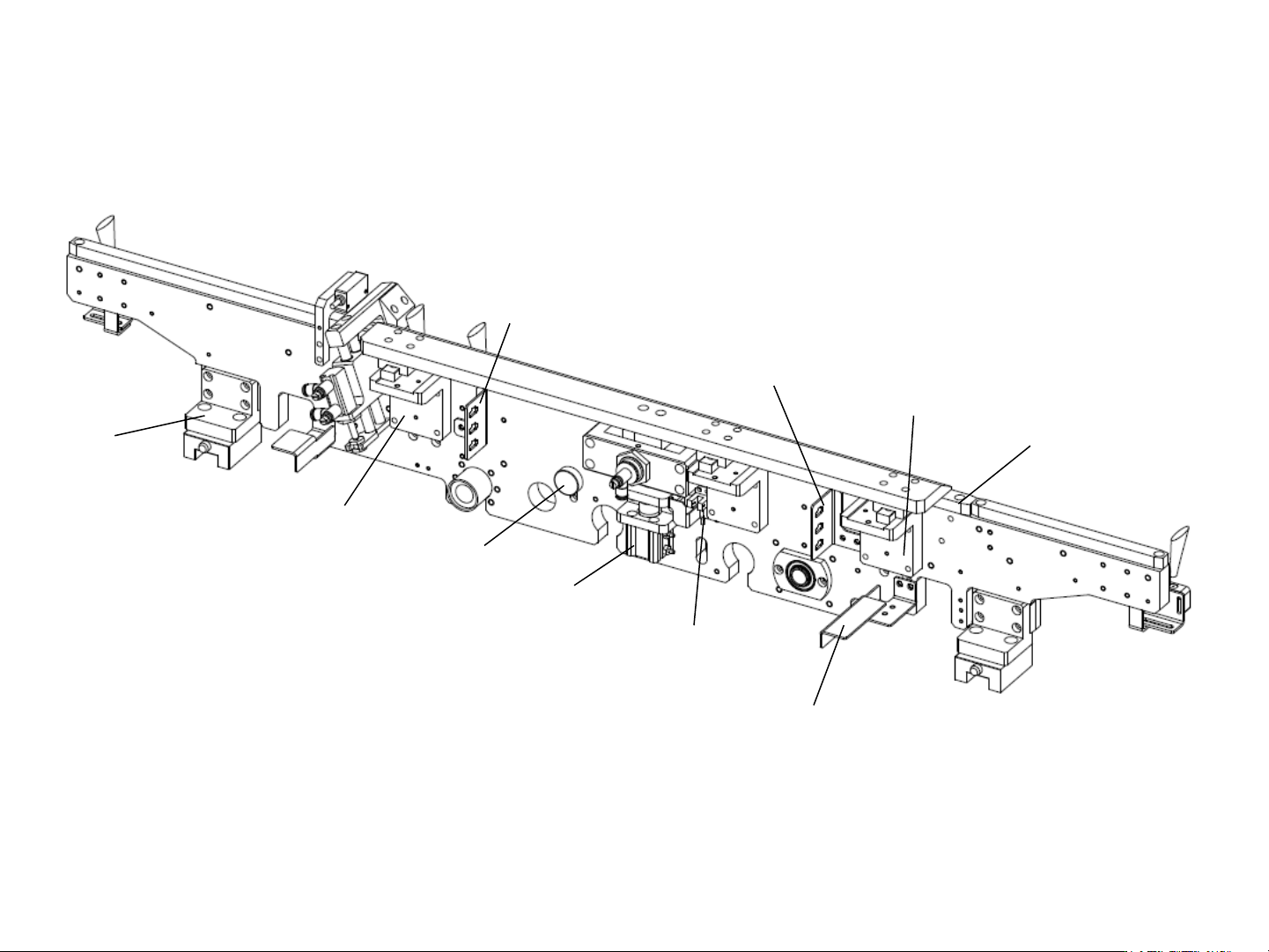

4.4 FOURTH MOVINF RAIL (REAR)
20
16
17
18
19
21
22
23
24
25
81
No. Item Code No. Specification Description Type Q’TY Remark
16 A010-D51021-A LM GUIDE BLOCK Part 2
17 A010-D52002 UP/DOWN RAIL Assembly 1 4.1.6
18 A010-620004 TENSIONER Assembly 1 4.1.5
19 A010-520002 LEFT LM FIX BKT Assembly 2 4.1.1
20 A010-520003 RIGHT LM FIX BKT Assembly 1 4.1.2
21 554011-000005 PM-Y44 PHOTO SENSOR Part 1
22 V085-520011-A LANE 2 CAFLUX BKT Part 1
23 A010-D52018-A CONNECTER BKT 3 Part 1
24 A010-D52017-A CONNECTER BKT 2 Part 1
25 V085-510009-A WORK GUIDE RAIL Part 1
4.4 FOURTH MOVINF RAIL (REAR)
82
4.4.1 STOPPER 2
1
3
4
5
6
7
8
9
2
