1.2.2. ELECTRIC DOOR
22
2
3
4
5
1
6
7
8
9
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-122002-A ELECTRIC FRONT DOOR Part 1
2 A010-D12002-A VPC B/D COVER Part 1
3 501014-000030 VPC Board(V5.6A) PZT Control Board Part 1
4 V080-N12003-D BOARD BRACKET Part 1
5 609022-000004 HINGE 32-20 HINGE Part 2
6 609021-000002 PULL (75mm) HANDLE Part 1
7 501015-000005 STMC I/F Board(V5.3) Step Motor Controller Board(Dual) Part 2
8 551612-000001 M22-WRLK-Y(2a+1b+LED) CONVEYOR SWITCH Part 1
9 V080-N12004-B ELECTRIC FRONT COVER Part 1
1.2.2. ELECTRIC DOOR
23

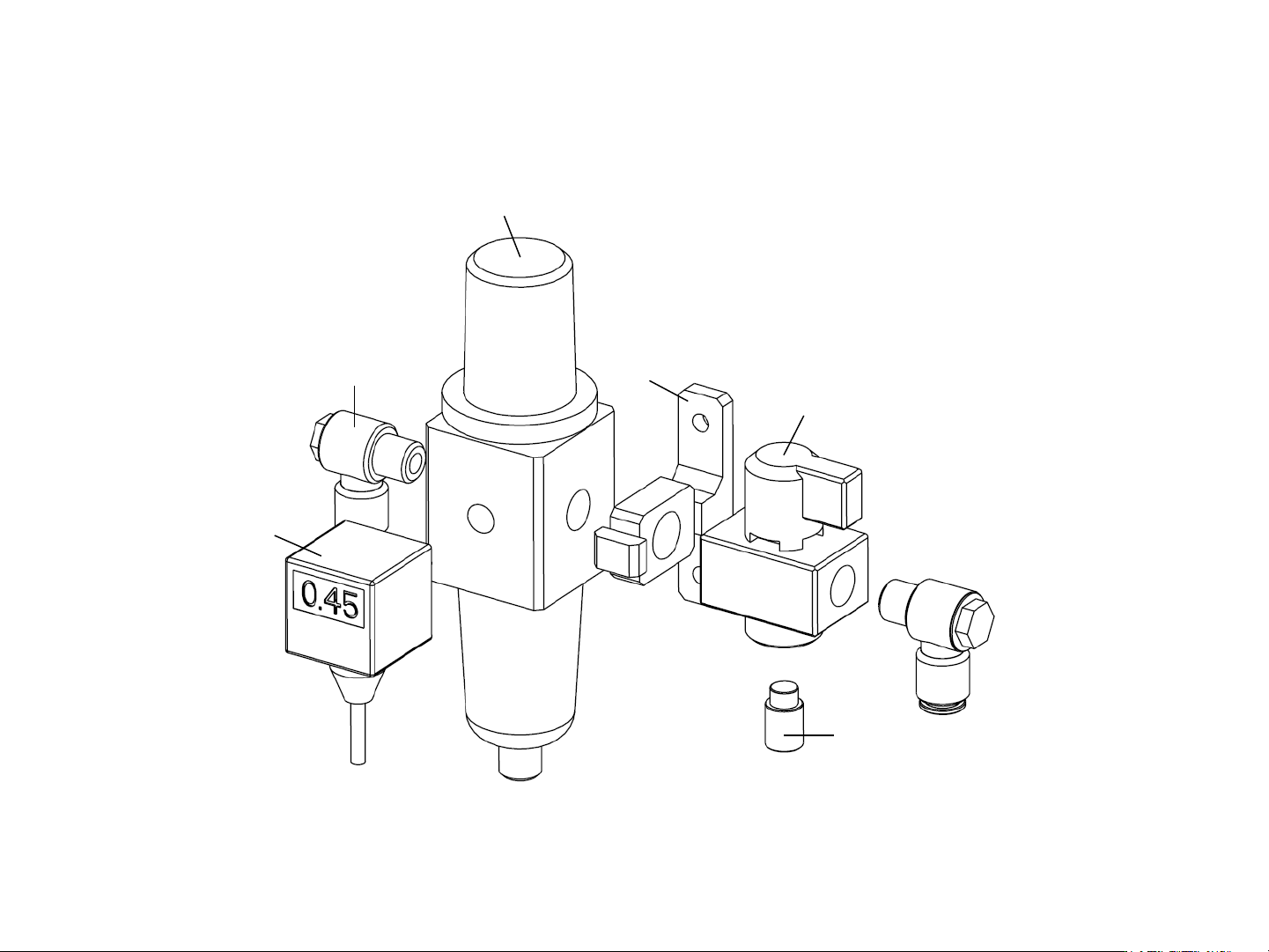

1.2.3 MAIN AIR
24
4
1
2
3
5
6
