No. Item Code No. Specification Description Type Q’TY Remar k 17 602415 - 000019 SMALL 3D FRANGE ROLLER ROLLER Part 11 18 602415 - 000016 ESD D FLANGE BELT ROLLER ROLLER Part 4 19 602013 - 000038 D3 -L2100 R ING BELT Par…
4.1 FIRST FIX RAIL (REAR)
18
21
17
19
20
22
24
25
23
41
No. Item Code No. Specification Description Type Q’TY Remark
17 602415-000019 SMALL 3D FRANGE ROLLER ROLLER Part 11
18 602415-000016 ESD D FLANGE BELT ROLLER ROLLER Part 4
19 602013-000038 D3-L2100 RING BELT Part 1
20 A010-D52002 UP/DOWN RAIL Assembly 1 4.1.6
21 A010-620002 WORK SENSOR Assembly 1 4.1.7
22 A010-520016-A SMALL BELT GUIDE Part 2
23 A010-520009 SENSOR Assembly 1 4.1.8
24 A010-520010 SENSOR Assembly 1 4.1.9
25 706012-000001 M-5ALHU-4 FITTING Part 4
4.1 FIRST FIX RAIL (REAR)
42
43

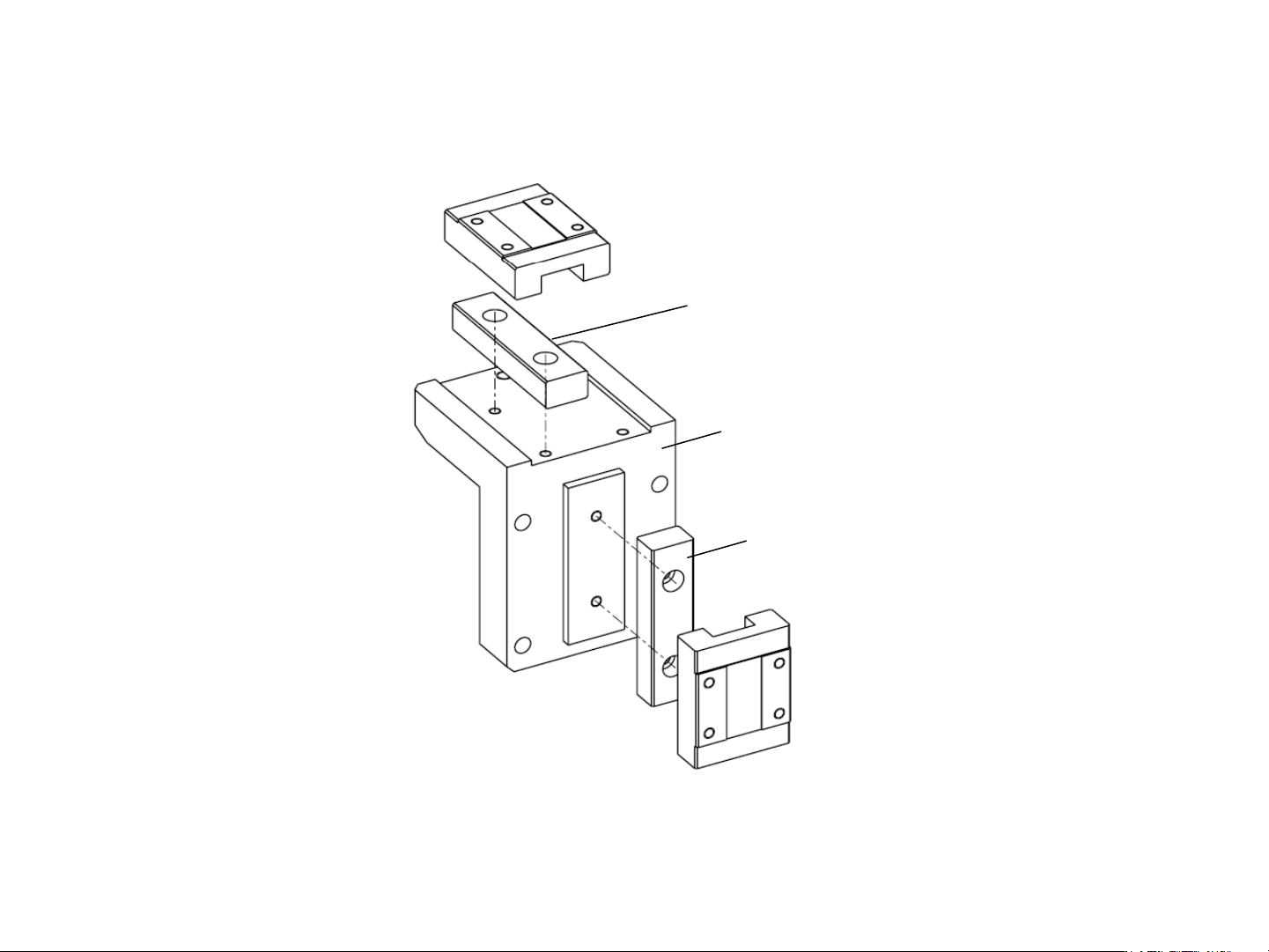

4.1.1 LEFT LM FIX BKT
1
2
2
