KY8030-2XDL(2P) Part List (20120430).pdf - 第26页
2. X G ANTRY UNIT 26 1 2 4 5 6 7 8 9 10 11 12 15 14 13 3
No. Item Code No. Specification Description Type Q’TY Remark
1 705011-000001 AW20-02 FILTER REGULATOR Part 1
2 705090-000001 Y200T SPACER BRACKET Part 1
3 703017-000001 VHS20-02 EXHAUST 3PORT V/V Part 1
4 705018-000001 AN103-01 SILENCER Part 1
5 705016-000001 ISE30-01-25L PRESSURE SENSOR Part 1
6 706012-000005 KQ2V08-02S FITTING Part 2
1.2.3 MAIN AIR
25

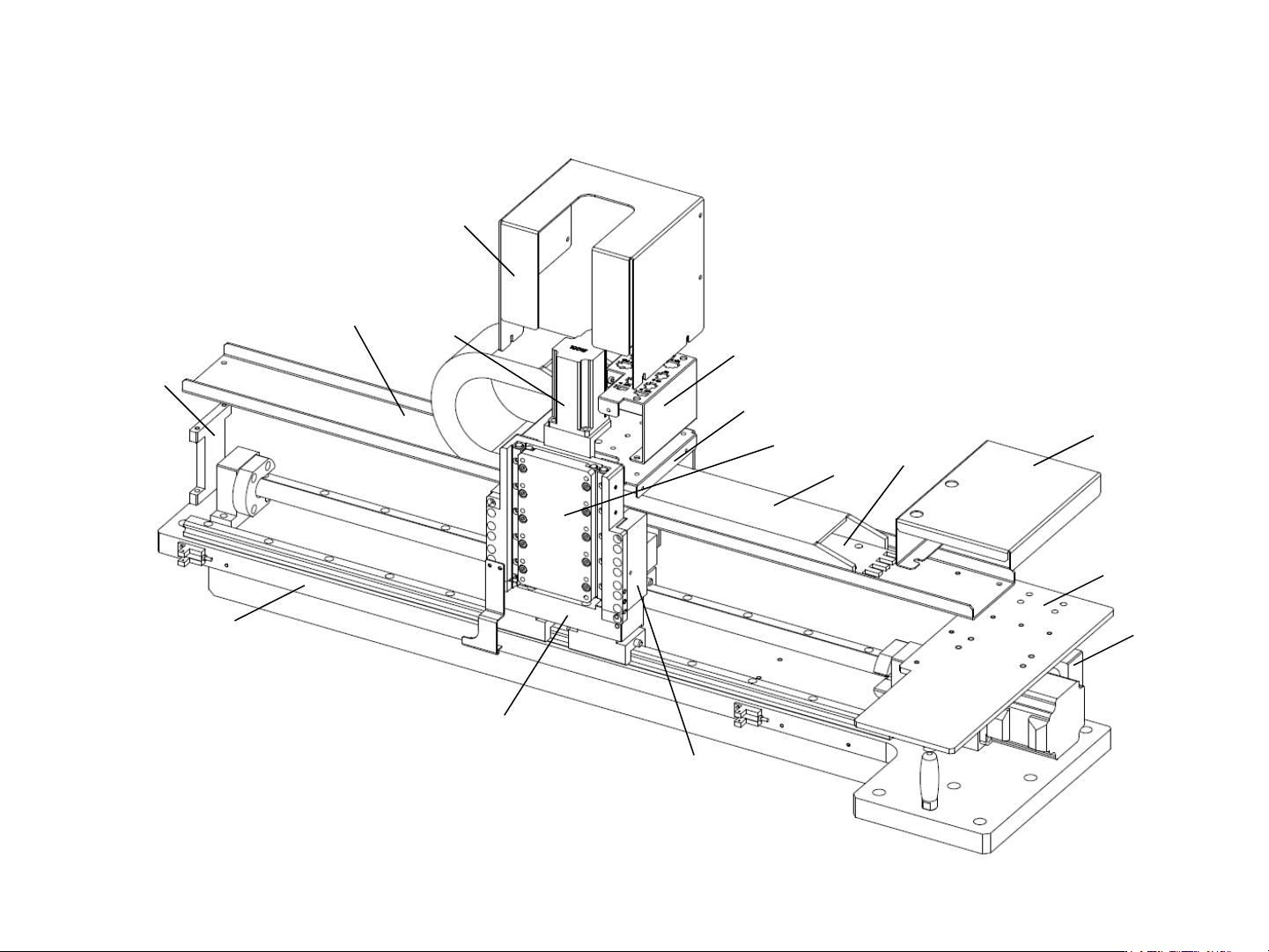

2. X GANTRY UNIT
26
1
2
4
5
6
7
8
9
10
11
12
15
14
13
3
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-200001 X FRAME BASE Assembly 1 2.1
2 V080-210101-D X AXIS SHOE Part 1
3 P021-920-004 Z-AXIS FIX PLATE Part 1
4 P021-900-000-1 Z AXIS PLATE Assembly 1 2.2
5 P021-900-000-2 Z AXIS MOTOR Assembly 1 2.3
6 V085-220002-A X AXIS COVER Part 1
7 V085-220003-A CONNECTOR BKT Part 1
8 V085-220001-A X CAFLUX BKT Part 1
9 V080-L22001-B X CAFLUX GUIDE Part 1
10 V080-210002-A X CAFLEX BRKT L Part 1
11 V080-210003-A X CAFLEX BRKT R Part 1
12 602911-000014 B15.050.048.0 L518.5(17) CAFLUX Part 1
13 602912-000005 1050.12PZ CAFLUX BKT Part 1
14 V085-310004-A X CAFLUX FIX PLATE Part 1
15 V085-320002-A Y CABLE COVER Part 1
2. X GANTRY UNIT
27
