39

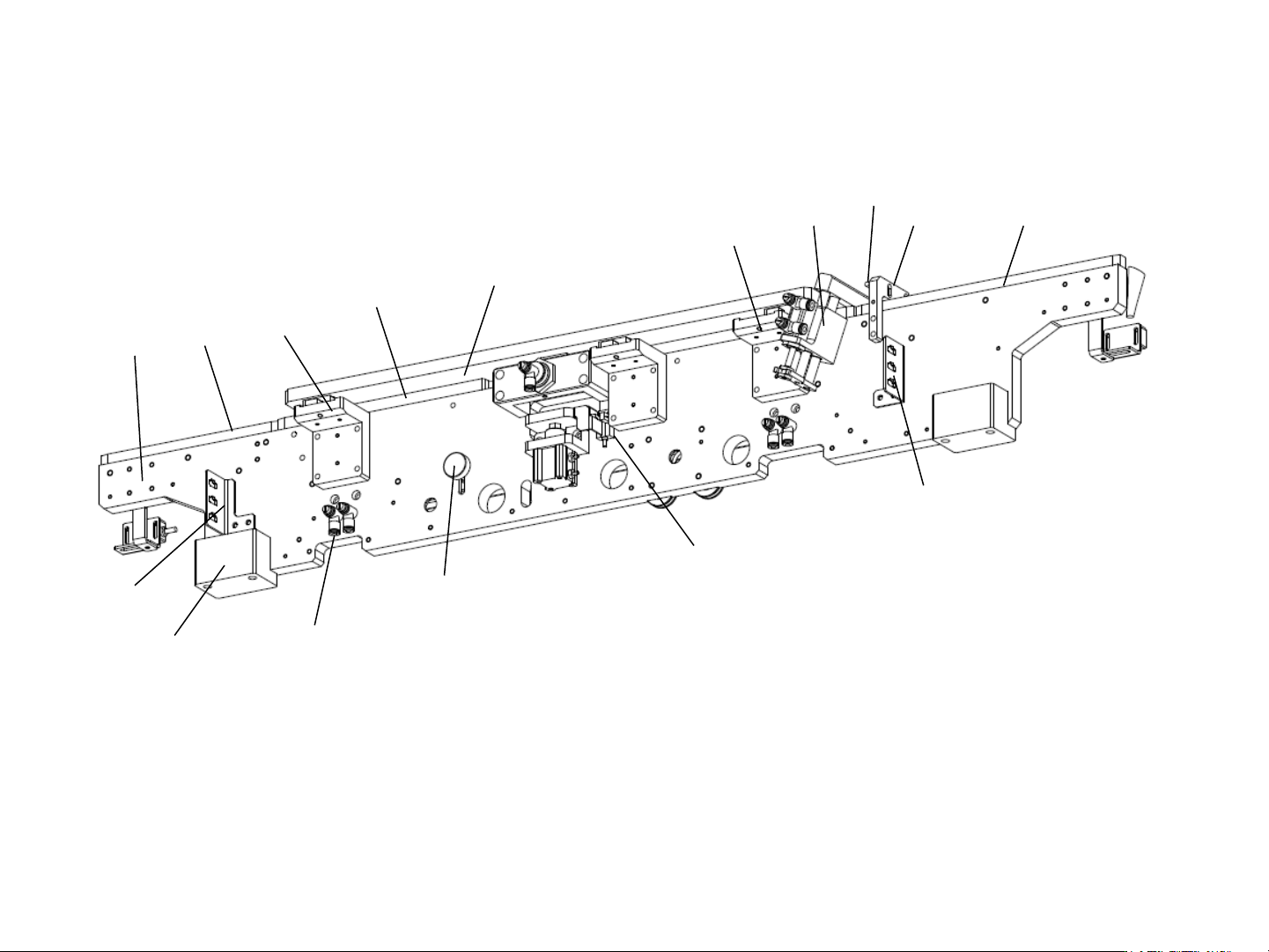

4.1 FIRST FIX RAIL (FRONT)
1 2
13
3
5
4
6
9
10
11
12
7
14
8 15
16
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-510002-A KY8030DL RAIL 1 Part 1
2 A010-520002 LEFT LM FIX BKT Assembly 2 4.1.1
3 A010-520003 RIGHT LM FIX BKT Assembly 1 4.1.2
4 V080-500019 STOPPER Assembly 1 4.1.3
5 A010-520005 HEIGHT GUIDE Assembly 1 4.1.4
6 A010-620004 TENSIONER Assembly 1 4.1.5
7 A010-510027-A FRONT INTERFACE Part 2
8 A010-510026-B COLLISION SENSOR BKT Part 1
9 554011-000009 E3S-LS3NW PHOTO SENSOR Part 1
10 554011-000005 PM-Y44 PHOTO SENSOR Part 1
11 A010-D52017-A CONNECTER BKT 2 Part 1
12 A010-D52018-A CONNECTER BKT 3 Part 1
13 706011-000001 AS1201F-M5-04 SPEED CONTROL Part 4
14 V085-510008-A WORK GUIDE RAIL-2 Part 1
15 V085-510007-A WORK GUIDE RAIL-1 Part 1
16 V085-510009-A WORK GUIDE RAIL Part 1
4.1 FIRST FIX RAIL (FRONT)
40

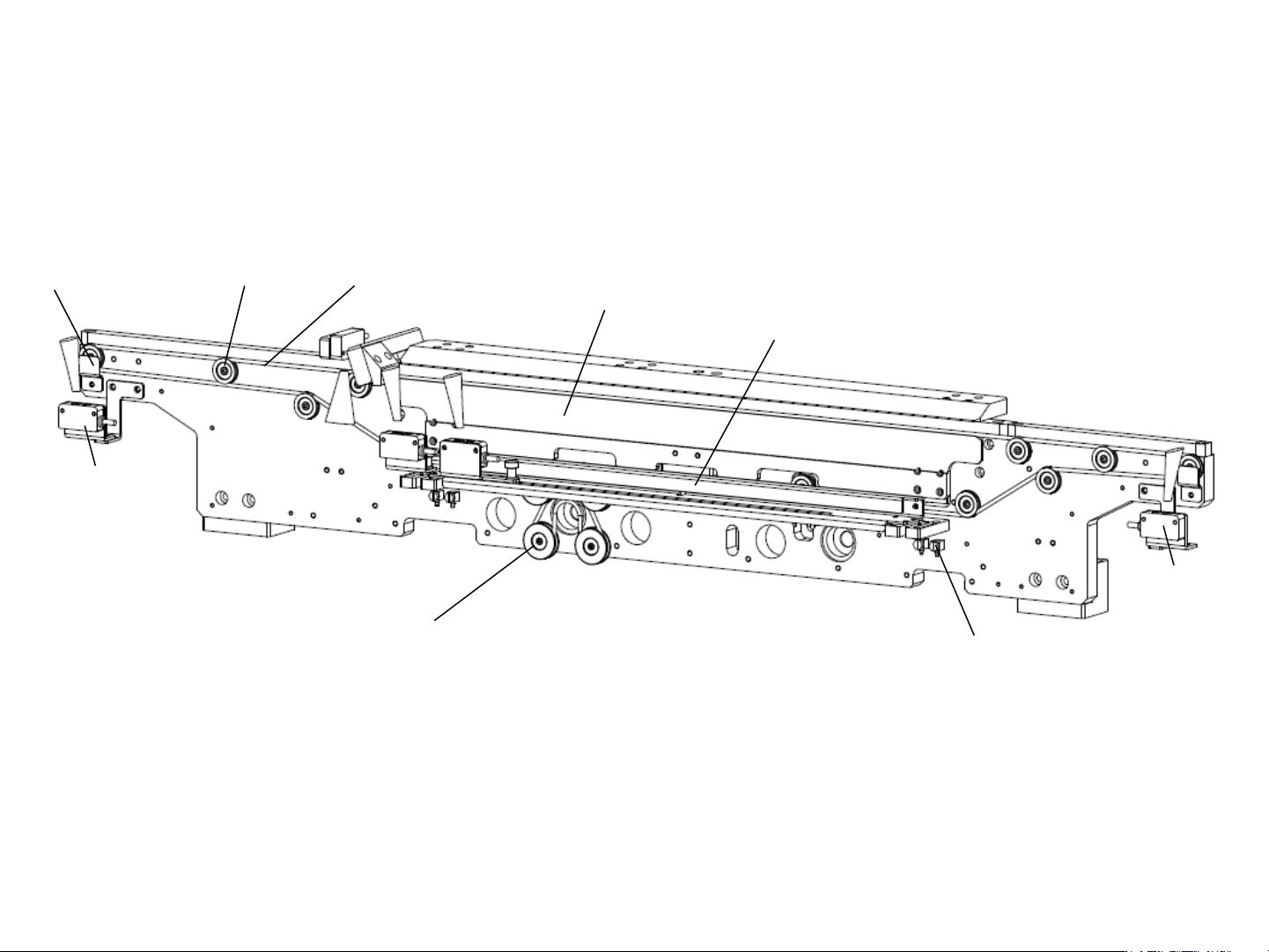

4.1 FIRST FIX RAIL (REAR)
18
21
17
19
20
22
24
25
23
41
