MACHINE PROGRAMMING
STAGE 5B - VACUUM TOOLING
User Manual 1.29

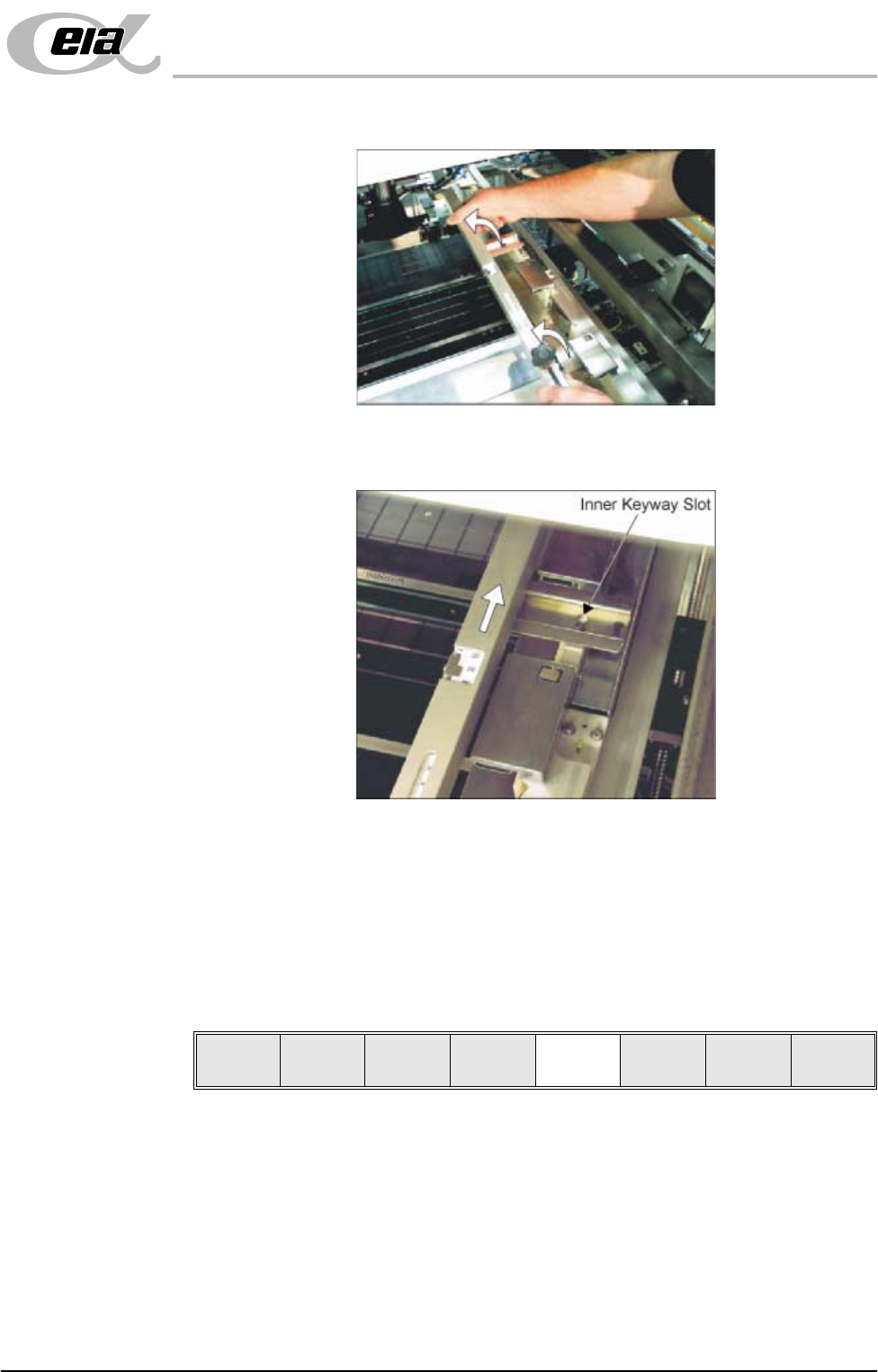

b. Lift the adjuster clear of the two locating screws.
c. Using the inner pair of keyway slots locate the adjuster on the chase and
slide the adjuster to the rear of the machine to lock in place.
45. Ensuring for the correct orientation of the stencil, load the stencil against the
left hand chase rail.
46. Toggle screen clamp switch position to down position (On) (fixed width
chase only).
47. Raise the drop down panel and lower the machine shutter.
48. Press the System button.
49. Select Change Screen (F2).
50. Go to Stage 6.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
MACHINE PROGRAMMING
STAGE 5C - DEDICATED TOOLING
1.30 User Manual
STAGE 5C - DEDICATED TOOLING
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
CAUTION
BOARD CLAMPS.
Care must be taken to ensure that the board clamps are
not damaged when removing or replacing tooling.
NOTE
Ensure that Generic Tooling is set to Enabled in Set Prefs.
1. If there is a screen loaded continue with Step 2. If there is no screen loaded
go to Step 8.
2. Select Change Screen (F5). The message ‘Open Front Cover and
Remove Screen’ is displayed.
3. Raise the machine shutter, lower drop down panel.
4. Toggle screen clamp switch to up position (Off) (fixed width chase only).
5. Remove the stencil from the printer.
6. Raise the drop down panel, lower machine shutter.
7. Press the System button.
8. Select Change Tooling (F6). The print carriage and the under screen
cleaner are moved to the rear.
The Change Tooling Parameters window is displayed:
NOTE
If the remote board stop is fitted the Board Stop X and Board Stop Y
parameters are replaced by Remote Board Stop X.
9. Setting up the board stop position is automatically done using the board
dimensions previously set in the product file. If they need adjustment to re-
position the board stop for any reason, ie any routing on the board edge or
a badly positioned image on the stencil, this can be done now. If adjustment
is necessary continue with Step 10. If adjustment is not necessary go to
Step 15.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change Tooling Parameters
BOARD WIDTH
BOARD STOP X
BOARD STOP Y
UNDER CLEARANCE
216.0
125.0
142.6
19.0
mm
mm
mm
mm
MACHINE PROGRAMMING
STAGE 5C - DEDICATED TOOLING
User Manual 1.31
10. Select Adjust (F1).
11. Use the Next and Previous keys (F4 - F5) to highlight each parameter.
12. Use the Incr. and Decr. keys (F6 - F7), or the forward slash key (/) on the
keyboard, to change the parameter value.
13. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
14. Select Exit (F8).
15. Select Full Width (F5). The message ‘Checking for a board on the belts’
is displayed. Whilst the rear rail is moving the message ‘Rail Moving...’ is
displayed.
16. Select Open Cover (F2).
17. Raise the machine shutter, lower the drop down panel (for greater access).
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Tooling
Exit
