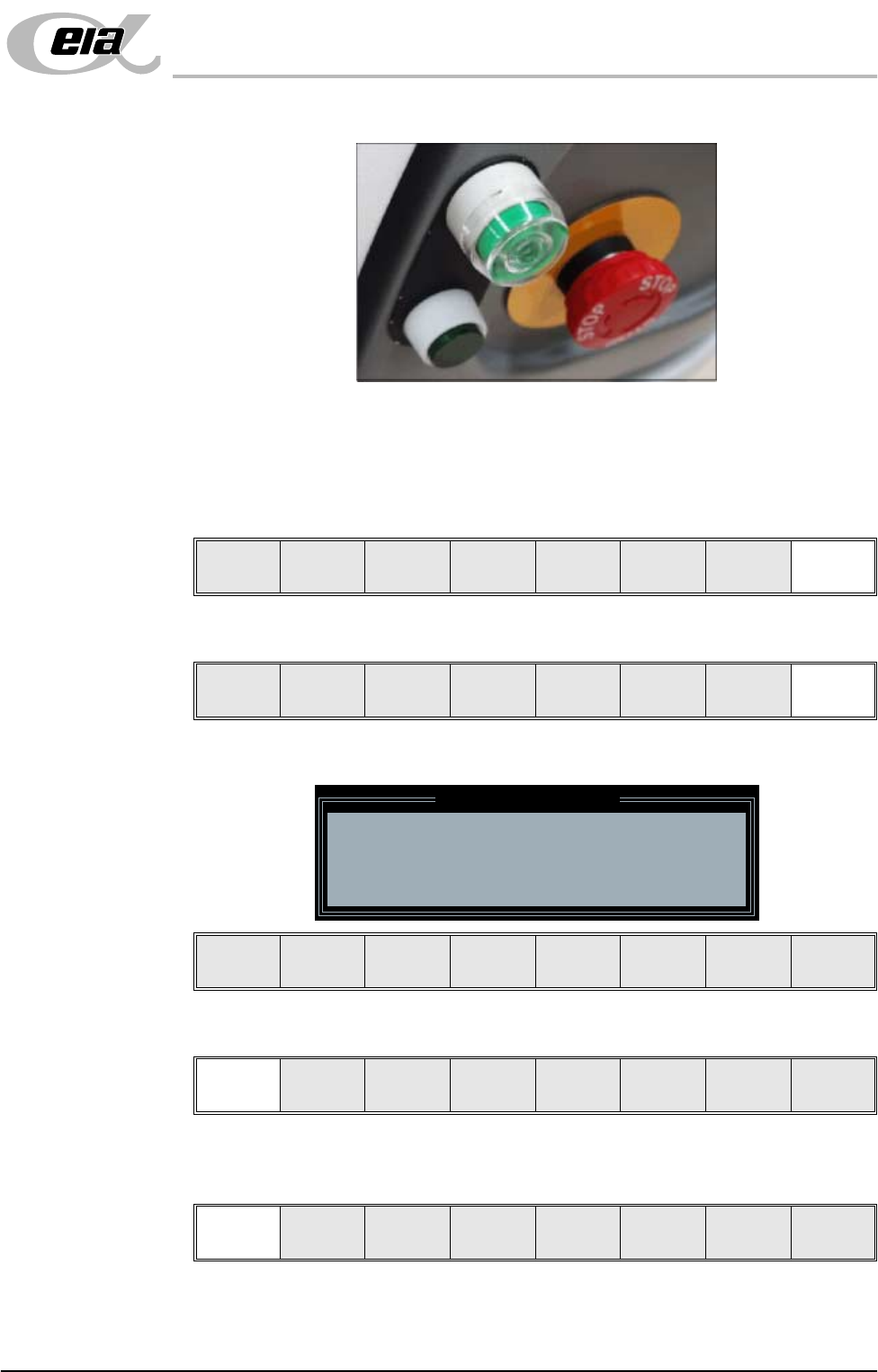

MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
User Manual 1.49
24. Lower the printhead shutter.
25. Press the System button.
26. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
27. Select Contact Height (F3).
The following window and menu bar is displayed:
28. Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance’ is displayed.
29. Select Open Cover (F7).
30. Raise the printhead shutter.
31. Place the FormFlex setup plate centrally over the tooling modules and rails
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Contact
Height
Transpr t
Height
Change
Screen
Open
Cover
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Vision
Height
Open
Cover
Exit
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
1.50 User Manual
and place the weights on top of the setup plate.
32. Align the weights along the centre line in the Y axis and one third of the plate
length in the X axis.
33. Press the operator switch on the front of the machine covers.
C/L
1/3
1/3
BoardSetup Plate Weight (in 2 positions)
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
User Manual 1.51
34. Wait until the pneumatic indicator on the front cover displays green.
35. Remove the weights and the FormFlex setup plate from the tooling area.
36. Lower the printhead shutter.
37. Press the System button.
38. Select Exit (F8).
39. Select Exit (F8).
The following window and menu bar is displayed:
40. Select Continue (F1).
41. Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
42. Remove the board from the rails.
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Exit
Continue Exit
Auto
Board
Manual
Board
