MACHINE PROGRAMMING
STAGE 5C - DEDICATED TOOLING
User Manual 1.31
10. Select Adjust (F1).
11. Use the Next and Previous keys (F4 - F5) to highlight each parameter.
12. Use the Incr. and Decr. keys (F6 - F7), or the forward slash key (/) on the
keyboard, to change the parameter value.
13. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
14. Select Exit (F8).
15. Select Full Width (F5). The message ‘Checking for a board on the belts’
is displayed. Whilst the rear rail is moving the message ‘Rail Moving...’ is
displayed.
16. Select Open Cover (F2).
17. Raise the machine shutter, lower the drop down panel (for greater access).
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Tooling
Exit
MACHINE PROGRAMMING
STAGE 5C - DEDICATED TOOLING
1.32 User Manual

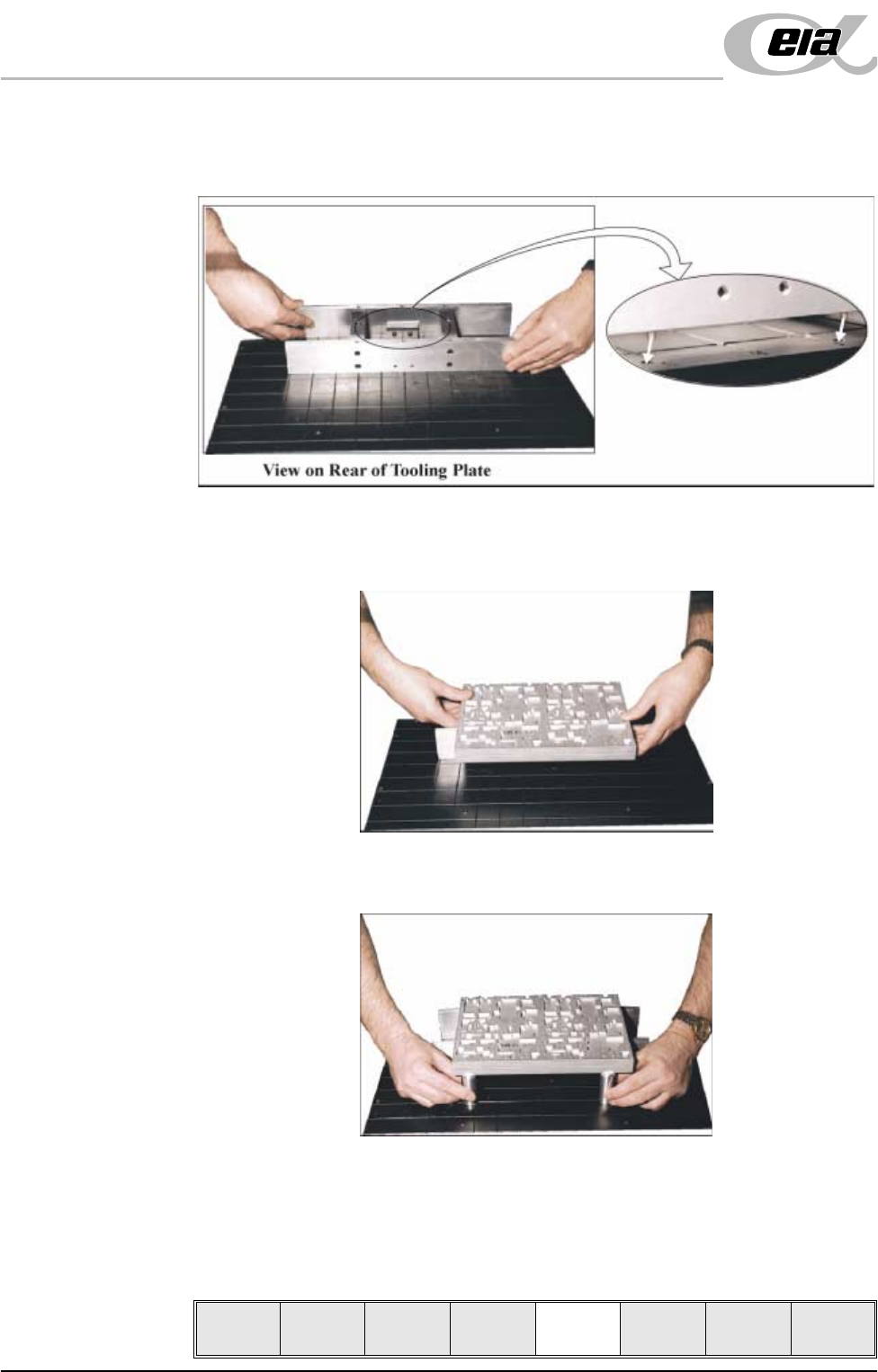

18. Fit the tooling tower to the manual tooling plate. Ensure the dowels on the
front edge of the tooling tower base are correctly seated in the holes in the
front edge of the manual tooling plate.
19. Verify the plate assembly orientation and fit the assembly to the tooling
tower. Ensure the dowels of the plate assembly are correctly seated in the
holes in the tooling tower.
20. If required, slide additional magnetic pins beneath the plate assembly to fully
support it when printing wide boards.
21. Raise the drop down panel, lower the machine shutter.
22. Press the System button.
23. Select Board Width (F5). The message ‘Checking for a board on the
belts’ is displayed. Whilst the rear rail is moving the message ‘Rail
Moving...’ is displayed.
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Tooling
Exit
MACHINE PROGRAMMING
STAGE 5C - DEDICATED TOOLING
User Manual 1.33
24. Select Generic Tooling (F7). The print carriage moves to the front of the
machine.
The following window and menu bar is displayed:
NOTE
If contaminated squeegees are fitted, these should be replaced at this point.
25. Select Continue (F1). Cleaner moves to the Home position and the print
carriage moves to the rear of the machine. The message ‘Table at Home
Height’ is displayed.
26. Select Transprt Height (F3). The message ‘Table at Transport Height’ is
displayed.
27. Place a board on the input sensor of the upline conveyor of the machine.
28. Select Load (F1).
29. Select Auto Board (F1).
30. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Generic Tooling Warning
WARNING Paste may drip into the machine
Remove Squeegees NOW
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Load
Transprt
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Auto
Board
Manual
Board
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
