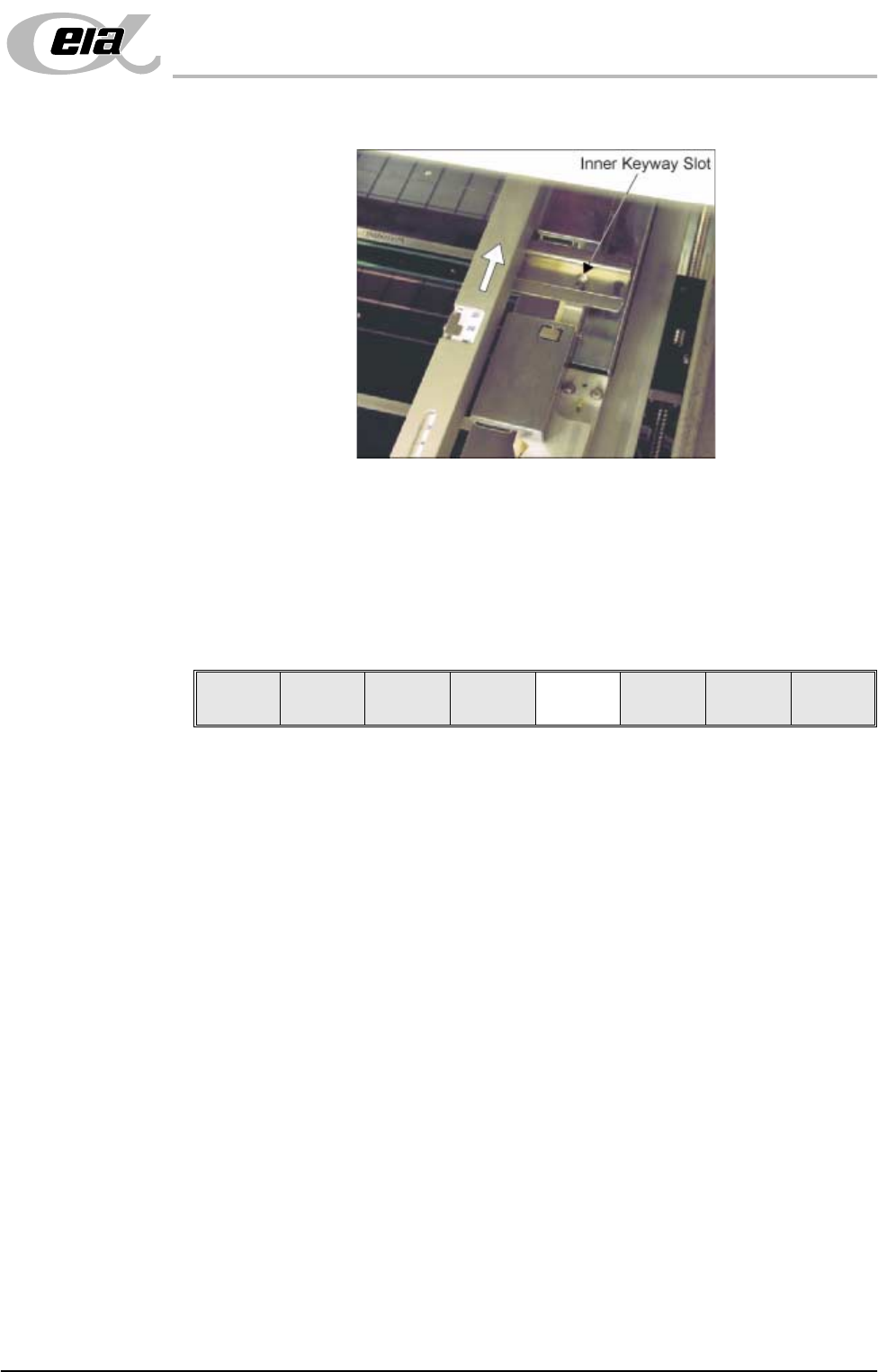

MACHINE PROGRAMMING
STAGE 5D - MULTIFLEX TOOLING
User Manual 1.45
slide the adjuster to the rear of the machine to lock in place.
50. Ensuring for the correct orientation of the stencil, load the stencil against the
left hand chase rail.
51. Toggle screen clamp switch to down (On) (fixed width chase only).
52. Raise drop down panel, lower machine shutter.
53. Press the System button.
54. Select Change Screen (F2).
55. Go to Stage 6.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
1.46 User Manual
STAGE 5E - FORMFLEX TOOLING
Setup Plate and Weights Procedure
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
CAUTION
BOARD CLAMPS.
Care must be taken to ensure that the board clamps are
not damaged when removing or replacing tooling.
NOTE
1. Ensure that Generic Tooling is set to Enabled in Set Prefs.
2. When using FormFlex, the print gap in the product file must be set to zero.
1. If there is a screen loaded continue with Step 2. If there is no screen loaded
go to Step 8.
2. Select Change Screen (F5). The message ‘Open Front Cover and
Remove Screen’ is displayed.
3. Raise the printhead shutter and lower the drop down panel.
4. Toggle screen clamp switch to the up position (Off) (fixed width chase only).
5. Remove the stencil from the printer.
6. Raise the drop down panel and lower the printhead shutter.
7. Press the System button.
8. Select Change Tooling (F6). The print carriage and the under screen
cleaner are moved to the rear.
The Change Tooling Parameters window is displayed:
NOTE
If the remote board stop is fitted the Board Stop X and Board Stop Y
parameters are replaced by Remote Board Stop X.
9. Setting up the board stop position is automatically done using the board
dimensions previously set in the product file. If they need adjustment to re-
position the board stop for any reason, ie any routing on the board edge or
a badly positioned image on the stencil, this can be done now. If adjustment
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change Tooling Parameters
BOARD WIDTH
BOARD STOP X
BOARD STOP Y
UNDER CLEARANCE
216.0
125.0
142.6
19.0
mm
mm
mm
mm
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
User Manual 1.47
is necessary continue with Step 10. If adjustment is not necessary go to
Step 15.
10. Select Adjust (F1).
11. Use the Next and Previous keys (F4 - F5) to highlight each parameter.
12. Use the Incr. and Decr. keys (F6 - F7), or the forward slash key (/) on the
keyboard, to change the parameter value.
13. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
14. Select Exit (F8).
15. Select Generic Tooling (F7). The print carriage moves to the front of the
machine.
The following window and menu bar is displayed:
NOTE
If contaminated squeegees are fitted, these should be replaced at this point.
16. Select Continue (F1). Cleaner moves to the Home position and the print
carriage moves to the rear of the machine. The message ‘Table at Home
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Generic Tooling Warning
WARNING Paste may drip into the machine
Remove Squeegees NOW
Continue
Open
Cover
Exit
