6-16
Samsung Component Placer SM481 Introduction
6.10.1. SMN Tape feeder
8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm 共有9种。
图
6.11 SMN Tape feeder (8mm)
No. Name No. Name No. Name
1 Clamping Lever 6 Tape Guide 11 Clamping
2 Drain 7 Reel Hanger 12 Dump Box
3 Manual Feeding
Lever
8 Index Module
4 Control Module 9 Shutter
:
;
43
<
86
4
5
7
9
6-17
Module Function
6.10.1.1. SMN Tape Feeder 规格
SMN Tape Feeder种类及移动间距
表
6.1 SMN Tape Feeder
种类及移动间距
可适用Reel
品 名
部品编号
移动间距 (mm)
IT Tape
Feeder
IT 8mm 0402 Tape Feeder
8
0402 专用
IT 8mm 2P Tape Feeder 8 2
IT 8mm 4P Tape Feeder 8 4
IT 12mm Tape Feeder 12 4, 8, 12
IT 16mm Tape Feeder 16 4, 8, 12, 16
IT 24mm Tape Feeder 24 4, 8, 12, 16, 20, 24
IT 32mm Tape Feeder 32 4, 8, 12, 16, 20, 24, 32
IT 44mm Tape Feeder 44 4, 8, 12, 16, 20, 24, 32, 40
IT 56mm Tape Feeder 56 4, 8, 12, 16, 20, 24, 32, 40
IT 72mm Tape Feeder 72 4, 8, 12, 16, 20, 24, 32, 40
IT 88mm Tape Feeder 88 4, 8, 12, 16, 20, 24, 32, 40
Non IT
Tape
Feeder
Non-IT 8mm 0402 Tape Feeder
8
0402 专用
Non-IT 8mm 2P Tape Feeder 8 2
Non-IT 8mm 4P Tape Feeder 8 4
Non-IT 12mm Tape Feeder 12 4, 8, 12
Non-IT 16mm Tape Feeder 16 4, 8, 12, 16
Non-IT 24mm Tape Feeder 24 4, 8, 12, 16, 20, 24
Non-IT 32mm Tape Feeder 32 4, 8, 12, 16, 20, 24, 32
Non-IT 44mm Tape Feeder 44 4, 8, 12, 16, 20, 24, 32, 40
Non-IT 56mm Tape Feeder 56 4, 8, 12, 16, 20, 24, 32, 40
Non-IT 72mm Tape Feeder 72 4, 8, 12, 16, 20, 24, 32, 40
Non-IT 88mm Tape Feeder 88 4, 8, 12, 16, 20, 24, 32, 40
6-18
Samsung Component Placer SM481 Introduction

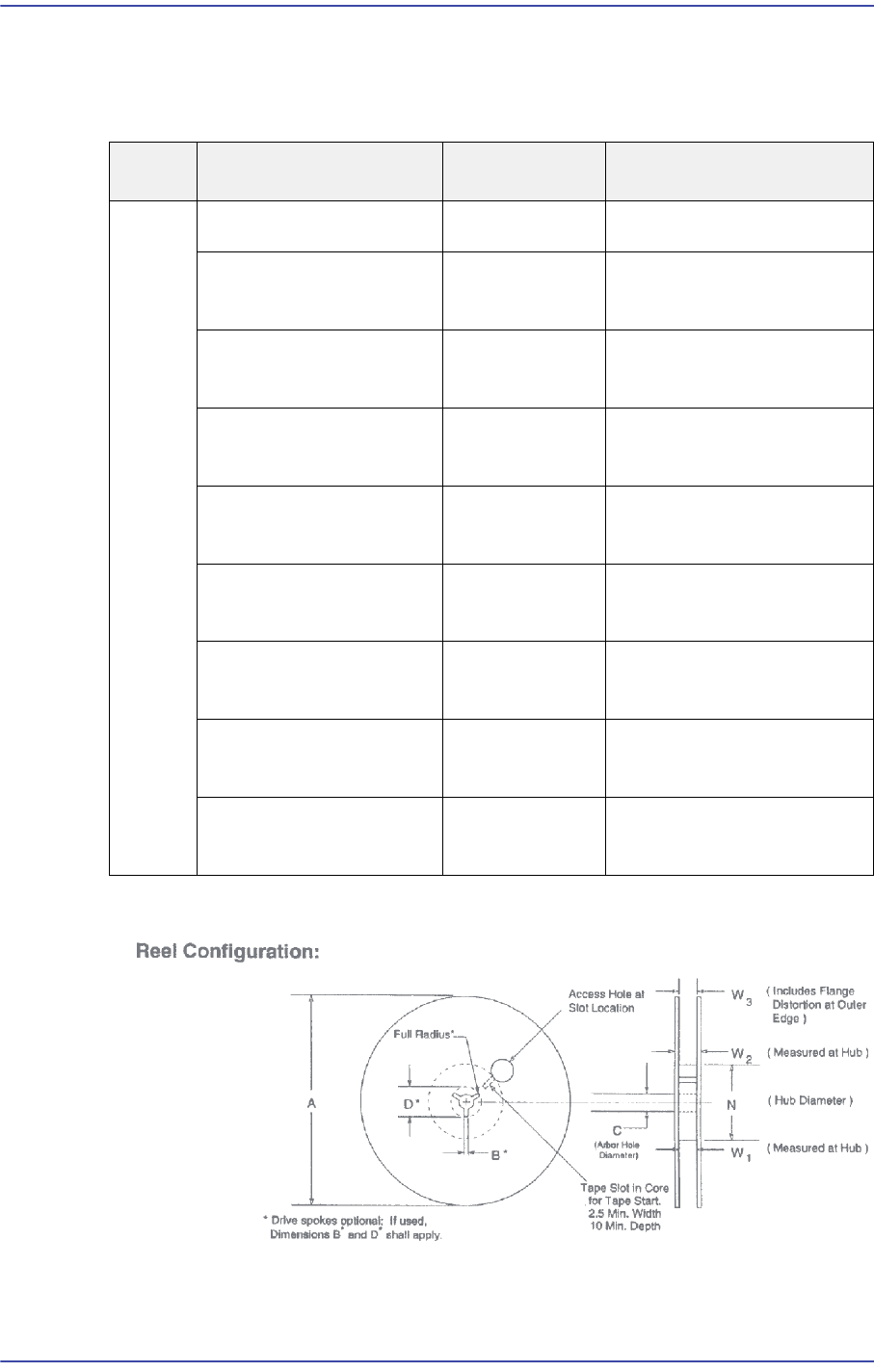

SMN Tape Feeder对应可能的卷（reel）直径请参照下表。此时，SM 8mm Tape
Feeder的 卷（reel）宽 度 (W2)应在13.0mm 以内。
表
6.2 SMN Tape Feeder
使用可能的卷（
reel
）直 径
图
6.12 Reel
尺寸
适用部品
四角chip, MELF, TR, SOP, PLCC, 异形(Odd-type) 部品等
品 名 Tape 侧 卷（reel）直 径 “A”(mm)
IT/ Non
IT
Tape
Feeder
8mm Tape Feeder 8
178,180
12mm Tape Feeder 12
178,180,
254,330,380
16mm Tape Feeder 16
178,180,
254,330,380
24mm Tape Feeder 24
178,180,
254,330,380
32mm Tape Feeder 32
178,180,
254,330,380
44mm Tape Feeder 44
178,180,
254,330,380
56mm Tape Feeder 56
178,180,
254,330,380
72mm Tape Feeder 72
178,180,
254,330,380
88mm Tape Feeder 88
178,180,
254,330,380
