Tg1423-ID-SO

5.2 "Others" Tab

0606-001

[ON] Button (entitled "MOVE") :

When the [ENABLE] button on the front

operation panel is pressed in two seconds after

the[ON] button (entitled "MOVE") is pressed,

the machine starts the manual axis operation on

the selected device.

The inching operation can be performed for the component scraper by

starting up with entering the number of pulses (P) or travel distance.

# of Pluses (P) :

The lowermost point is origin (0 pulse) and

the plus number is increased as the position is

lowered.

Increment Dt :

The travel allowable range is [-0.500 to 0.000]

mm ([-201 to 0] pulse).

Tg1423-ID-SO

5.3 "Input Check" Tab

0606-001

5.3 "Input Check" Tab

When the [Input Check] tab is pressed in the "DVC. CHECK" window

(submenu), the following "Input Check" tab sheet appears inside the

window.

5.3.1 "Motor Cont (EB005)" Tab

The corresponding tab sheet enables the operator to view the input / output

statuses of the motor control (EB005).

•

Sheet Layout

When the [Motor Cont (EB005)] tab is pressed in the "Input Check" tab

sheet, the following tab sheet appears.

[1]

Fig.5 "Motor Cont (EB005)" Tab Sheet

•

Sheet Composition

[1] Motor Axis Buttons

[K] Button

When this button is pressed, the component scraper status is displayed.

Tg1423-ID-SO

5.4 "Machine Program.Info." Window

0606-001

5.4 "Machine Prgm.Info." Window

[EB005/Servo Driver/NS100] Button

When this button is pressed, the following tab sheet appears.

[1]

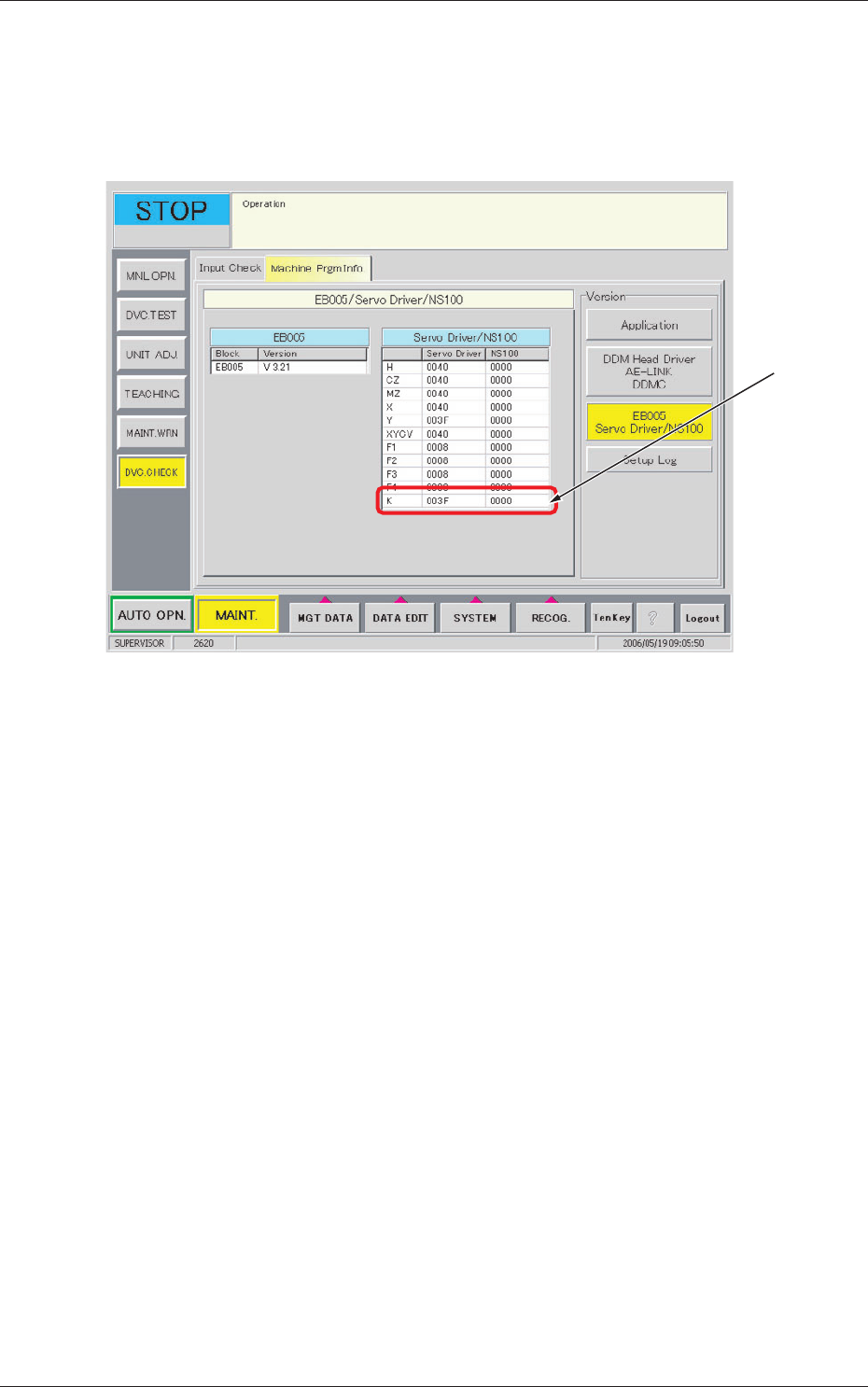

Fig.6 "Machine Prgm. Info." Tab Sheet

(EB005/Servo Driver/NS100)

[1] [K]

The servo-shaft version for the component scraper is displayed on the

data boxes for [K].
