5.4 "Machine Program.Info." Window
0606-001
5.4 "Machine Prgm.Info." Window
[EB005/Servo Driver/NS100] Button
When this button is pressed, the following tab sheet appears.
[1]
Fig.6 "Machine Prgm. Info." Tab Sheet
(EB005/Servo Driver/NS100)
[1] [K]
The servo-shaft version for the component scraper is displayed on the
data boxes for [K].
13
Tg1423-ID-SO
5.5 "Adj Menu" Tab
0606-001
5.5 "Adj Menu" Tab
The cmpnt scraper (z) axis is adjusted.
Note
This adjustment should be made only by a service personnel.
Consult our service personnel for details.
•
Sheet Layout
When the [Adj Menu] tab is pressed in the "UNIT ADJ." window (submenu),
the following tab sheet appears.
[1]
Fig.7 "Adj Menu" Tab Sheet
•
Sheet Composition
[1] [Cmpnt scraper (Z) axis] Button
Displays the "Component Scraper (Z) unit Maintenance Menu".
The confirmation and adjustment of the component scraper offset data
are available, using a thickness gauge.
14
Tg1423-ID-SO
5.5 "Adj Menu" Tab
0606-001
5.5.1 Cmpnt scraper (Z) unit maintenance menu
[1]
[5]
[6]
[7]
[2]
[3]
[4]

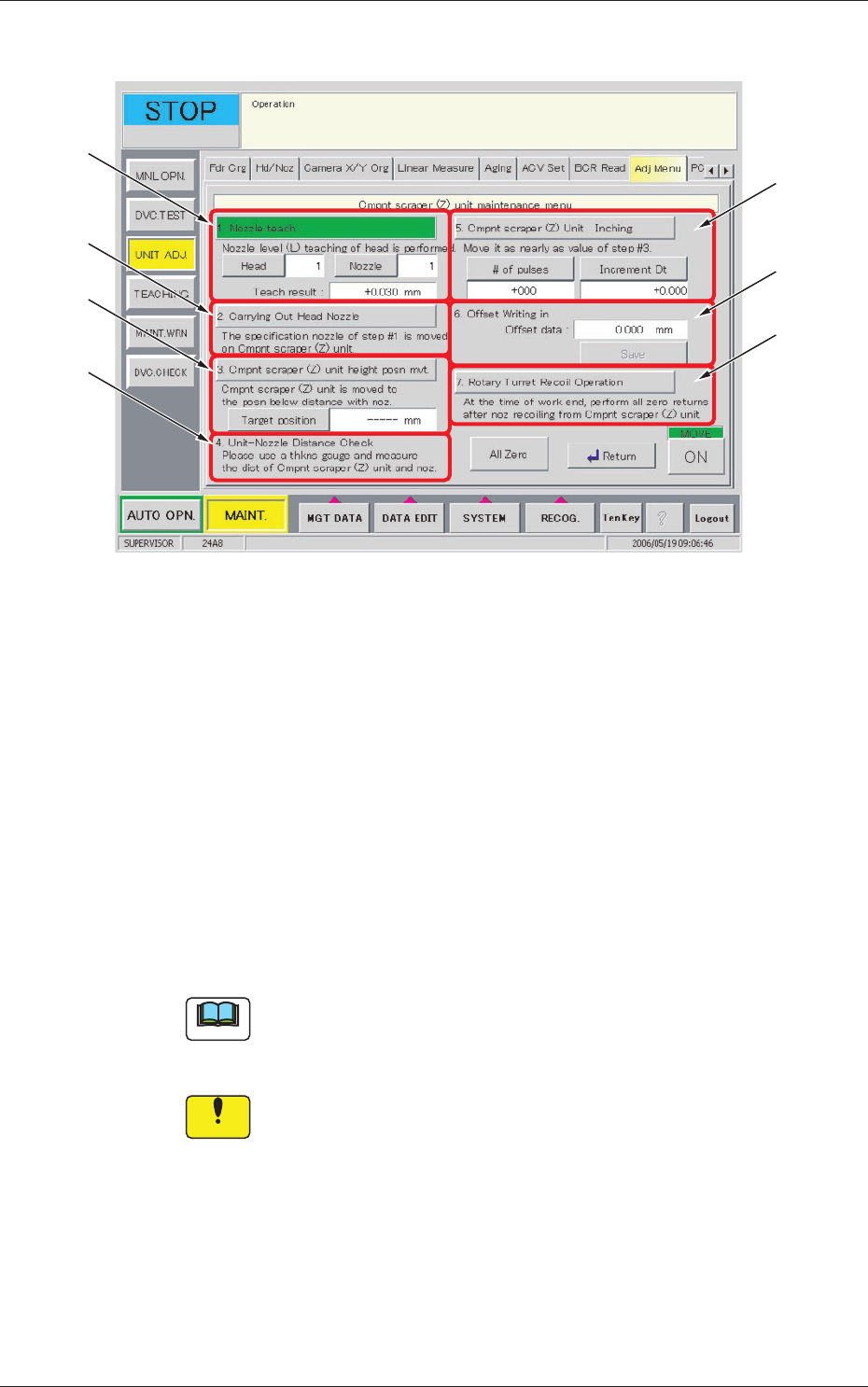

Fig.8 "
Cmpnt scraper (Z) unit maintenance menu
" Tab Sheet
[1] [Nozzle teach] Button
Teaches the nozzle level for the specified Head/Nozzle to be used in the
adjustment of the axis-K. The teaching result will be indicated.
[2] [Carrying Out Head Nozzle] Button
Locates the nozzle designated in [1] on the upper side of the component
scraping plate.
[3] [Cmpnt scraper (Z) unit height posn mvt] Button
Locates the component scraping plate so that the gap value between the
nozzle and the component scraping plate becomes the designated value.
Note
(a) The component scraping plate can only be moved in the range of
-201 to 0 pulse.
(b) Input Range: 0.010 to 0.500 mm
Notice
The nozzle might hit the component scraping plate, so take the
greatest care in entering the value.
[4] Unit-Nozzle Distance Check
Confirm the gap between the component scraping plate and the nozzle,
using a thickness gauge.
When the value does not meet the designated distance value in [3],
adjust it using the [5] [Cmpnt scraper (Z) Unit Inching] button.
The deviation will be added to the offset data.
