Tg1423-ID-SO

5.5 "Adj Menu" Tab

0606-001

5.5.1 Cmpnt scraper (Z) unit maintenance menu

[1]

[5]

[6]

[7]

[2]

[3]

[4]

Fig.8 "

Cmpnt scraper (Z) unit maintenance menu

" Tab Sheet

[1] [Nozzle teach] Button

Teaches the nozzle level for the speciﬁed Head/Nozzle to be used in the

adjustment of the axis-K. The teaching result will be indicated.

[2] [Carrying Out Head Nozzle] Button

Locates the nozzle designated in [1] on the upper side of the component

scraping plate.

[3] [Cmpnt scraper (Z) unit height posn mvt] Button

Locates the component scraping plate so that the gap value between the

nozzle and the component scraping plate becomes the designated value.

Note

(a) The component scraping plate can only be moved in the range of

-201 to 0 pulse.

(b) Input Range: 0.010 to 0.500 mm

Notice

The nozzle might hit the component scraping plate, so take the

greatest care in entering the value.

[4] Unit-Nozzle Distance Check

Conﬁrm the gap between the component scraping plate and the nozzle,

using a thickness gauge.

When the value does not meet the designated distance value in [3],

adjust it using the [5] [Cmpnt scraper (Z) Unit Inching] button.

The deviation will be added to the offset data.

Tg1423-ID-SO

5.5 "Adj Menu" Tab

0606-001

[5] [Cmpnt scraper (Z) Unit Inching] Button

Perform the inching operation so that the gap distance between the

component scraping plate and the nozzle is as close as the designated

distance in [3].

Repeat the conﬁrmation and inching operation to adjust it, using a

thickness gauge.

(Input Range: -201 to 201 pulses, -0.500 to 0.500 mm)

Notice

The nozzle might hit the component scraping plate, so take the

greatest care in entering the value.

[6] Offset Writing in Offset data

The offset data calculated on the basis of the travel distance in the

inching operation in [5], is entered.

[7] [Rotary Turret Recoil Operation] Button

Performs the index zeroing after the component scraper has been

retreated to the origin.

Notice

When the nozzle is located upper to the component scraping

plate, always complete the adjustment after the index

escaping.

(In normal index zeroing, the nozzle might hit the component

scraping plate because the zeroing of the component scraping

plate is always performed in advance).

Tg1423-ID-SO

5.6 "Servo Alarm" Tab

0606-001

5.6 "Servo Alarm" Tab

•

Sheet Layout

When the [Servo Alarm] tab is pressed in the "RECALL" window (submenu),

the following tab sheet appears inside the window.

[1]

[2] [3]

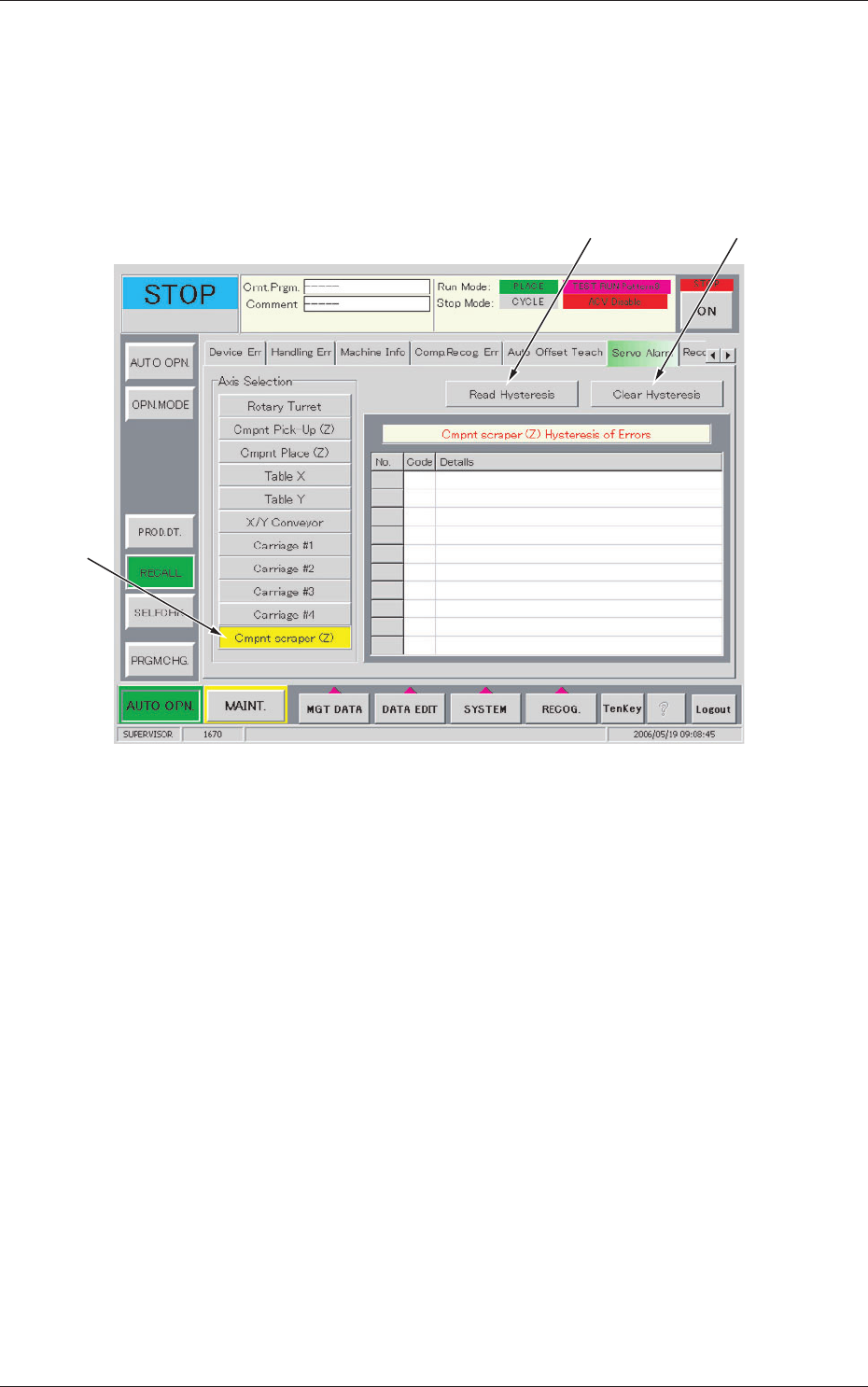

Fig.9 "Servo Alarm" Tab Sheet

•

Sheet Composition

[1] Axis Selection (Alarm Type Selection)

[Cmpnt scraper (Z)] Button

Displays the "Cmpnt scraper (Z) Hysteresis of Errors".

[2] [Read Hysteresis] Button

When this button is pressed, the last 10 pieces of alarm data is displayed

with respect to the selected axis.

The data before the last 10 pieces is deleted.

[3] [Clear Hysteresis] Button

When this button is pressed, the alarm data of the selected axis is

cleared.
