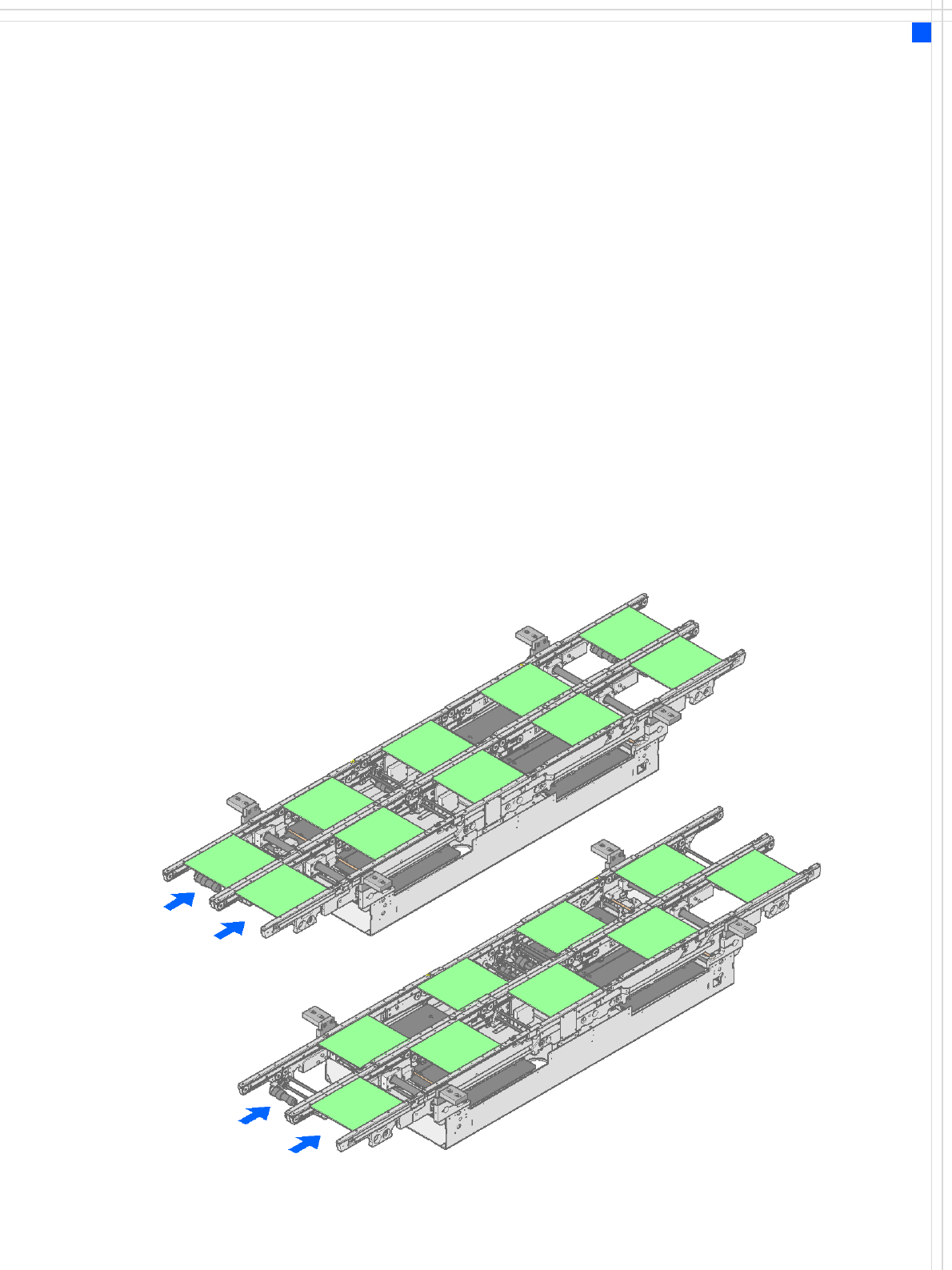

Asynchronous conveyor mode

Synchronous conveyor mode

PCB Conveyor

Flexible Dual Conveyor

Description

The PCB dual conveyor can

greatly increase throughput

with shorter down times -

depending on the placement

program. It allows two PCBs

to be carried simultaneously

(synchronously) or alternate-

ly (asynchronously) through

the placement machine.

In asynchronous mode, only

one PCB in a transport track is

processed. At the same time,

another PCB in the second

transport track is moved into

the placement position.

This saves the full conveying

time of one PCB, thus consid-

erably increasing perfor-

mance, particularly for PCBs

with a short cycle time.

The placement process starts

as soon as one PCB is trans-

ported into the processing

area.

In synchronous mode, two

PCBs are moved into the

placement position at the

same time. They are pro-

cessed as a common panel.

In this way, the top and bot-

tom of a PCB can be pro-

cessed on a single line. The

proportion of non-productive

time is reduced as two circuit

boards are always conveyed

simultaneously.

With the flexible dual convey-

or, one conveyor track may

spread further than the stan-

dard width of 216 mm in sin-

gle conveyor mode. The

side panels of the second

conveyor track are moved

fully together and the second

conveyor track is disabled.

This allows overwide PCBs to

be processed in machines

with a dual conveyor.

PCB Conveyor

Flexible Dual Conveyor

Technical Data

Fixed conveyor side Right or left

PCB format

Standard (length x width)

Wide board configuration

Long board option

Long board option in Wide board

configuration

Dual conveyor in Single conveyor mode

standard

Long board option

50 x 50 mm² to 368 x 216 mm²

50 x 50 mm² to 368 x 242 mm²

50 x 110 mm² to 610 x 216 mm²

50 x 110 mm² to 610 x 242 mm²

50 x 50 mm² to 368 x 380 mm²

50 x 110 mm² to 610 x 380 mm²

PCB thickness

Standard 0.3 mm to 4.5 mm (± 0.2 mm)

(thicker PCBs on request)

Max. PCB warpage

(pass-through height)

up: 4.5 mm - PCB thickness

down: 0.5 mm + PCB thickness

PCB weight max. 3 kg

Clearance on PCB underside

Standard

Option

25 mm ± 0.2 mm

max. 40 mm ± 0.2 mm

PCB transport height 830mm ± 15mm (standard)

900mm ± 15mm (optional)

930mm ± 15mm (optional)

950mm ± 15mm (SMEMA: optional)

Type of interface SIEMENS / SMEMA

Component-free PCB handling edge 3 mm

PCB changeover time 2.5 s

PCB positioning accuracy ± 0.5 mm

Conveyor mode synchronous or asynchronous

Components on each conveyor same or different

PCB width on each conveyor same or different

Bad fiducial detection synchronous: not possible, asynchronous:

possible

Automatic width adjustment synchronous: possible, asynchronous: pos-

sible

a) Option

PCB Conveyor

SIPLACE PCB Barcode for Product-Controlled

Production (Option)

Label dimensions Stroke width (W): 0.19 < W ≤ 0.3 mm (corresponds to high and medium

density), stroke length: ≥ 4 mm, length of the barcode template win-

dow: ≤ 90 mm

Recommended

label colors

Coding: black, dark green, dark blue, background: white, beige, yellow,

orange (contrast ratio > 70% to DIN 66236

Code types Code 39, Code 128 / EAN 128, Codabar, 2/5 IATA 2/5 industrial, 2/5

interleaved, UPC, EAN, Pharma Code, EAN Addendum (others available

on request), max. 25 digits, a barcode filter may be defined

Laser scanner

safety

Laser diode 670 nm (red) / 1.2 mW

Laser protection class 2, degree of protection IP65

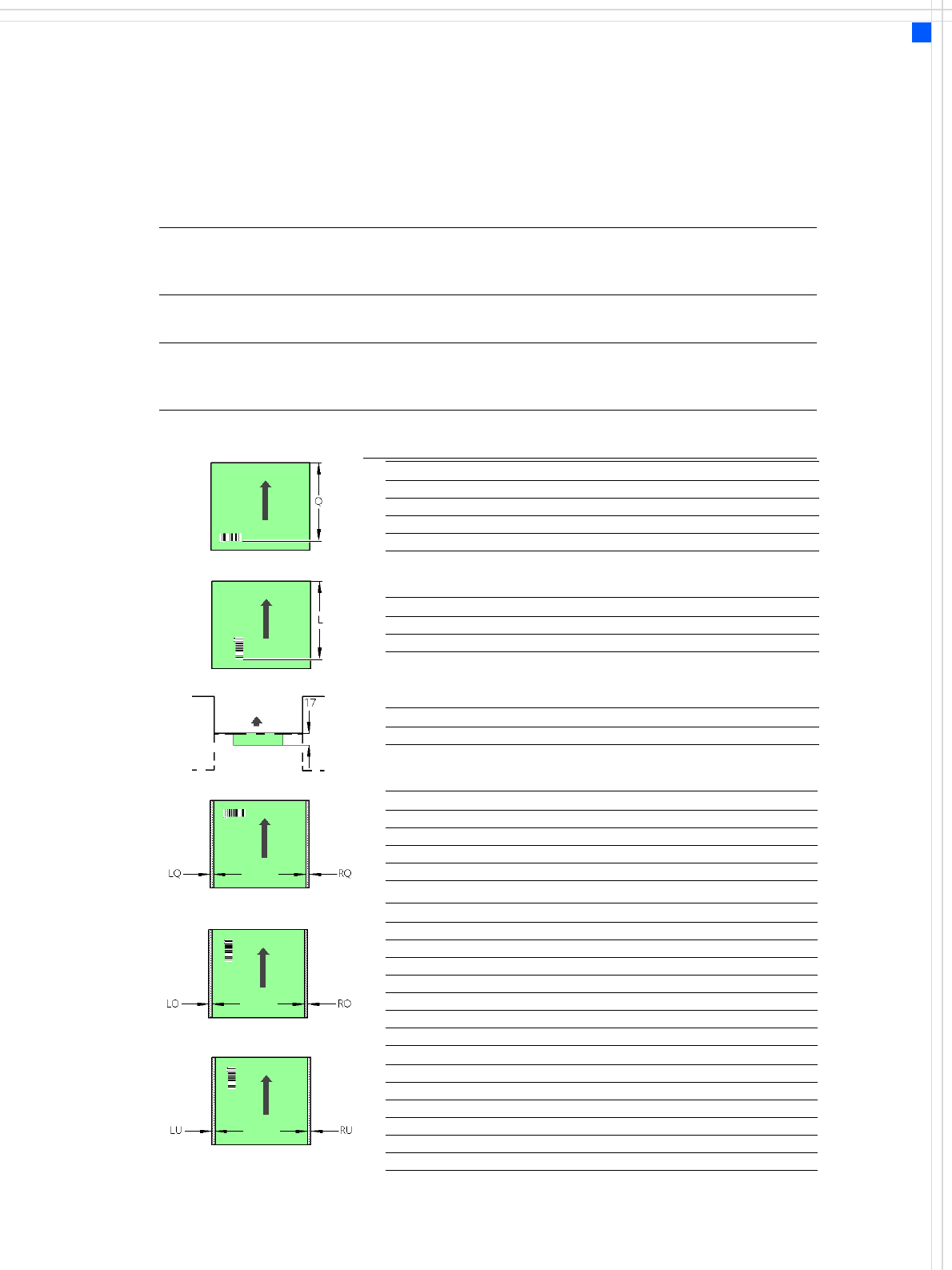

PCB barcode reader Q [mm]

2D on top 390

1D on top 390

2D on bottom 430

1D on bottom 430

PCB barcode reader L [mm]

1D on top 320 - 350

1D on bottom 380 - 410

PCB barcode reader PCB rear projection [mm]

2D on bottom (dual conveyor) 17

PCB barcode reader LQ [mm] RQ [mm]

2D on top 3 3

1D on top 3 3

2D on bottom 5 5

1D on bottom 5 5

PCB dimensions/conveyor LO [mm] RO [mm]

460 mm SC 3 20

508 mm SC 3 44

216 mm DC1 3 24

242 mm DC1, 380 mm SM1 3 58

216 mm DC2 3 3

242 mm DC2, 380 mm SM2 3 3

PCB dimensions/conveyor LU [mm] RU [mm]

460 mm SC 20 3

508 mm SC 44 3

216 mm DC1 3 3

242 mm DC1, 380 mm SM1 3 3

216 mm DC2 24 3

242 mm DC2, 380 mm SM2 58 3

SC - Single conveyor, DC1/2 - Dual conveyor, track 1/2, SM1/2 - Dual conveyor in Single conveyor mode, track 1/2

Downstream

machine

Upstream

machine

PCB

PCB barcode scanner 1D on top

PCB barcode scanner 1D on bottom
