PCB Conveyor
Flexible Dual Conveyor
Technical Data
Fixed conveyor side Right or left
PCB format
Standard (length x width)
Wide board configuration
Long board option
Long board option in Wide board
configuration
Dual conveyor in Single conveyor mode
standard
Long board option
50 x 50 mm² to 368 x 216 mm²
50 x 50 mm² to 368 x 242 mm²
50 x 110 mm² to 610 x 216 mm²
50 x 110 mm² to 610 x 242 mm²
50 x 50 mm² to 368 x 380 mm²
50 x 110 mm² to 610 x 380 mm²
PCB thickness
Standard 0.3 mm to 4.5 mm (± 0.2 mm)
(thicker PCBs on request)
Max. PCB warpage
(pass-through height)
up: 4.5 mm - PCB thickness
down: 0.5 mm + PCB thickness
PCB weight max. 3 kg
Clearance on PCB underside
Standard
Option
25 mm ± 0.2 mm
max. 40 mm ± 0.2 mm
PCB transport height 830mm ± 15mm (standard)
900mm ± 15mm (optional)
930mm ± 15mm (optional)
950mm ± 15mm (SMEMA: optional)
Type of interface SIEMENS / SMEMA
a
Component-free PCB handling edge 3 mm
PCB changeover time 2.5 s
PCB positioning accuracy ± 0.5 mm
Conveyor mode synchronous or asynchronous
Components on each conveyor same or different
PCB width on each conveyor same or different
Bad fiducial detection synchronous: not possible, asynchronous:
possible
Automatic width adjustment synchronous: possible, asynchronous: pos-
sible
a) Option
15
PCB Conveyor
SIPLACE PCB Barcode for Product-Controlled
Production (Option)
Label dimensions Stroke width (W): 0.19 < W ≤ 0.3 mm (corresponds to high and medium
density), stroke length: ≥ 4 mm, length of the barcode template win-
dow: ≤ 90 mm
Recommended
label colors
Coding: black, dark green, dark blue, background: white, beige, yellow,
orange (contrast ratio > 70% to DIN 66236
Code types Code 39, Code 128 / EAN 128, Codabar, 2/5 IATA 2/5 industrial, 2/5
interleaved, UPC, EAN, Pharma Code, EAN Addendum (others available
on request), max. 25 digits, a barcode filter may be defined
Laser scanner
safety
Laser diode 670 nm (red) / 1.2 mW
Laser protection class 2, degree of protection IP65
PCB barcode reader Q [mm]
2D on top 390
1D on top 390
2D on bottom 430
1D on bottom 430
PCB barcode reader L [mm]
1D on top 320 - 350
1D on bottom 380 - 410
PCB barcode reader PCB rear projection [mm]
2D on bottom (dual conveyor) 17
PCB barcode reader LQ [mm] RQ [mm]
2D on top 3 3
1D on top 3 3
2D on bottom 5 5
1D on bottom 5 5
PCB dimensions/conveyor LO [mm] RO [mm]
460 mm SC 3 20
508 mm SC 3 44
216 mm DC1 3 24
242 mm DC1, 380 mm SM1 3 58
216 mm DC2 3 3
242 mm DC2, 380 mm SM2 3 3
PCB dimensions/conveyor LU [mm] RU [mm]
460 mm SC 20 3
508 mm SC 44 3
216 mm DC1 3 3
242 mm DC1, 380 mm SM1 3 3
216 mm DC2 24 3
242 mm DC2, 380 mm SM2 58 3
SC - Single conveyor, DC1/2 - Dual conveyor, track 1/2, SM1/2 - Dual conveyor in Single conveyor mode, track 1/2
Downstream
machine
Upstream
machine
PCB
PCB barcode scanner 1D on top
PCB barcode scanner 1D on bottom
16
Component Feeding
SIPLACE D4 Component Changeover Table
Description
The component changeover
tables are stand-alone mod-
ules that can be set up at an
external set-up area with
feeder modules. Up to four
component changeover
tables may be docked in the
machine. A component
changeover table can be re-
placed with just a short inter-
ruption of the production
process.
The chassis runs smoothly
and is easy to maneuver. The
component table has a
capacity of up to 12 locations
for 3 x 8 mm S tape feeder
modules. The total capacity
with four component
changeover tables is thus
144 x 8 mm tracks. Bulk case
feeder modules, linear vibra-
tory feeders, dipflux mod-
ules, component disposal
modules and waffle-pack tray
holders can all be set up in
addition to the tape feeder
modules. Dummy feeder
modules are used at un-
assigned locations to protect
the operators. The compo-
nent feeders are at rest dur-
ing the placement process -
allowing tapes to be spliced
without stopping the
machine.

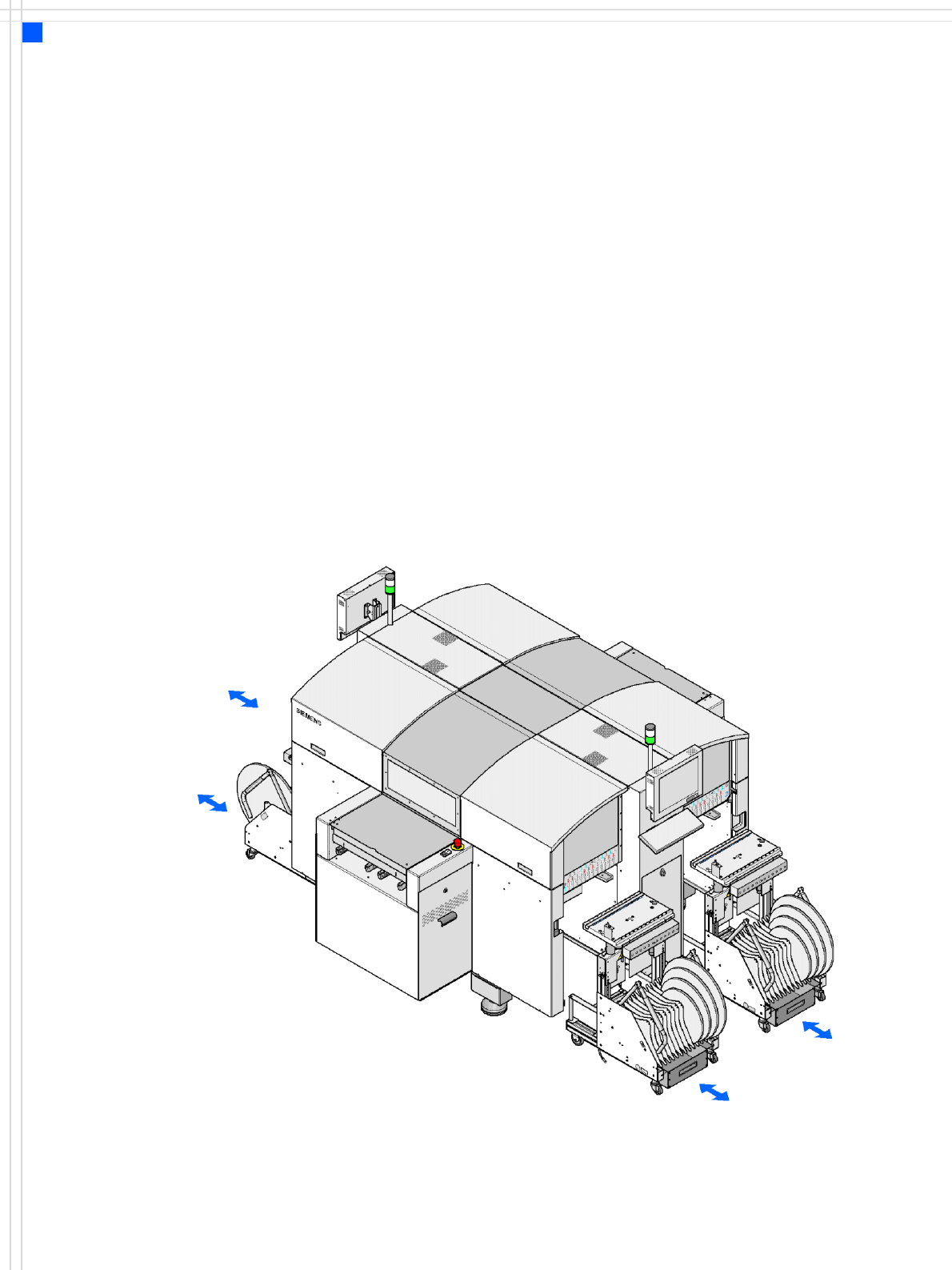

Location 1
Location 3
Location 2
Location 4
