34 Technical Data Transport and Delivery Configura tion Engagement point for the fork-lift Engagement point for the fork-lift Description The machi ne and the c ompo- nent c hangeove r table wil l be supplied on two pall…
33
Technical Data
Dimensions and Set-Up Conditions
Spacing Distances for Dual Conveyor
Stationary conveyor
side left
Stationary conveyor
side right
34
Technical Data
Transport and Delivery Configuration
Engagement point
for the fork-lift
Engagement point
for the fork-lift
Description
The machine and the compo-
nent changeover table will be
supplied on two pallets on
mainland Europe. They will
be dispatched overseas in
two robust wooden crates.
Configuration when deliv-
ered
• Both keyboards and the
monitors are disconnect-
ed.
• Both main fault indicators
are disconnected.
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Fork length
Lifting power
Clear fork width
min. 2500 mm
min. 6000 kg
min. 350 mm
Transport dimensions and weight
Crate for the machine Crate for the CO changeover table
Length
Width
Height
2590 mm
2410 mm
1610 mm
1705 mm
1200 mm
1300 mm
Weight Dispatch within Europe Dispatch overseas
Placement machine 3326 kg 3594 kg
CO changeover table 462 kg 556 kg
35

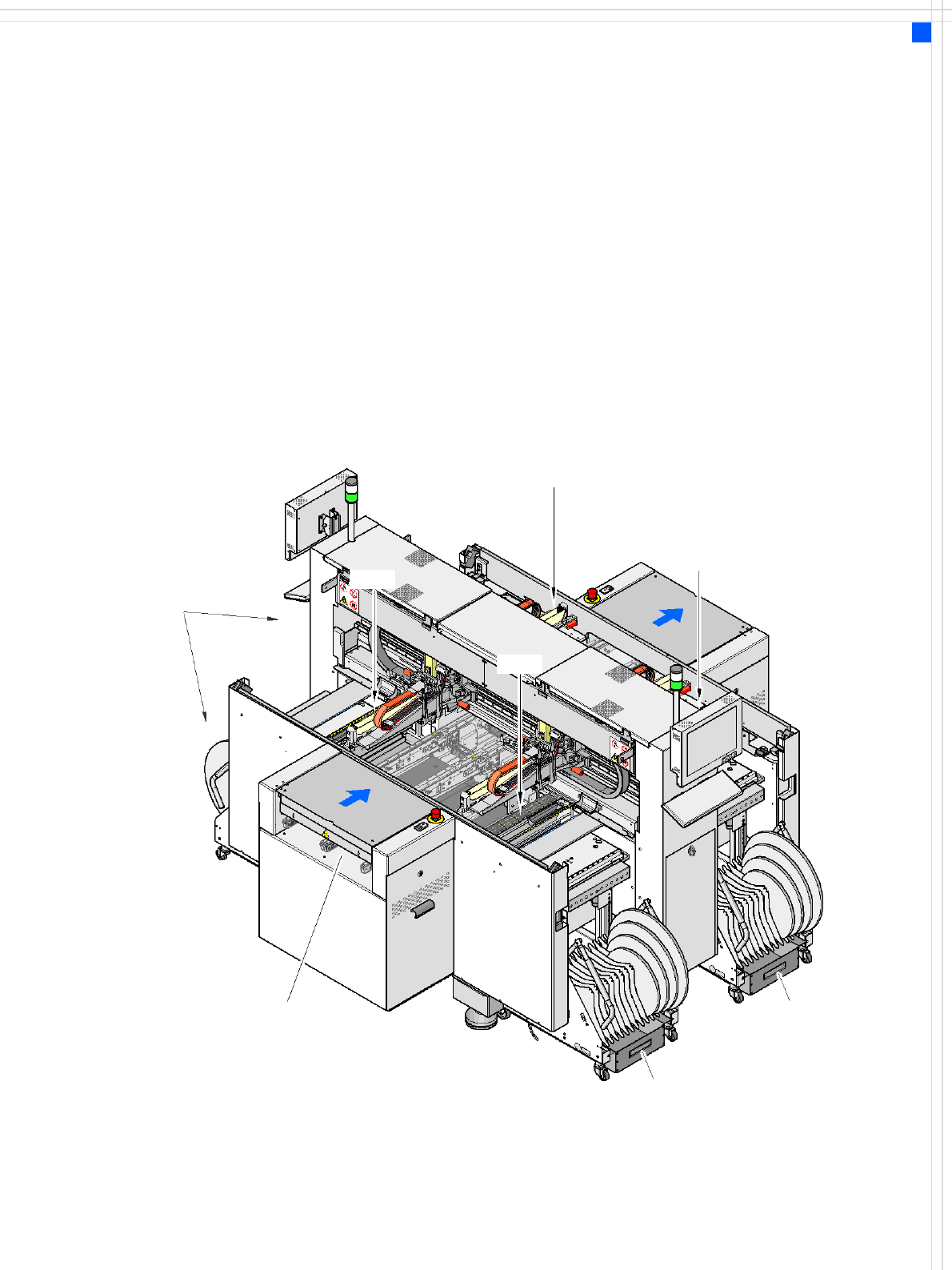

Sample Configuration
Services
As a service, SIEMENS A&D
EA can fully integrate the
SIPLACE D4 placement
machine into your produc-
tion line. With our extensive
expertise and by using the
right tools and equipment,
we can ensure that the instal-
lation process runs smoothly
and efficiently. However, this
will require you to clarify the
infrastructure aspects in ad-
vance and make any neces-
sary changes at your
production facility.
Safety instructions
Read the operating instruc-
tions before starting to set up
and commission the place-
ment machine. The appli-
cable accident prevention
regulations concerning the
transportation of heavy
goods must be followed.
SIPLACE D4 CO changeover table
with 12 locations
5-part conveyor belt
with automatic width adjustment
from 50 mm to 508 mm (2“ to 20“)
SIPLACE D4 CO changeover table
with 12 locations
NC12
NC12
NC12
SIPLACE D4 CO
changeover table
with 12 locations
NC12
