29 Technical Data Electrical Connection, Interfaces and Com- pressed Air Connect ion Com press ed air connec tion SMEMA / SIEM ENS interface PC and LAN connec tion Power connec tor 5 x 6 mm² cable with CEKON plug 5 x 32 …
28
Technical Data
Electrical Ratings and
Compressed Air Supply
Electrical ratings
Supply voltage 3 x 208 VAC ± 5 %, 50/60 Hz (U.S.A. version)
3 x 230 VAC ± 5 %;50/60 Hz
3 x 380 VAC ± 5 %;50/60 Hz
3 x 400 VAC ± 5 %, 50/60 Hz (European version)
3 x 415 VAC ± 5 %;50/60 Hz
Fuses 3 x 32 A (3 x 208 VAC / 3 x 230 VAC)
3 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
Nominal apparent power 3.3 kVA
Rated current consumption 8.2 A / 3 x 400 VAC
Power failure max. 20 msec
Compressed air supply
Compressed air ratings
p
min
p
max
0.55 MPa = 5.5 bar
1.0 MPa = 10 bar
Compressed air connection 3/4" thread with 1/2" hose connection
Compressed air consumption with 4 tape
cutters and 4 placement heads
950 st. l/min
400 st. l/min with vacuum pump
Operating pressure 0.51 MPa ± 0.01 MPa (5.1 bar ± 0.1 bar)
Compressed air specification
Particle size 0.1 μm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint + 3°
29
Technical Data

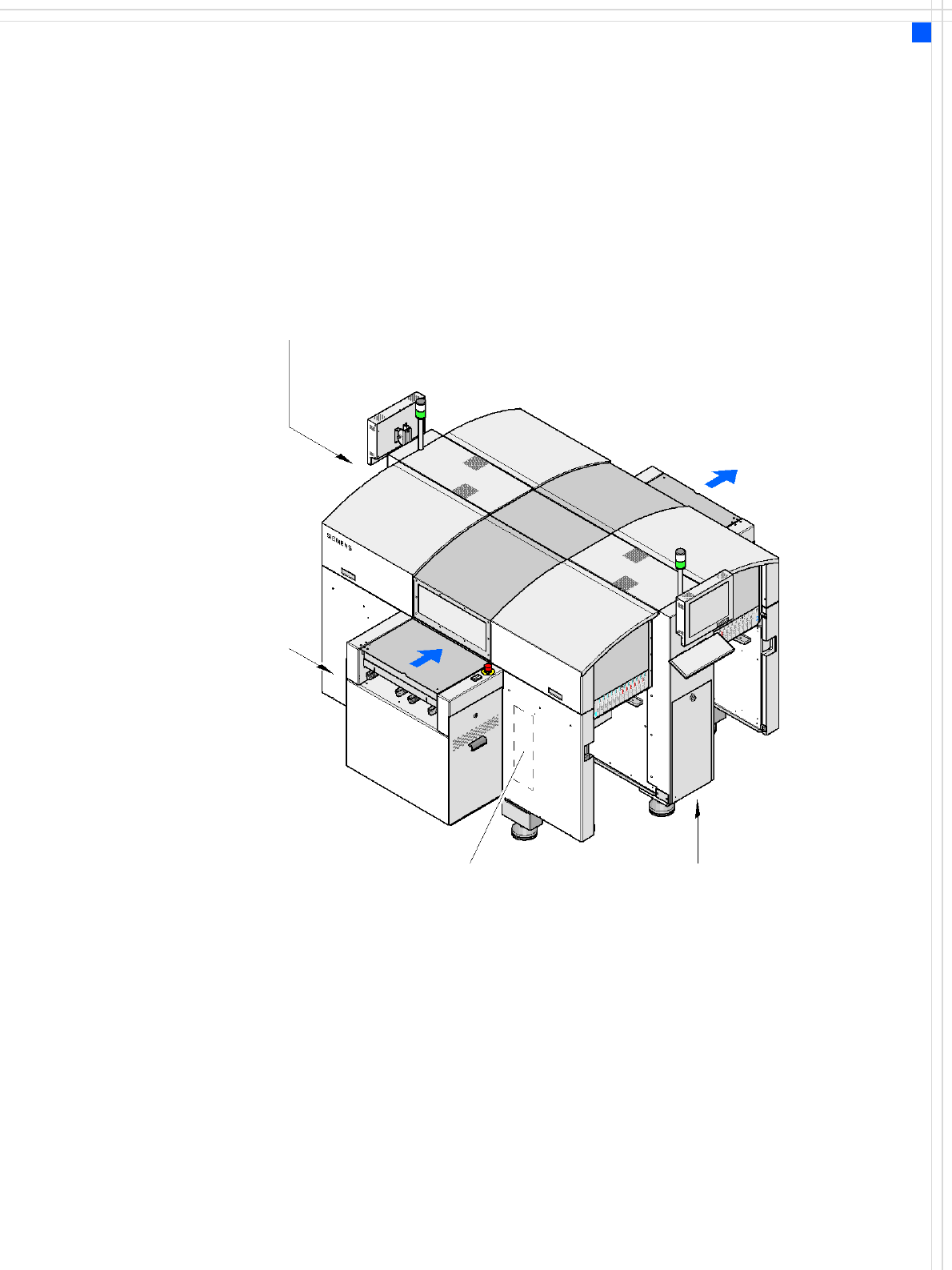

Electrical Connection, Interfaces and Com-
pressed Air Connection
Compressed air connection
SMEMA / SIEMENS interface
PC and LAN connection
Power connector 5 x 6 mm² cable with CEKON plug 5 x 32 A (3 x 208 VAC / 3 x 230 VAC)
5 x 4 mm² cable with CEKON plug 5 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
30
Technical Data
Dimensions and Set-up Conditions
Length
with both extension kits
with one extension kit
with no extension kits
2380 mm
1960 mm
1540 mm
Width of the basic machine
with component changeover tables
incl. monitors
with keyboards
2416 mm
2466 mm
2491 mm
Height of the machine
with warning lamp
with protective covers folded up
max. 1810 mm
1901 mm (PCB conveyor height 830 mm)
1971 mm (PCB conveyor height 900 mm)
2001 mm (PCB conveyor height 930 mm)
2021 mm (PCB conveyor height 950 mm)
Machine ground clearance 112 mm (PCB conveyor height 830 mm)
182 mm (PCB conveyor height 900 mm)
212 mm (PCB conveyor height 930 mm)
232 mm (PCB conveyor height 950 mm)
Weight
Basic machine with 4 component changeover
tables
Full configuration with feeder modules
3419 kg
3850 kg
Footprint 5.93 m²
Load per unit area
a
5.9 kN/m²
Number of machine feet 6
Maximum noise emissions 74 dB (A)
Room temperature between 15 °C and 35 °C
Atmospheric humidity 30 to 75 % (no higher than 45% on average
to prevent any possibility of condensation
on the machine)
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine. Further data available on request.
