33 Technical Data Dimensions and Set-Up Conditions Spacing Distances for Du al Conveyor Stat ionar y conveyo r side left Stat ionar y conveyo r side right
32
Technical Data
Dimensions and Set-Up Conditions
Spacing Distances for Single Conveyor
Stationary conveyor
side left
Stationary conveyor
side right
33
Technical Data
Dimensions and Set-Up Conditions
Spacing Distances for Dual Conveyor
Stationary conveyor
side left
Stationary conveyor
side right
34
Technical Data
Transport and Delivery Configuration

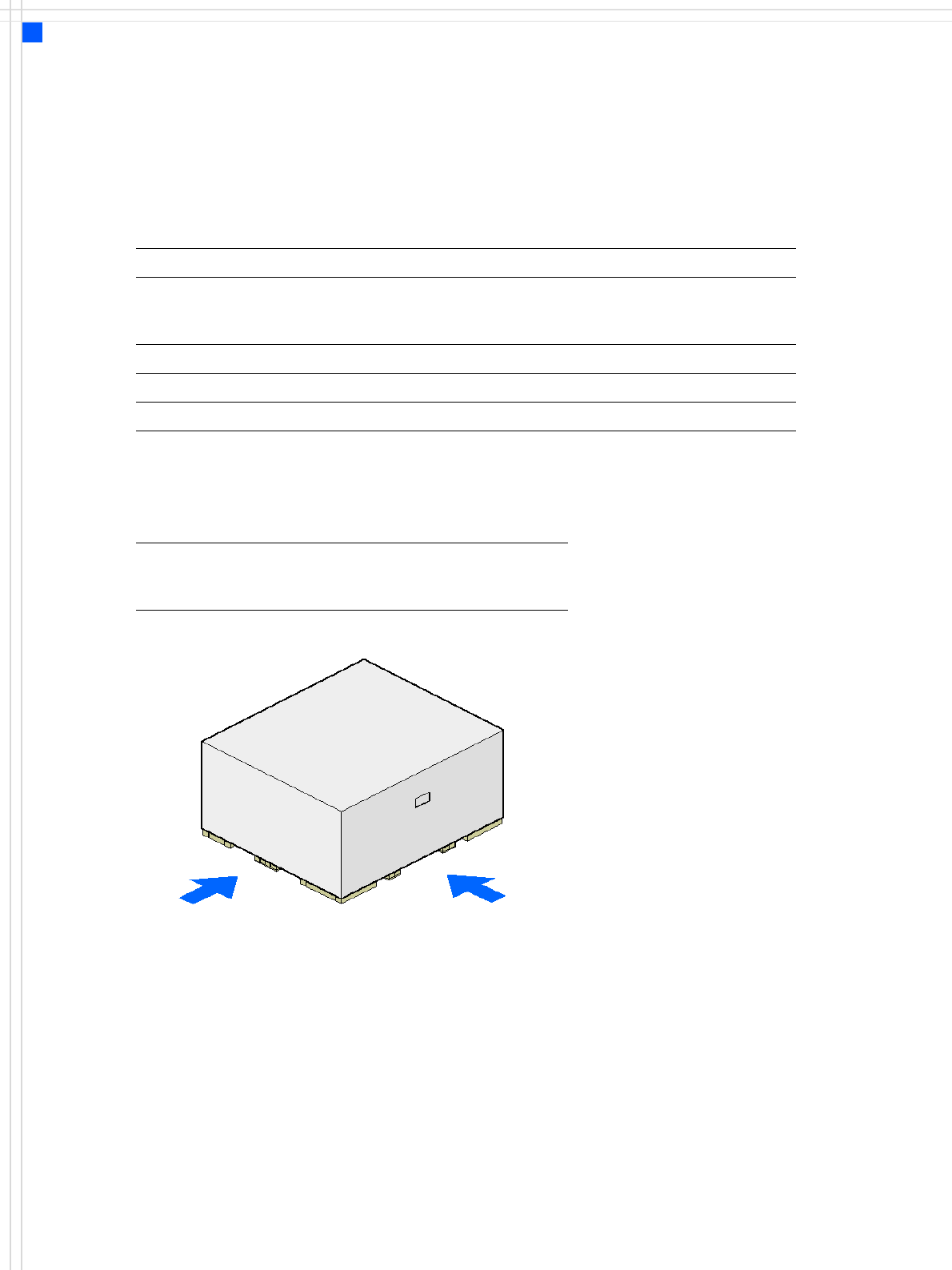

Engagement point
for the fork-lift
Engagement point
for the fork-lift
Description
The machine and the compo-
nent changeover table will be
supplied on two pallets on
mainland Europe. They will
be dispatched overseas in
two robust wooden crates.
Configuration when deliv-
ered
• Both keyboards and the
monitors are disconnect-
ed.
• Both main fault indicators
are disconnected.
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Fork length
Lifting power
Clear fork width
min. 2500 mm
min. 6000 kg
min. 350 mm
Transport dimensions and weight
Crate for the machine Crate for the CO changeover table
Length
Width
Height
2590 mm
2410 mm
1610 mm
1705 mm
1200 mm
1300 mm
Weight Dispatch within Europe Dispatch overseas
Placement machine 3326 kg 3594 kg
CO changeover table 462 kg 556 kg
